Secondary Fluid Pump Filter Replacement M33 Model Only

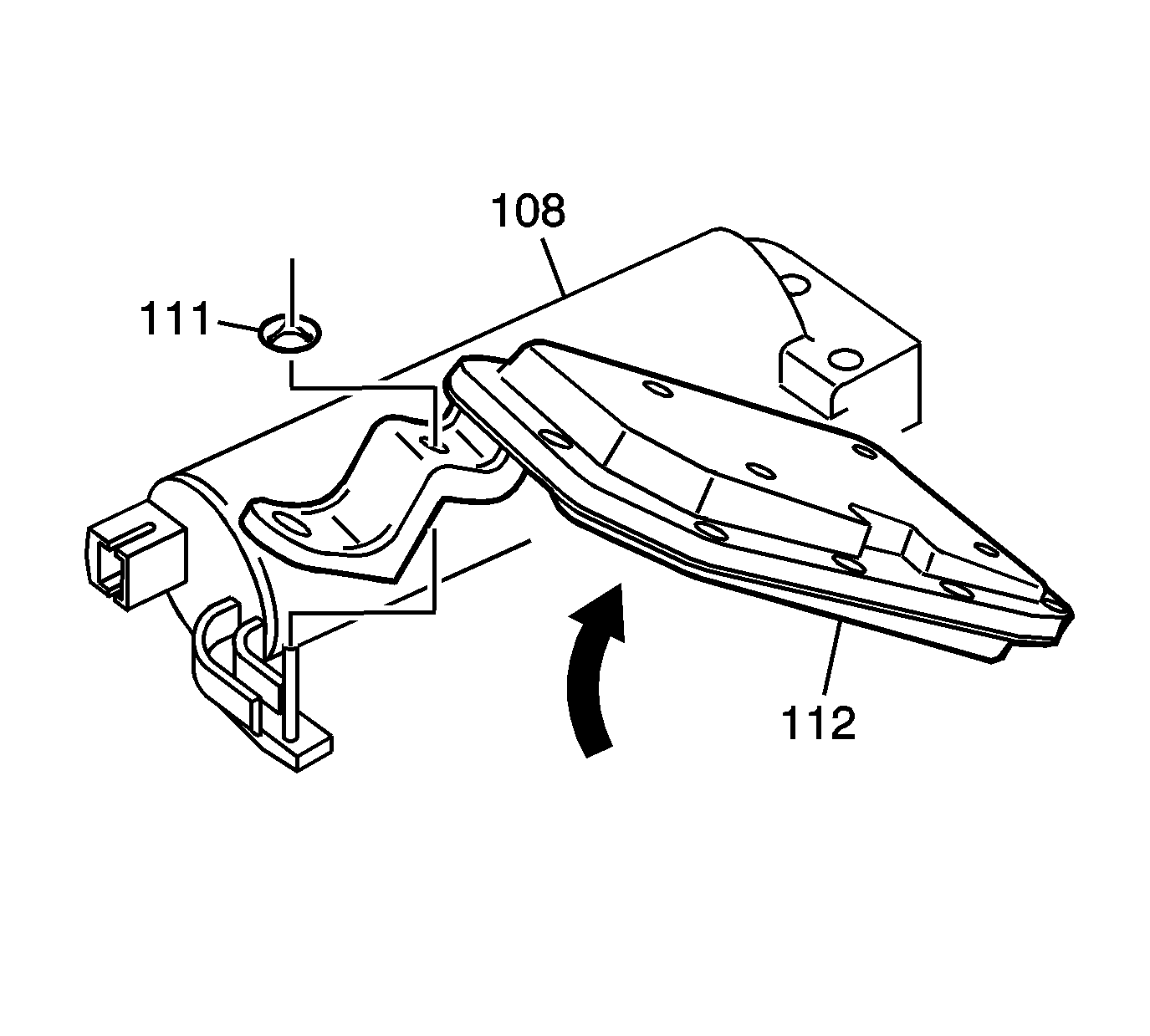

    Object Number: 1220986 Size: SH
  1. Remove the secondary fluid pump assembly (108). Refer to Secondary Fluid Pump Assembly Removal .
  2. Remove the filter retainer (111) from the secondary fluid pump assembly (108).
  3. Rotate filter (112) upward and separate from the pump.
  4. Install a new filter (112) and rotate filter downward.
  5. Install a new filter retainer (111).
  6. Install the secondary fluid pump assembly (108). Refer to Secondary Fluid Pump Assembly Installation .
