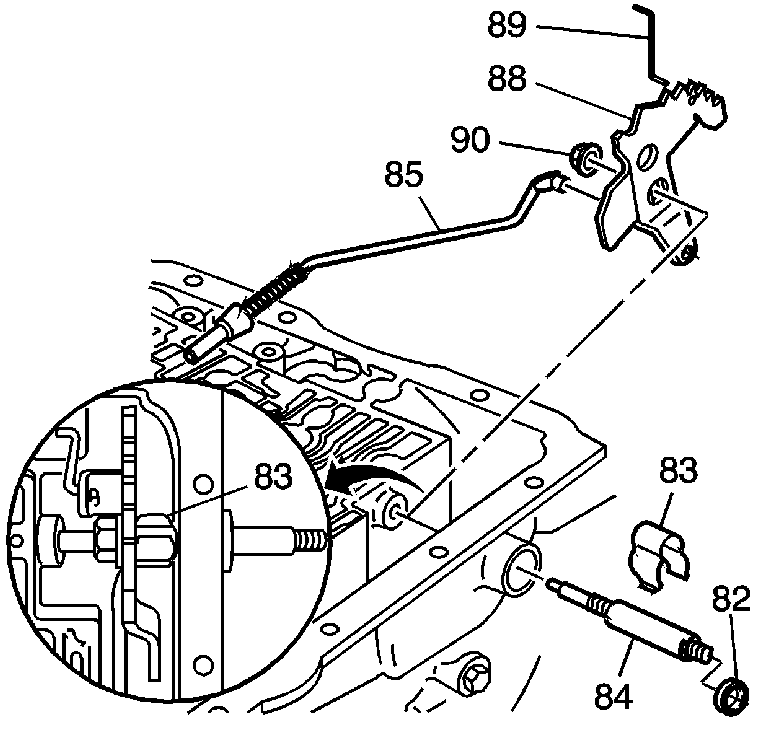

    Object Number: 880293 Size: SH
  1. Remove the following parts:
    2. 1.1. Hex head nut (90)
    1.2. Manual valve link (89)
    1.3. Detent lever (88)
    1.4. Parking lock actuator assembly (85)
    1.5. Manual shaft retainer (83)
    1.6. Manual shaft (84)

    Object Number: 59273 Size: SH
  2. Remove the manual shaft seal (82) with a screwdriver.

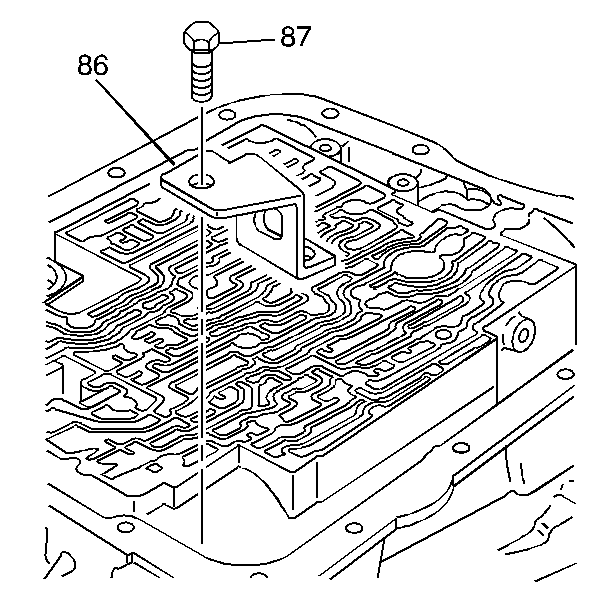

    3. Object Number: 284393 Size: SH
  3. Remove the following components:
    4. 3.1. The parking lock bracket bolt (87)
    3.2. The parking lock bracket (86)
