Makes 🢒 Chevrolet 🢒 2004 🢒 Tahoe - 4WD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E/4L65-E 🢒 Low and Reverse Clutch Piston Removal

Tools Required

    • J 23327-1 Forward Clutch Spring Compressor (Bridge)
    • J 34627 Snap Ring Remover and Installer
    • J-42628 Plate

    Object Number: 190454 Size: SH
  1. Install the J 23327-1 and the J-42628 .

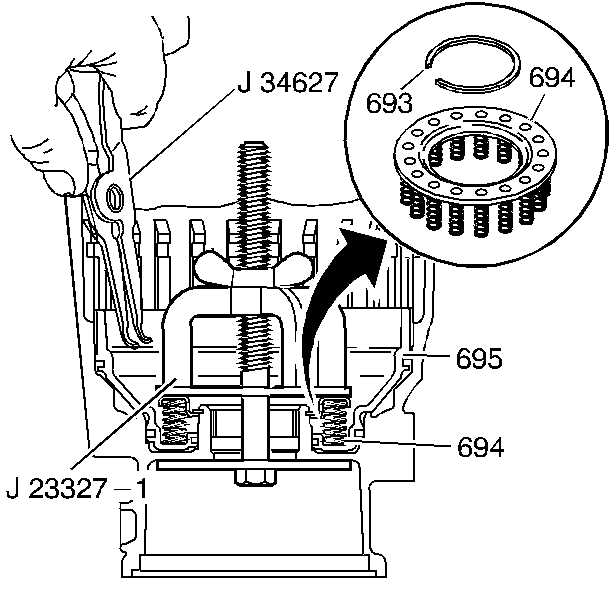

    2. Object Number: 59269 Size: SH
  2. Tighten the J 23327-1 .
  3. Remove the low and reverse clutch retainer ring (693) using the J 34627 .
  4. Remove the low and reverse clutch spring assembly (694).

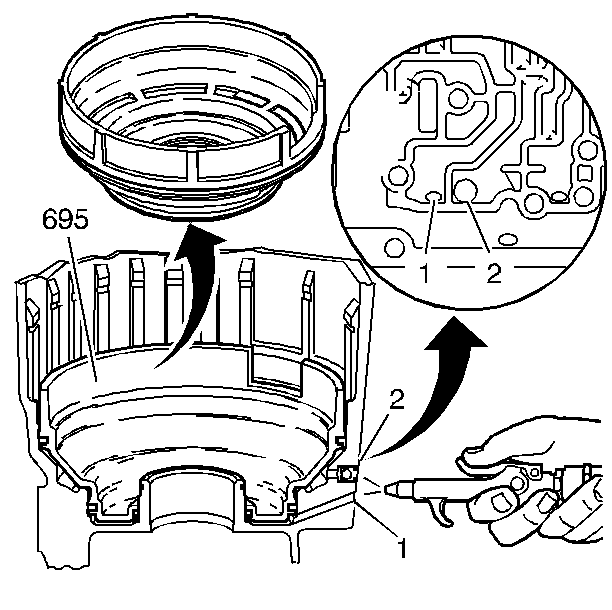

    5. Object Number: 4190 Size: SH
  5. Blow compressed air into the case passage to remove the low and reverse clutch piston (695).
    6. • (1) LO Feed Passage
    • (2) REV Feed Passage
