Case Extension Bushing Replacement 2WD Truck/Utility/Van Only

Special Tools

    • J 8092 Driver Handle
    • J 23062-14 Bushing Remover
    • J 34196-B Transmission Bushing Service Set

    Object Number: 207629 Size: SH
  1. Inspect the case extension for the following conditions:
    2. • Porosity
    • Cracks
    • Nicks
    • Burrs
    • Worn bushings

    Object Number: 207632 Size: SH

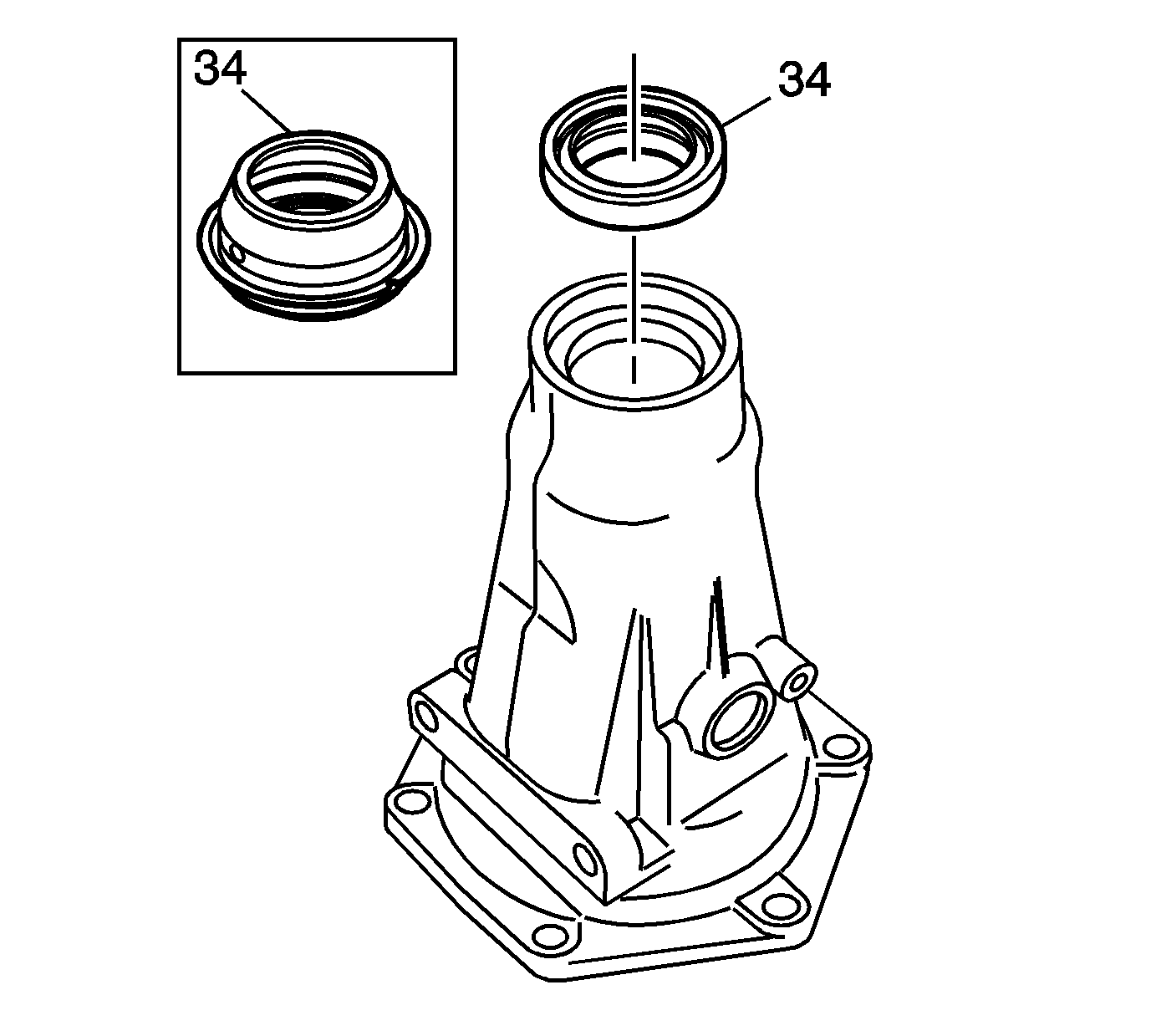

  2. Remove the case extension oil seal assembly (34) (model dependent).

    3. Object Number: 207633 Size: SH
  3. Using the J 23062-14 and the J 8092 , remove the case extension bushing (33).

    4. Object Number: 207635 Size: SH
  4. Using the J 34196-4 which is part of kit J 34196-B and the J 8092 , install a case extension bushing (33).
