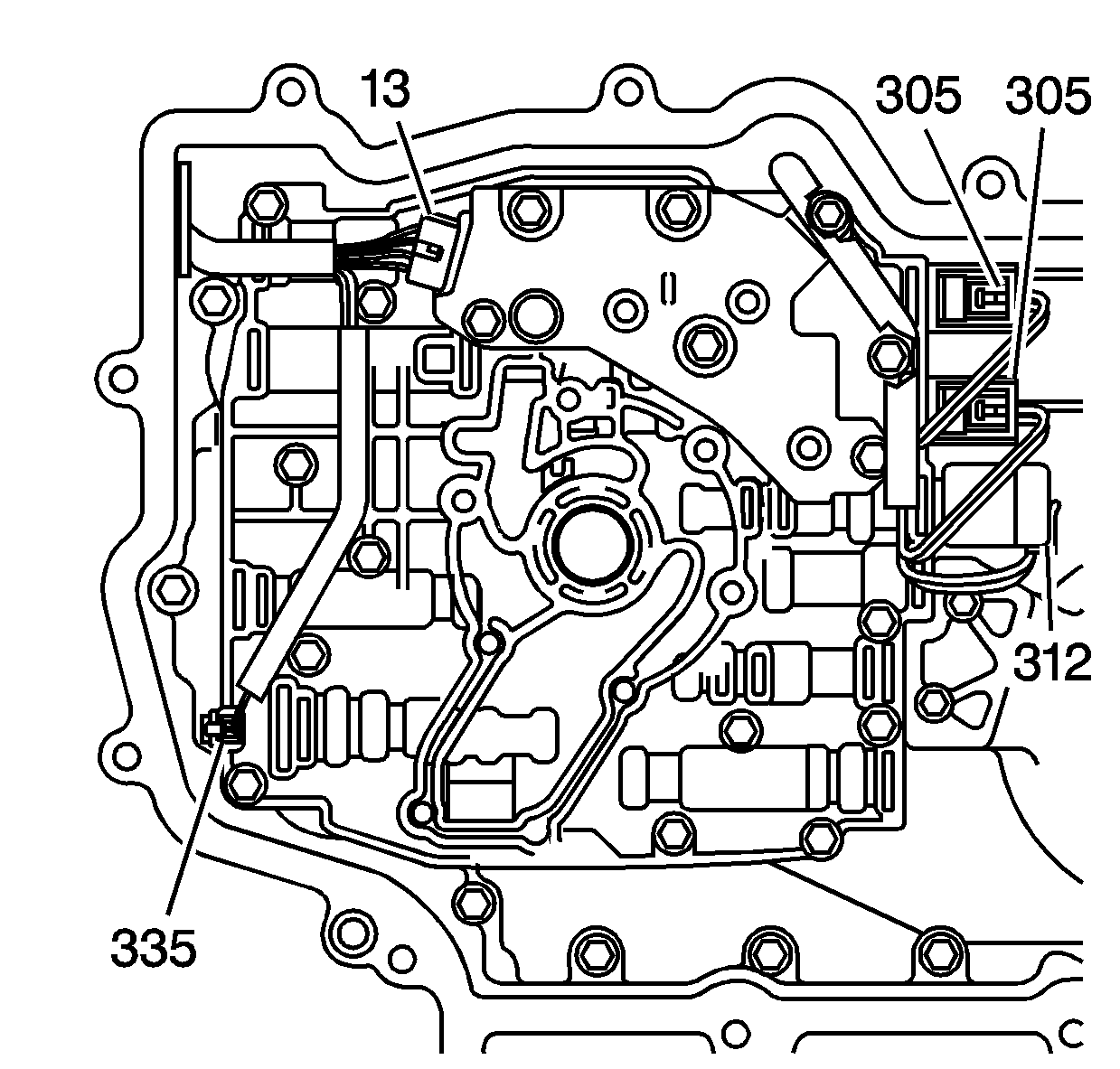

Connect the wiring harness assembly to the following components:
| • | The TFP switch assembly (13) |
| • | The pressure control solenoid (312) - red connector |
| Important: The 1-2 shift solenoids wires are red and light green. The 2-3 shift solenoid wires are red and yellow. |
| • | The 1-2 shift solenoid (305) - white connector |
| • | The 2-3 shift solenoids (305) - white connectors |
| • | The TCC solenoid (335) |
