Table 1: Generator (w/ SBA)
Table 2: Generator (w/o SBA)

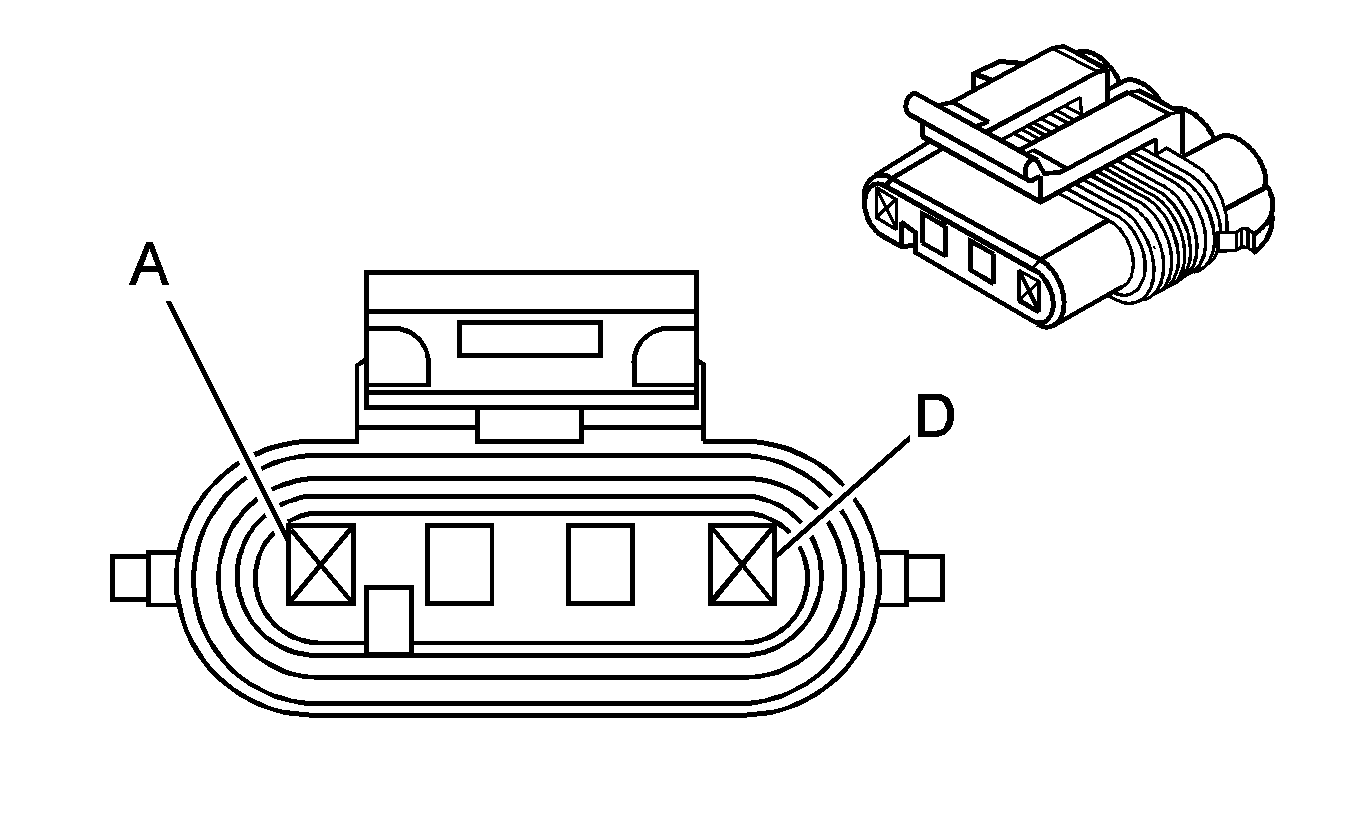

Generator (w/ SBA)


Object Number: 697046 Size: CH

Connector Part Information
    • 12186568
    • 4-Way F Metri-pack 150 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

5668

Engine On Signal

B

BRN

25

Charge Indicator Control

C

GRY

23

Generator Field Duty Cycle Signal

D

--

--

Not Used

Generator (w/o SBA)


Object Number: 647991 Size: CH

Connector Part Information
    • 15355066
    • 2-Way F Metri-pack 150 Series Sealed (BGE)

Pin

Wire Color

Circuit No.

Function

B

BRN

25

Charge Indicator Control

C

GRY

23

Generator Field Duty Cycle Signal
