Door Control Module Schematics. Chevrolet Tahoe - 2WD 2004

GM Service Manual Online

For 1990-2009 cars

Makes 🢒 Chevrolet 🢒 2004 🢒 Tahoe - 2WD 🢒 Accessories 🢒 Entertainment 🢒 Door Control Module Schematics

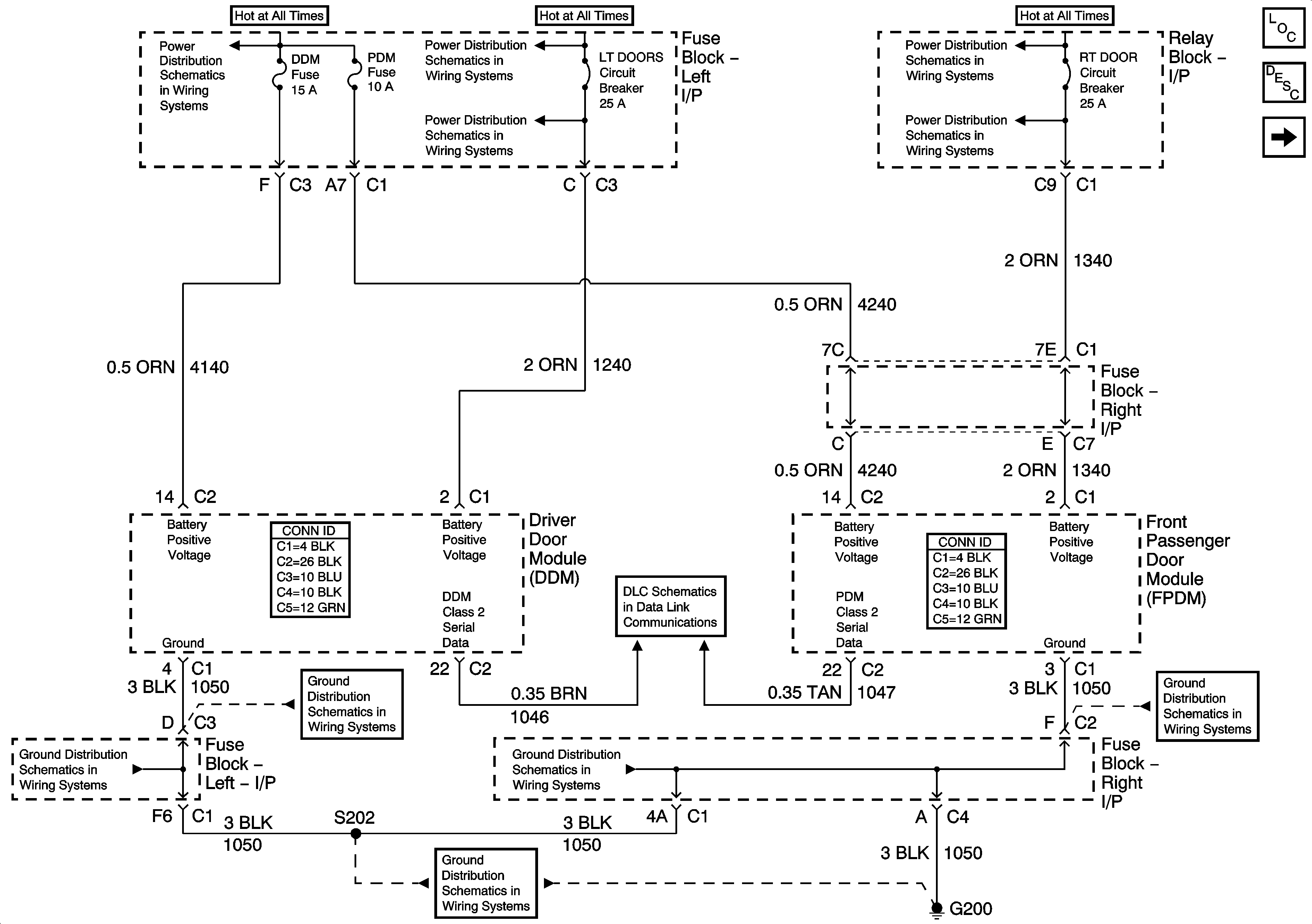

Figure 1:	Power, Ground and Serial Data Master Electrical Component List Door Ajar Indicator Description and Operation Driver Door Module References - 1 of 3 LBEC 1, LBEC 2, MBEC 1 Fuses TBC 2A, TBC 2B, TBC 2C, LT DOORS, RT DOOR, SEAT Fuses TBC 2A, TBC 2B, TBC 2C, LT DOORS, RT DOOR, SEAT Fuses TBC 2A, TBC 2B, TBC 2C, LT DOORS, RT DOOR, SEAT Fuses TBC 2A, TBC 2B, TBC 2C, LT DOORS, RT DOOR, SEAT Fuses SP205 - 1 of 2 G200 - 1 of 3 G200 - 3 of 3 G200 - 3 of 3 G200 - 1 of 3 G200 - 1 of 3

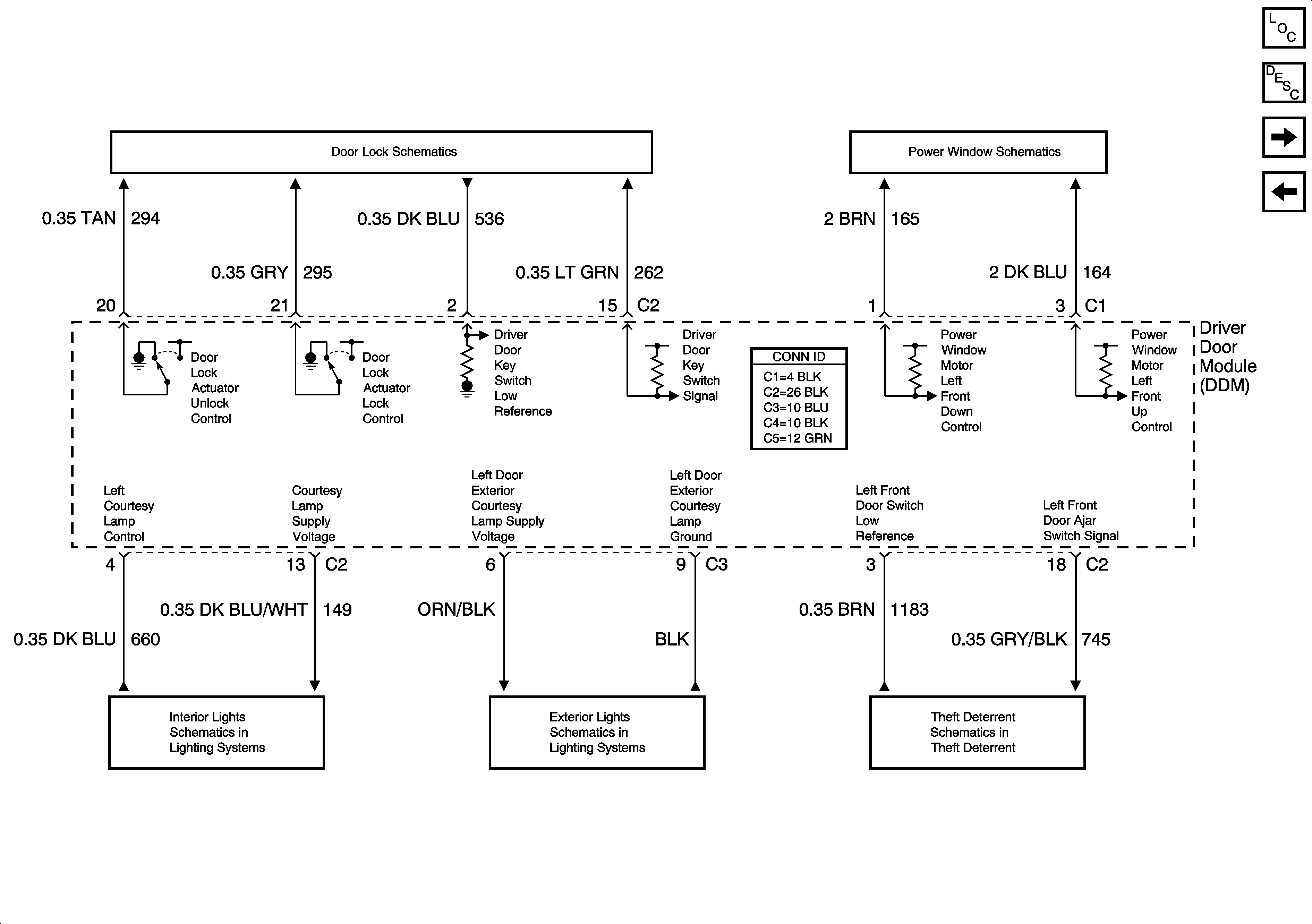

Figure 2:	Driver Door Module References - 1 of 3 Master Electrical Component List Door Ajar Indicator Description and Operation Driver Door Module References - 2 of 3 Power, Ground and Serial Data Driver and Front Passenger Left Doors Courtesy Lamp Supply Voltage - 2 of 4 Exterior Illumination Lamps Front Door Switches
Figure 3:	Driver Door Module References - 2 of 3 Master Electrical Component List Door Ajar Indicator Description and Operation Driver Door Module References - 3 of 3 Driver Door Module References - 1 of 3 Mirror Motors and Position Sensors - Driver

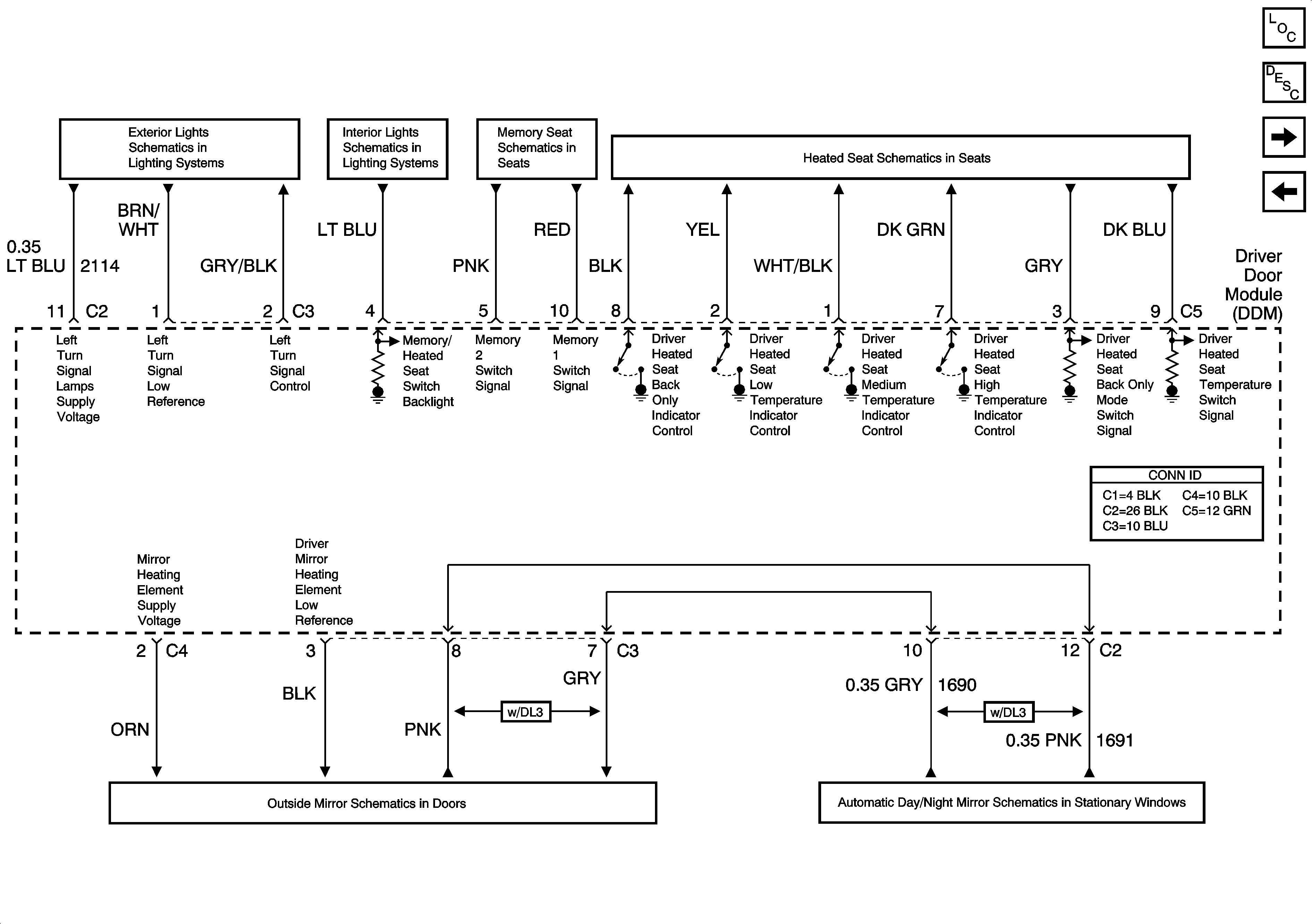

Figure 4:	Driver Door Module References - 3 of 3 Master Electrical Component List Door Ajar Indicator Description and Operation Front Passenger Door Module References - 1 of 2 Driver Door Module References - 2 of 3 Left Turn Signals - Domestic I/P Dimming Supply Voltage - 4 of 7 Power, Ground, Serial Data and Switch Signals - AN3 Heat Controls - AN3 Heated Mirror and Electrochromic Controls Ground and Electrochromic
Figure 5:	Front Passenger Door Module References - 1 of 2 Master Electrical Component List Door Ajar Indicator Description and Operation Front Passenger Door Module References - 2 of 2 Driver Door Module References - 3 of 3 Right Doors Courtesy Lamp Supply Voltage - 2 of 4 Right Turn Signals - Domestic Driver and Front Passenger Front Door Switches Exterior Illumination Lamps

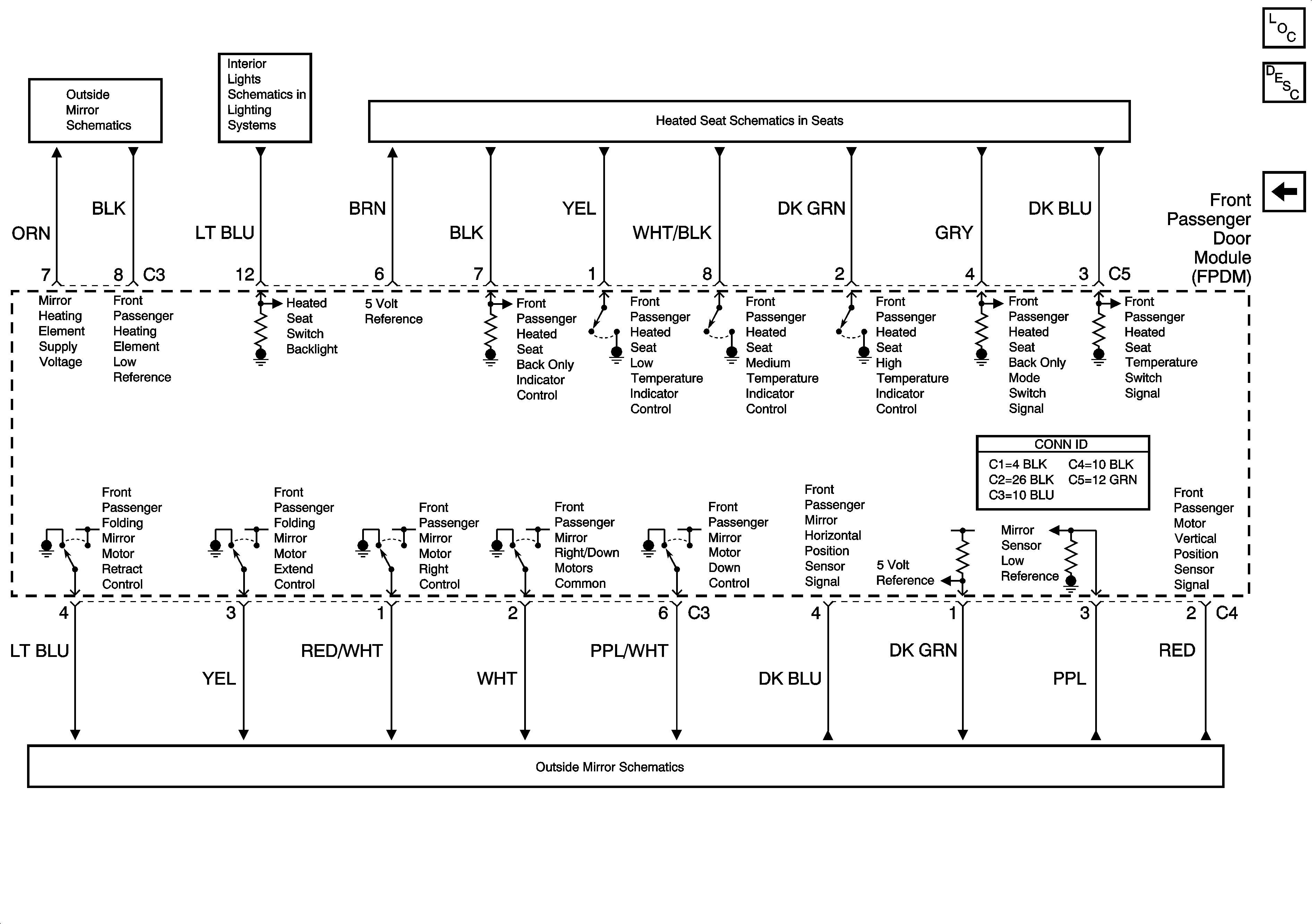

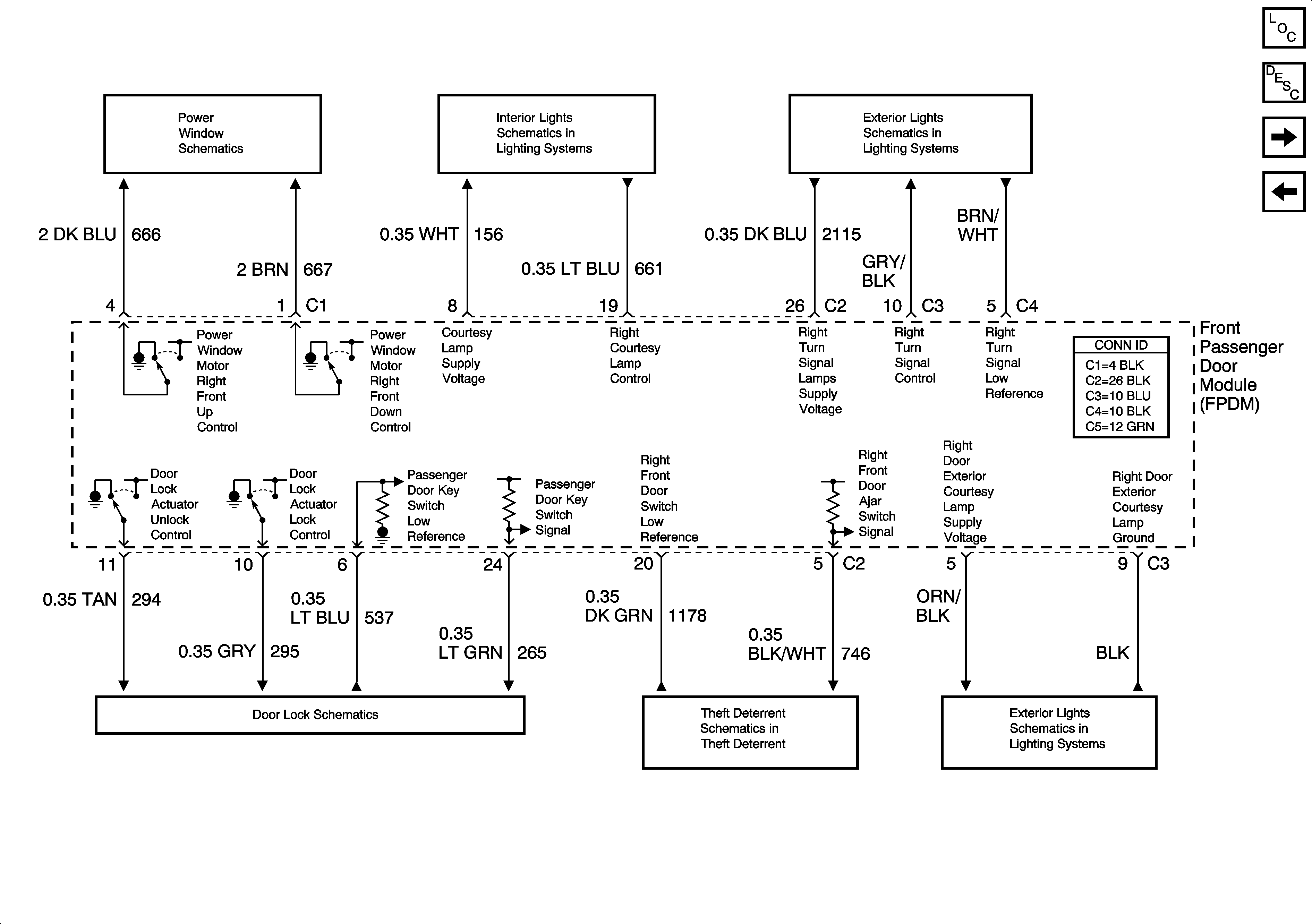

Figure 6:	Front Passenger Door Module References - 2 of 2 Master Electrical Component List Door Ajar Indicator Description and Operation Front Passenger Door Module References - 1 of 2 Heated Mirror and Electrochromic Controls Heat Controls - 1 of 2 - AN3 Heat Controls - 1 of 2 - AN3 Mirror Motors and Position Sensors - Front Passenger
