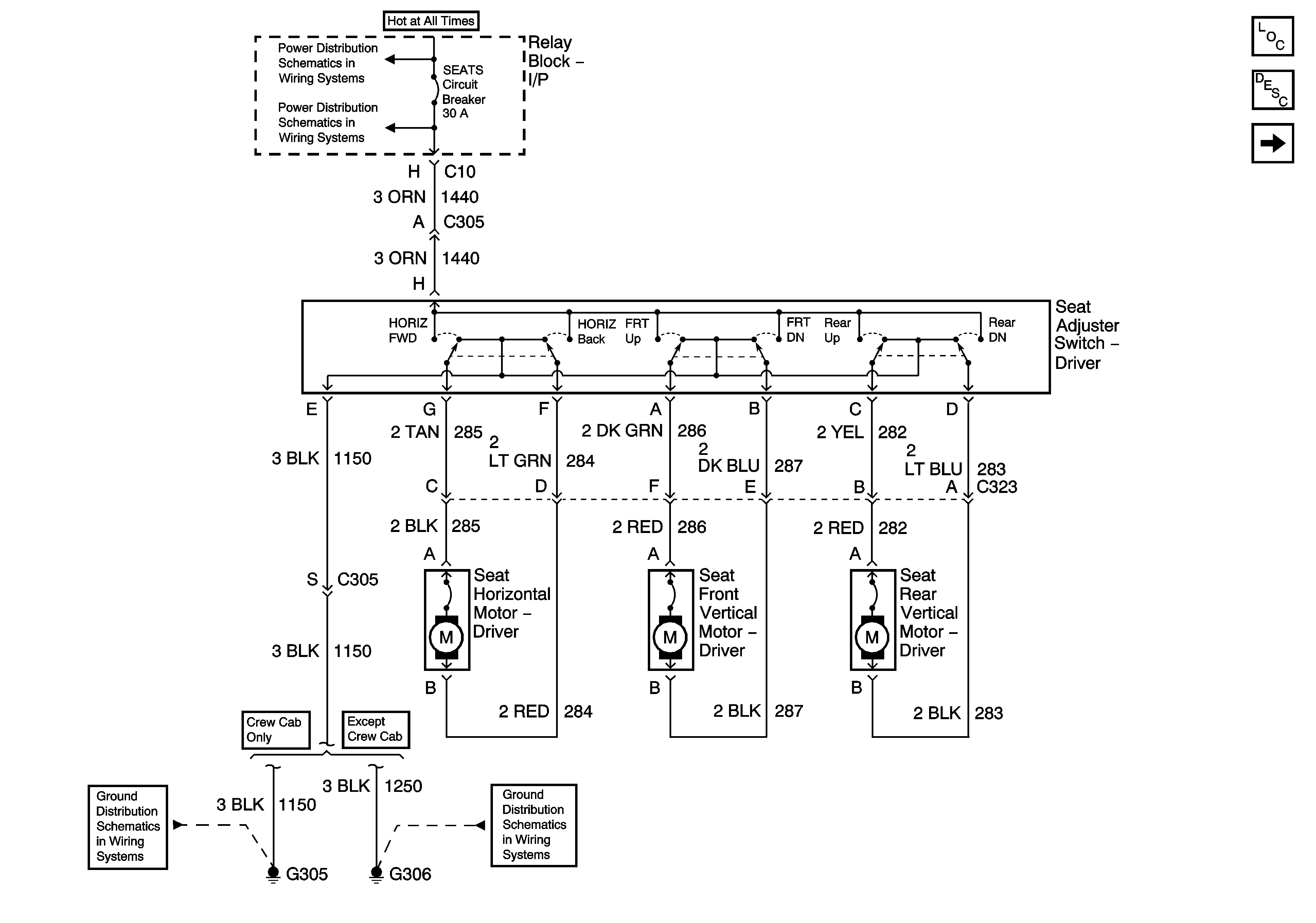

| Figure 1: |
AG2
|

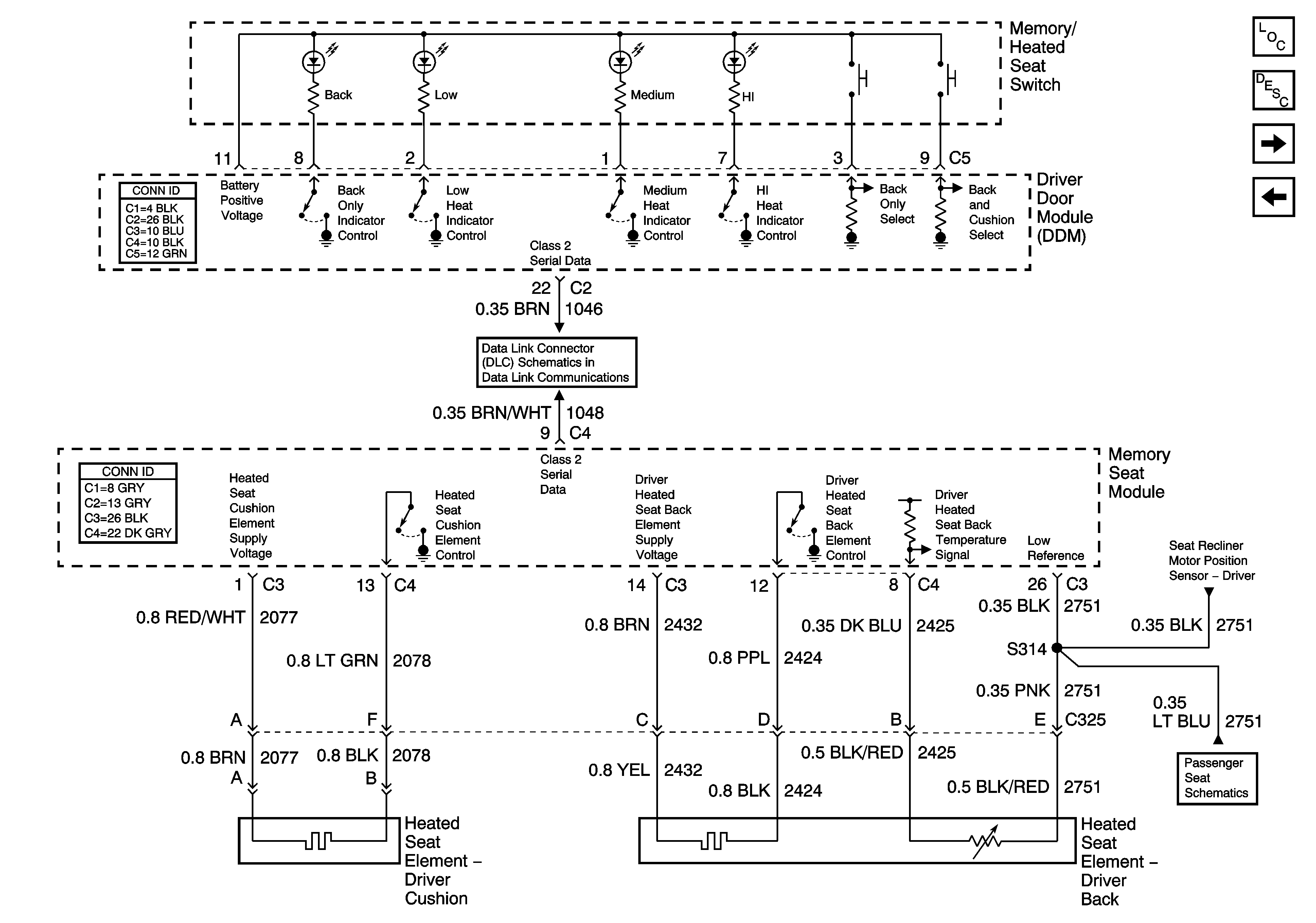

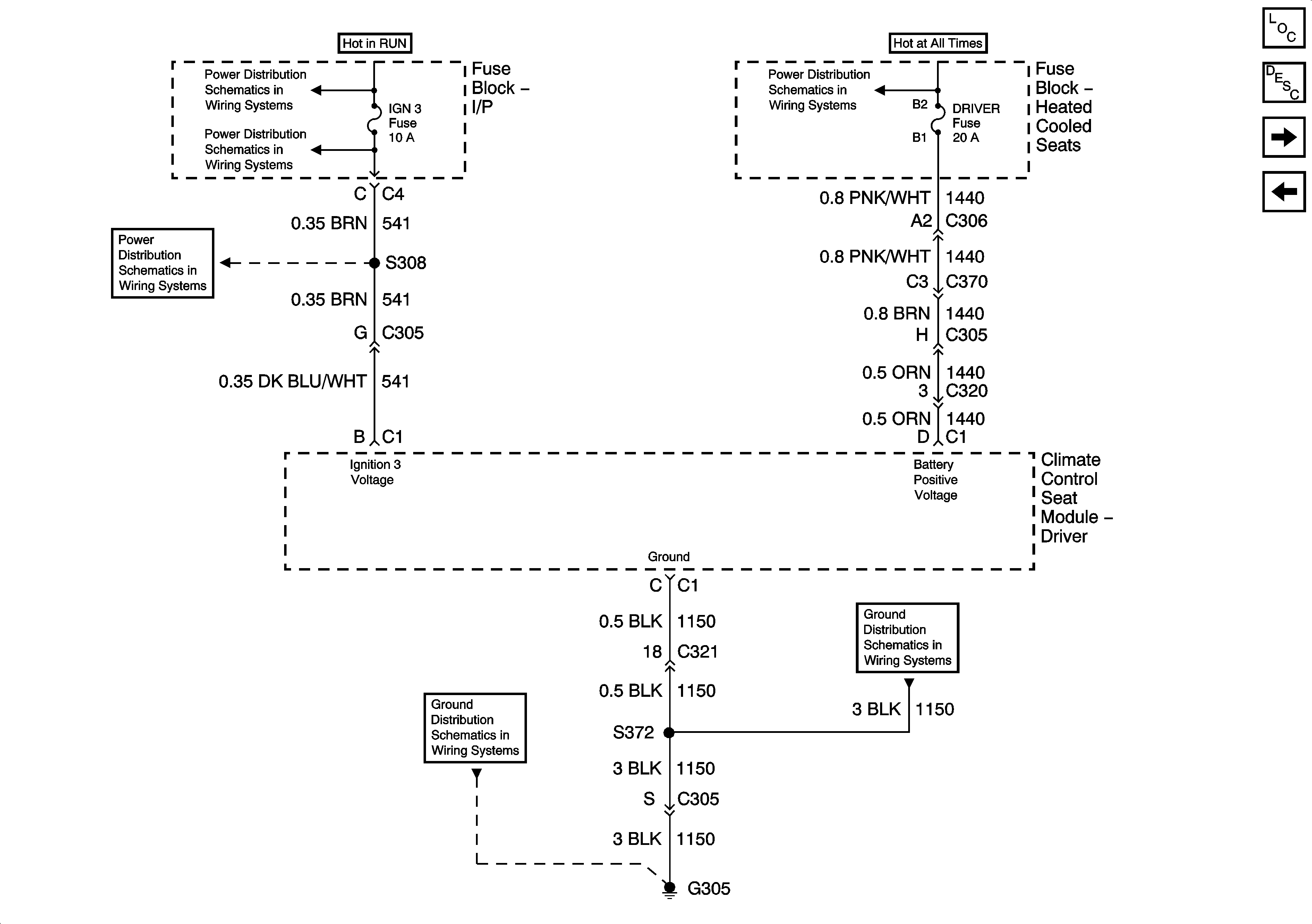

| Figure 2: |
Heat Controls (AN3)
|

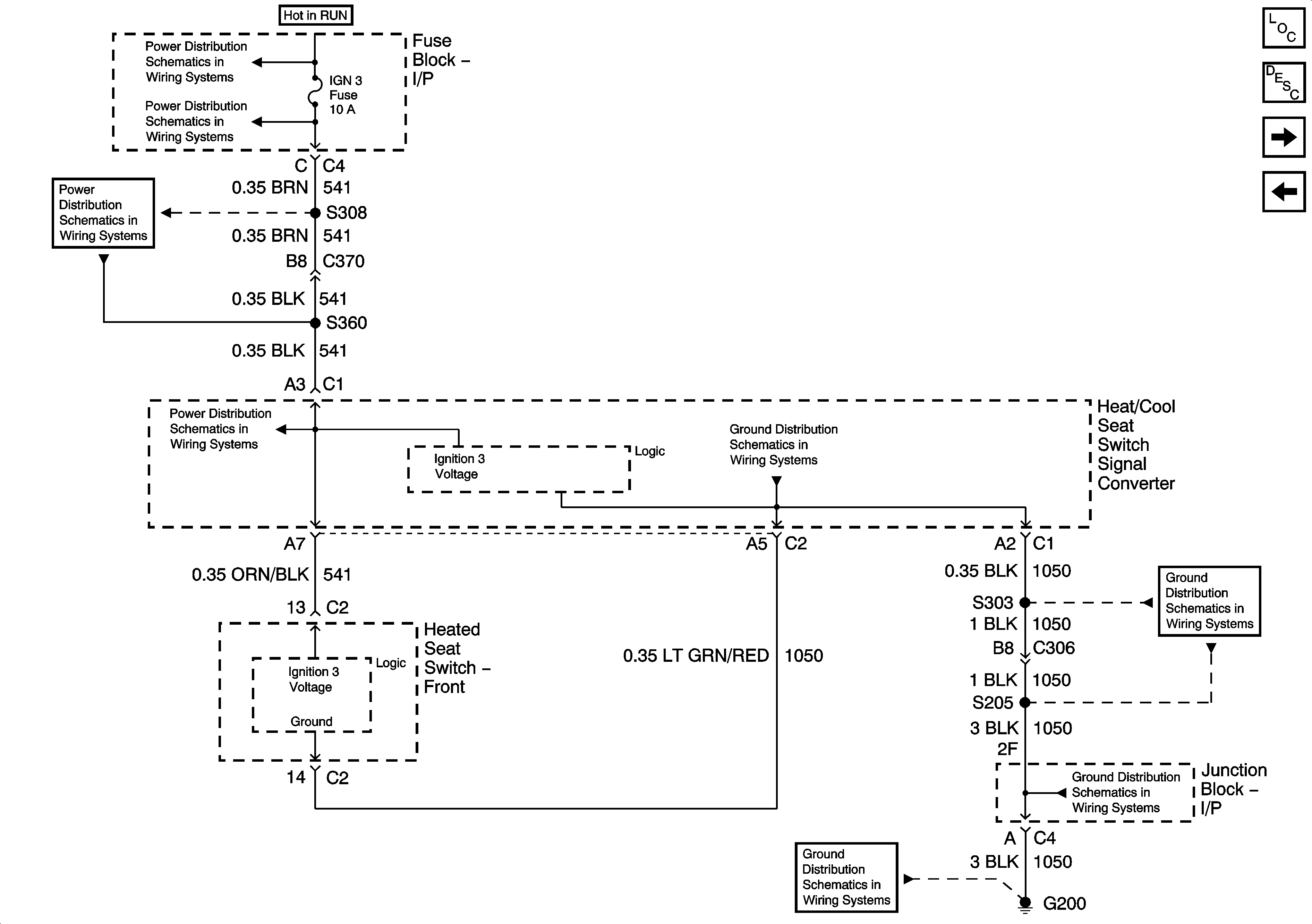

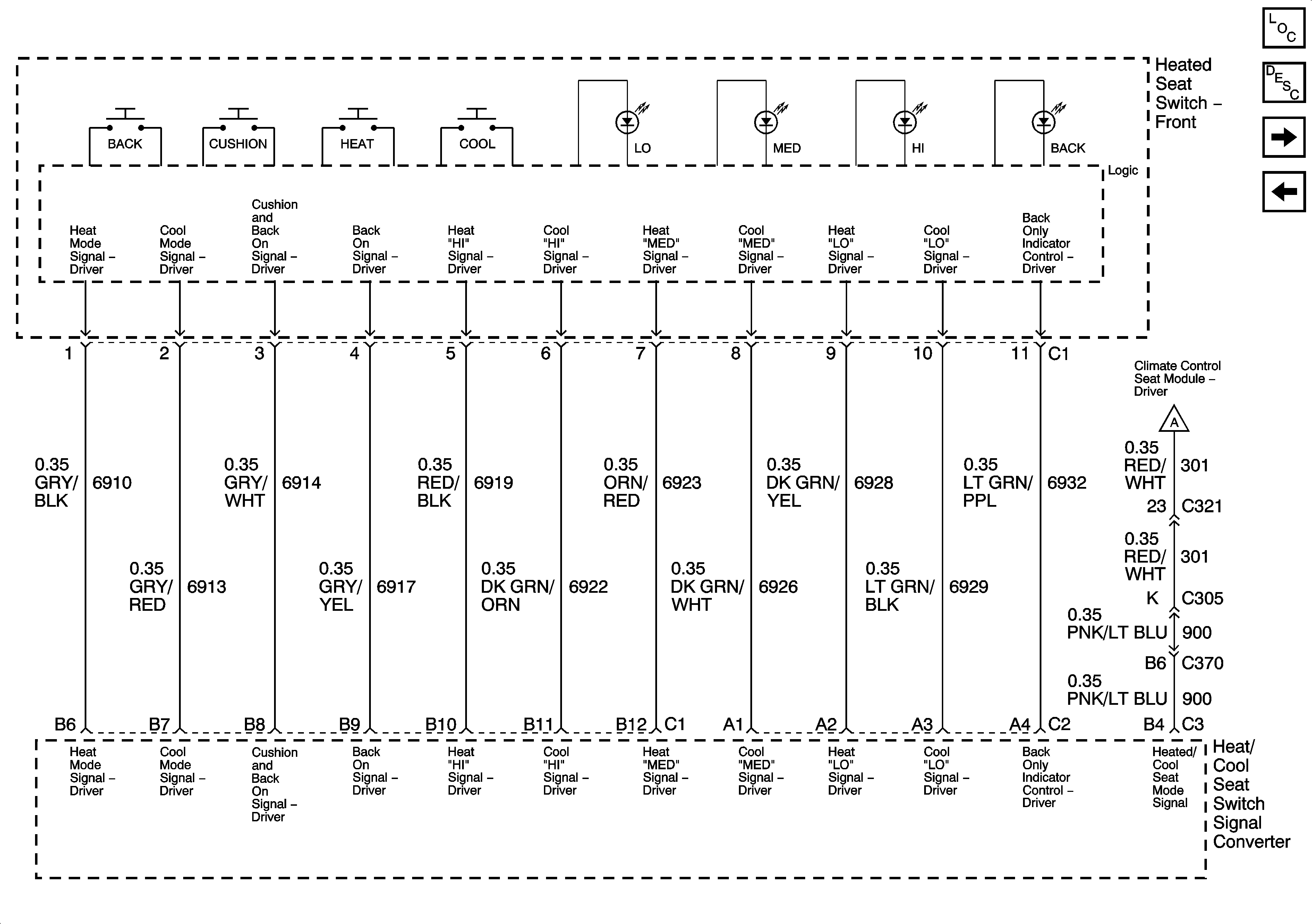

| Figure 3: |
Heat Controls (AN3 w/ULT) - 1 of 4
|

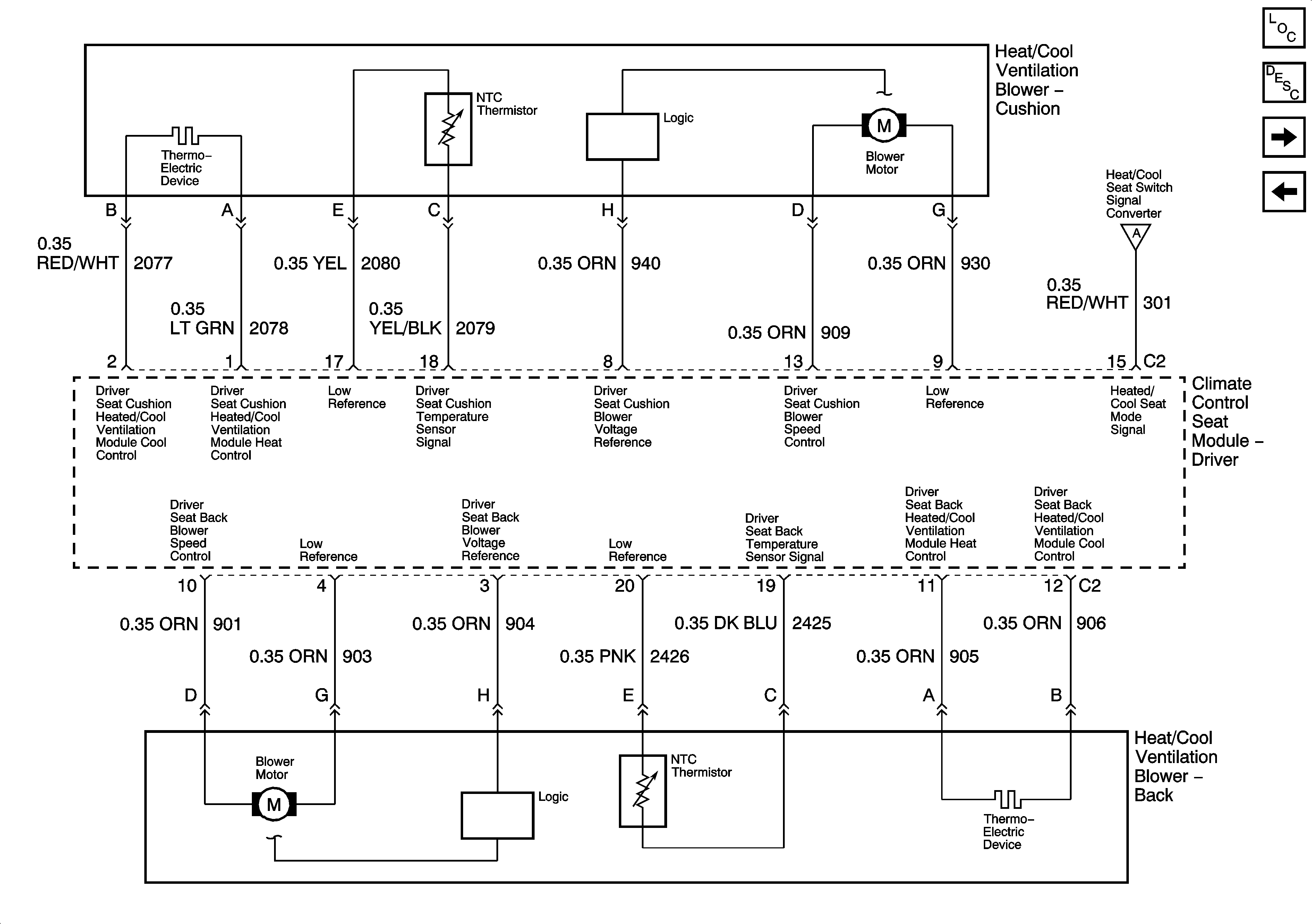

| Figure 4: |
Heat Controls (AN3 w/ULT) - 2 of 4
|
| Figure 5: |
Heat Controls (AN3 w/ULT) - 3 of 4
|
| Figure 6: |
Heat Controls (AN3 w/ULT) - 4 of 4
|

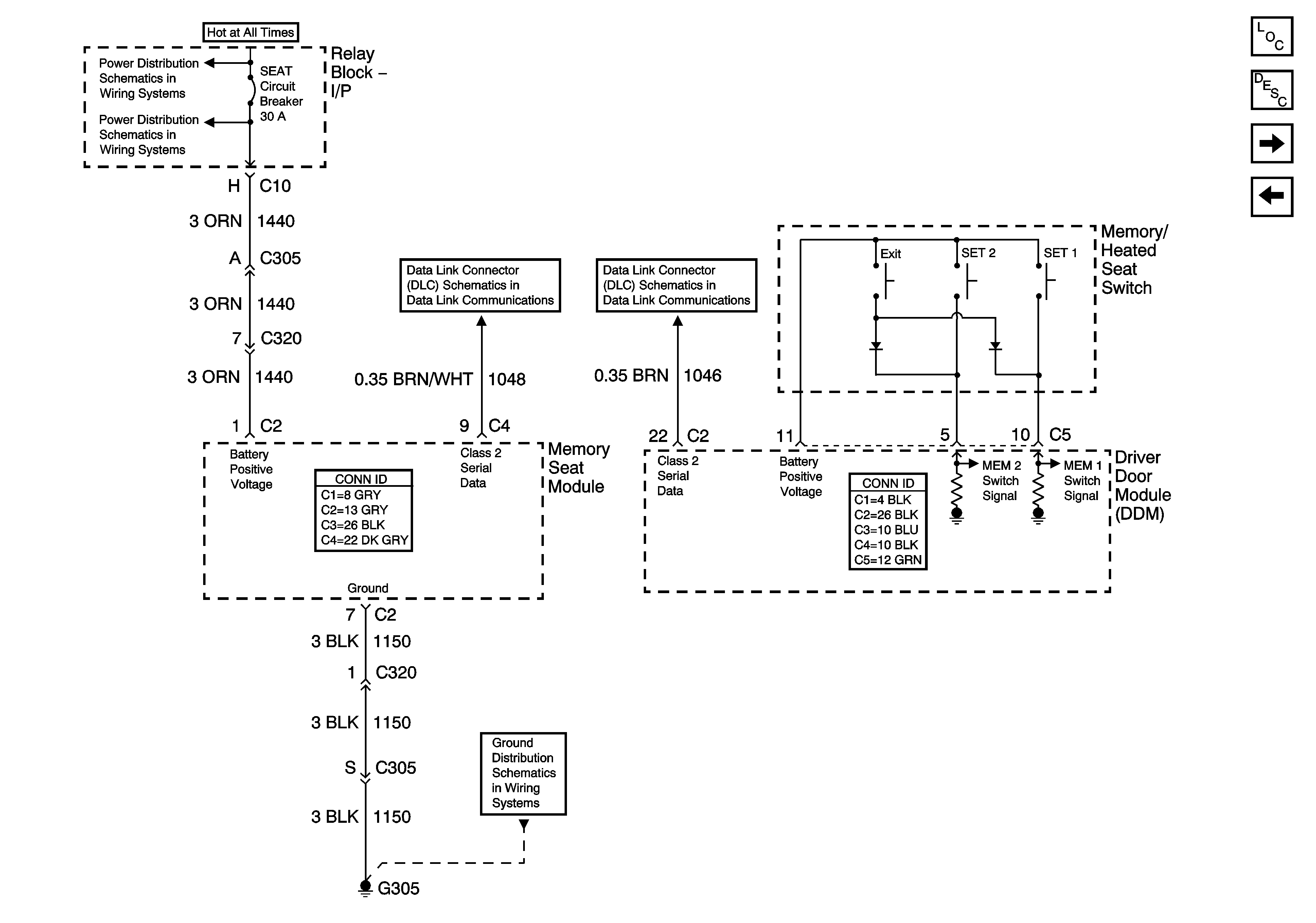

| Figure 7: |
Module Power, Ground, Serial Data and Switch Signals - AN3
|

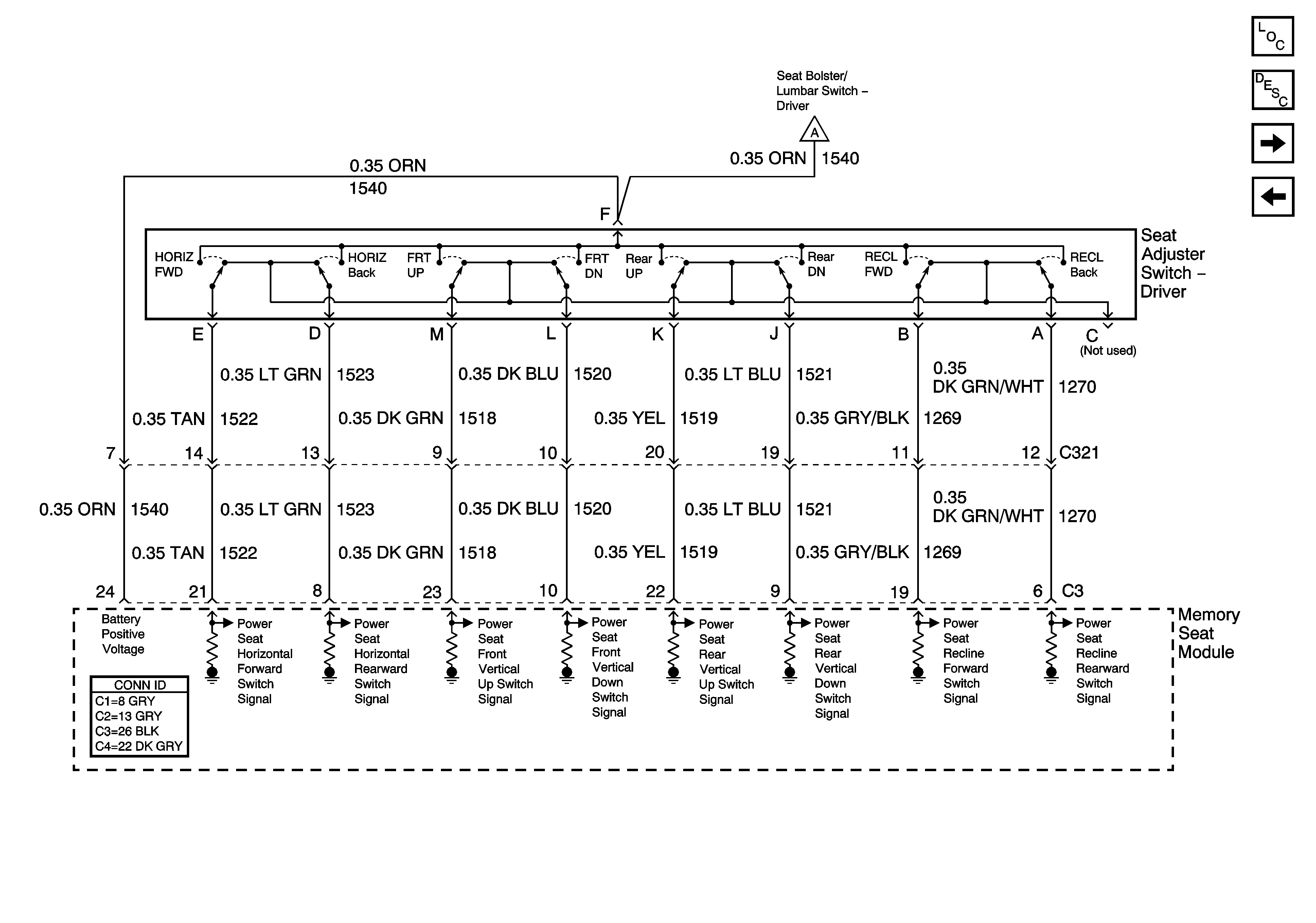

| Figure 8: |
Seat Positioning Controls - AN3
|

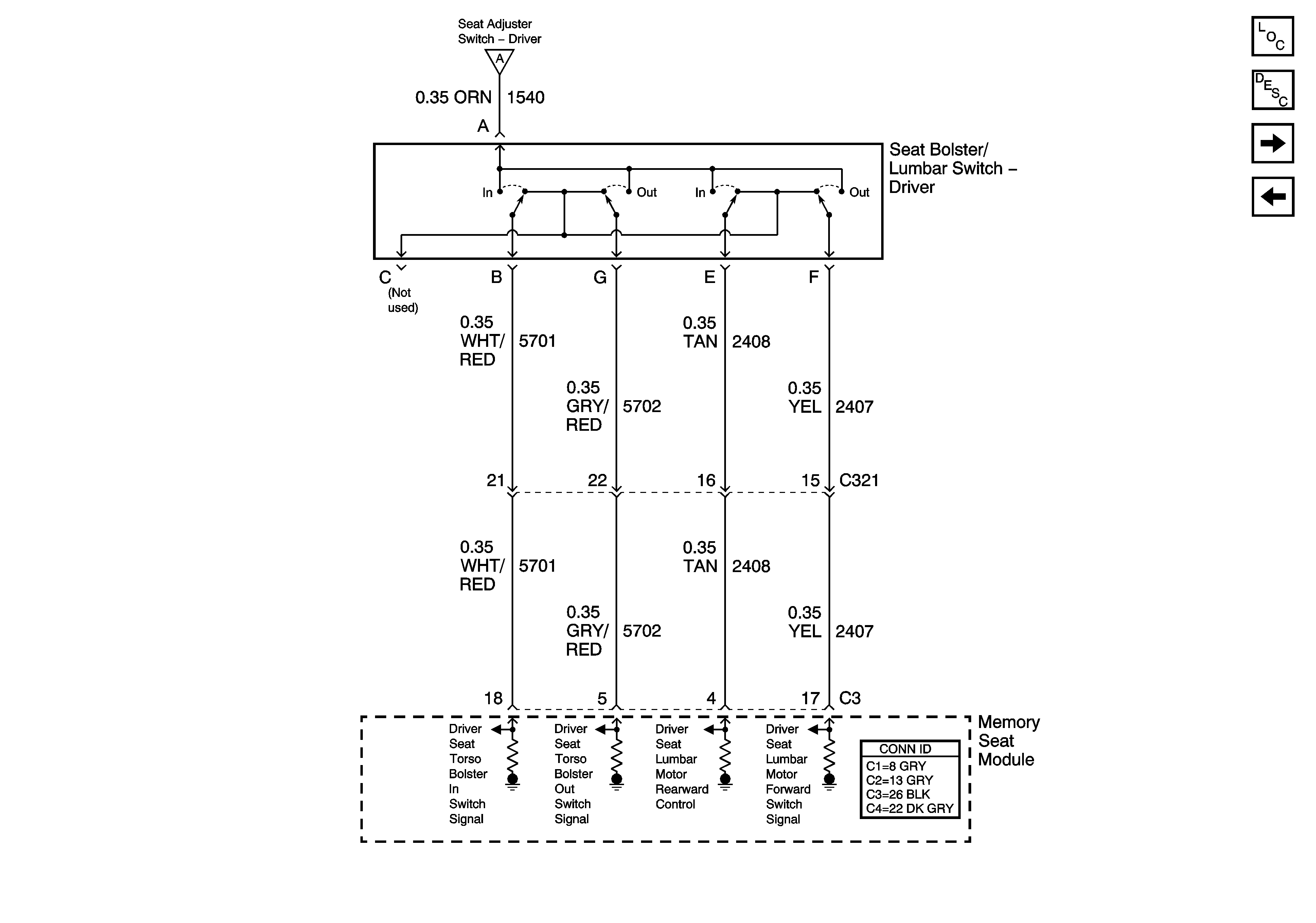

| Figure 9: |
Lumbar/Bolster Controls
|

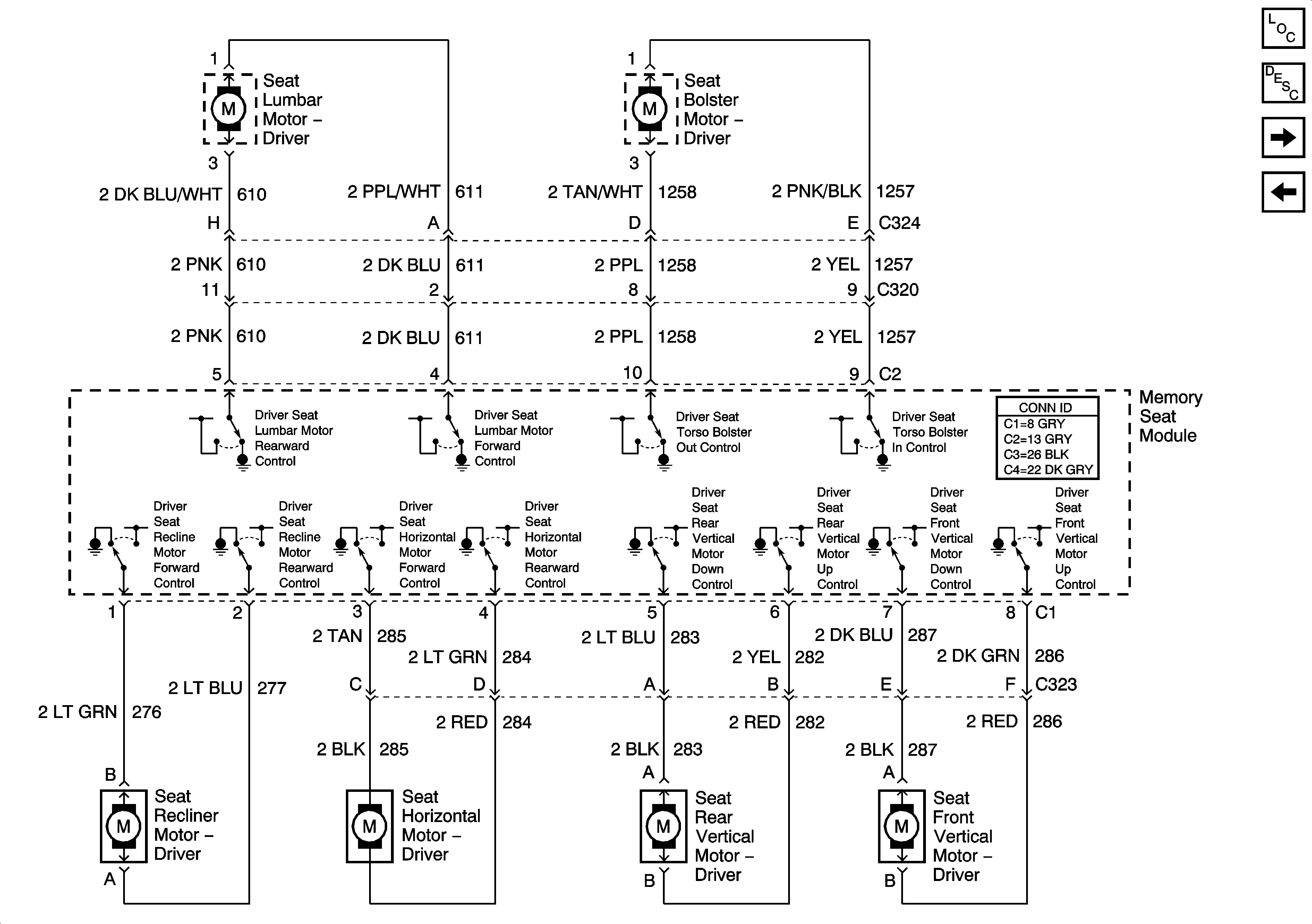

| Figure 10: |
Motors - AN3
|
| Figure 11: |
Position Sensors - 1 of 2
|
| Figure 12: |
Position Sensors - 2 of 2
|
