Radio/Audio System Schematics Base/Uplevel Radio - UQ3/UQ5
| Figure 1: |

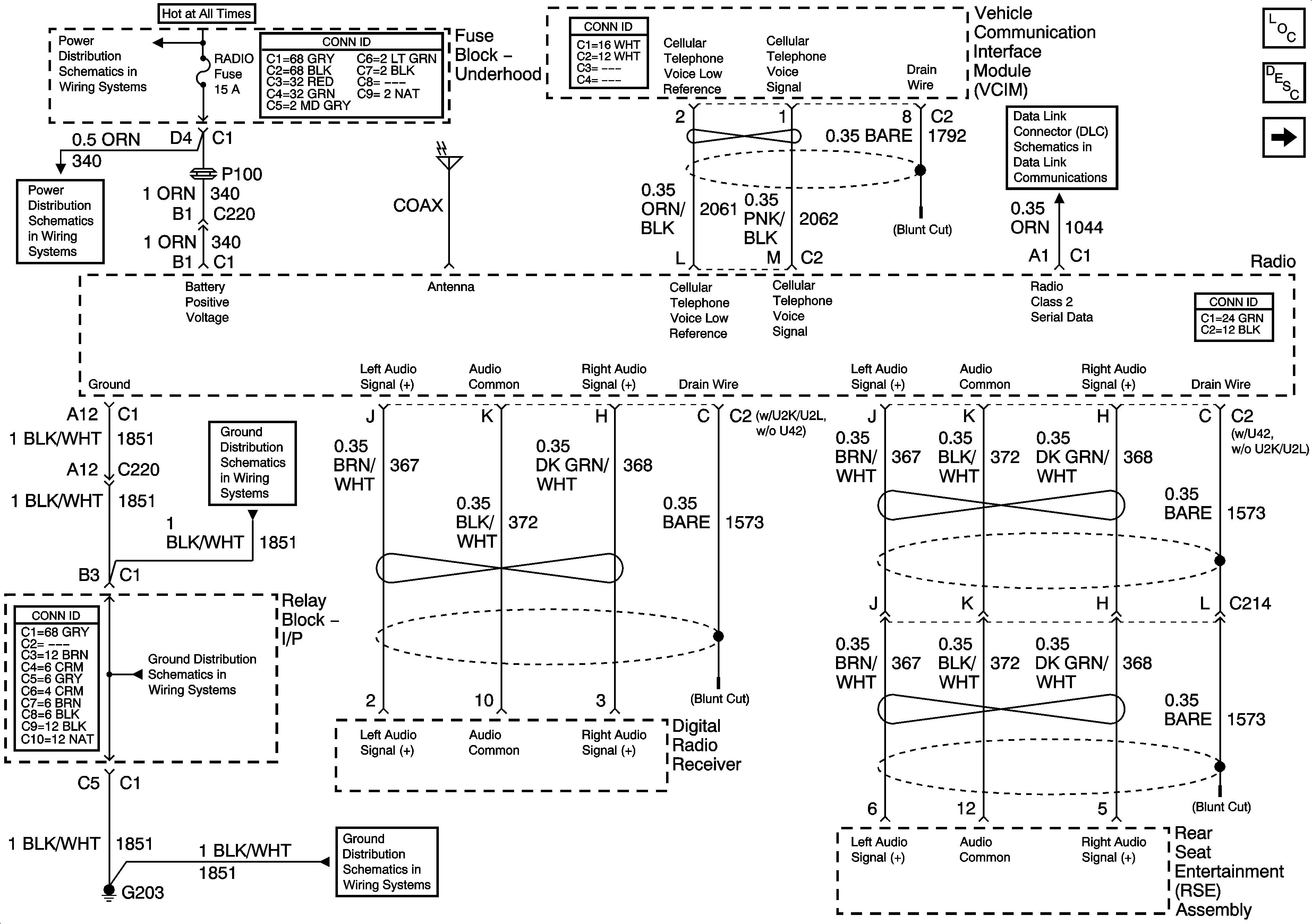

Power, Ground, Audio Signals
|
| Figure 2: |
Speakers
|
| Figure 3: |
Digital Radio Receiver - w/ U2K/U2L
|
Radio/Audio System Schematics Radio - UQ7 w/o Y91 - non Class 2 Amp
| Figure 1: |

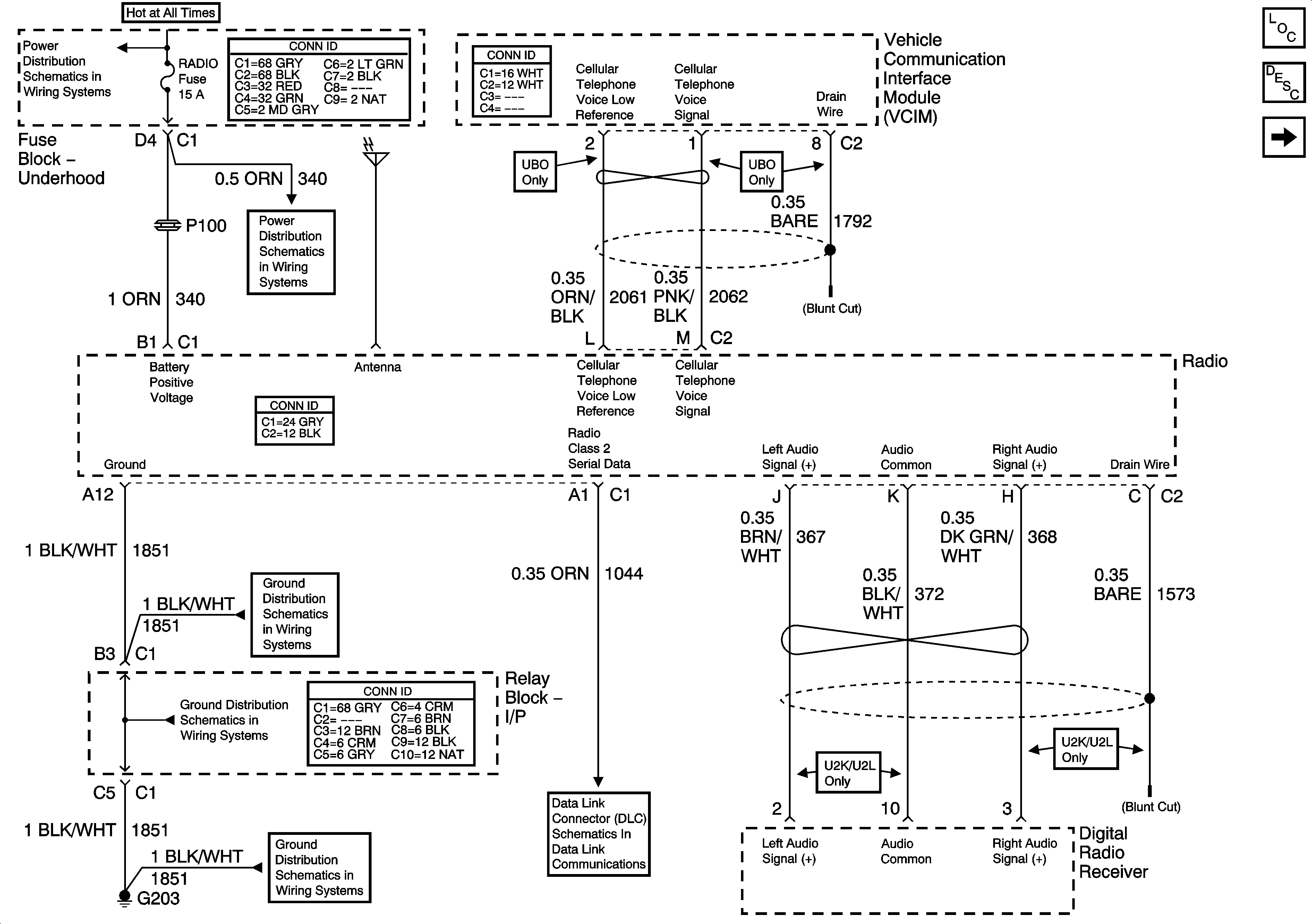

Power, Ground, Audio Signals - 1 of 2
|
| Figure 2: |
Power, Ground, Audio Signals - 2 of 2
|
| Figure 3: |
Amplifier Power, Ground, Inputs - w/o RSA
|
| Figure 4: |
Amplifer, RSA Inputs - w/ RSA
|
| Figure 5: |

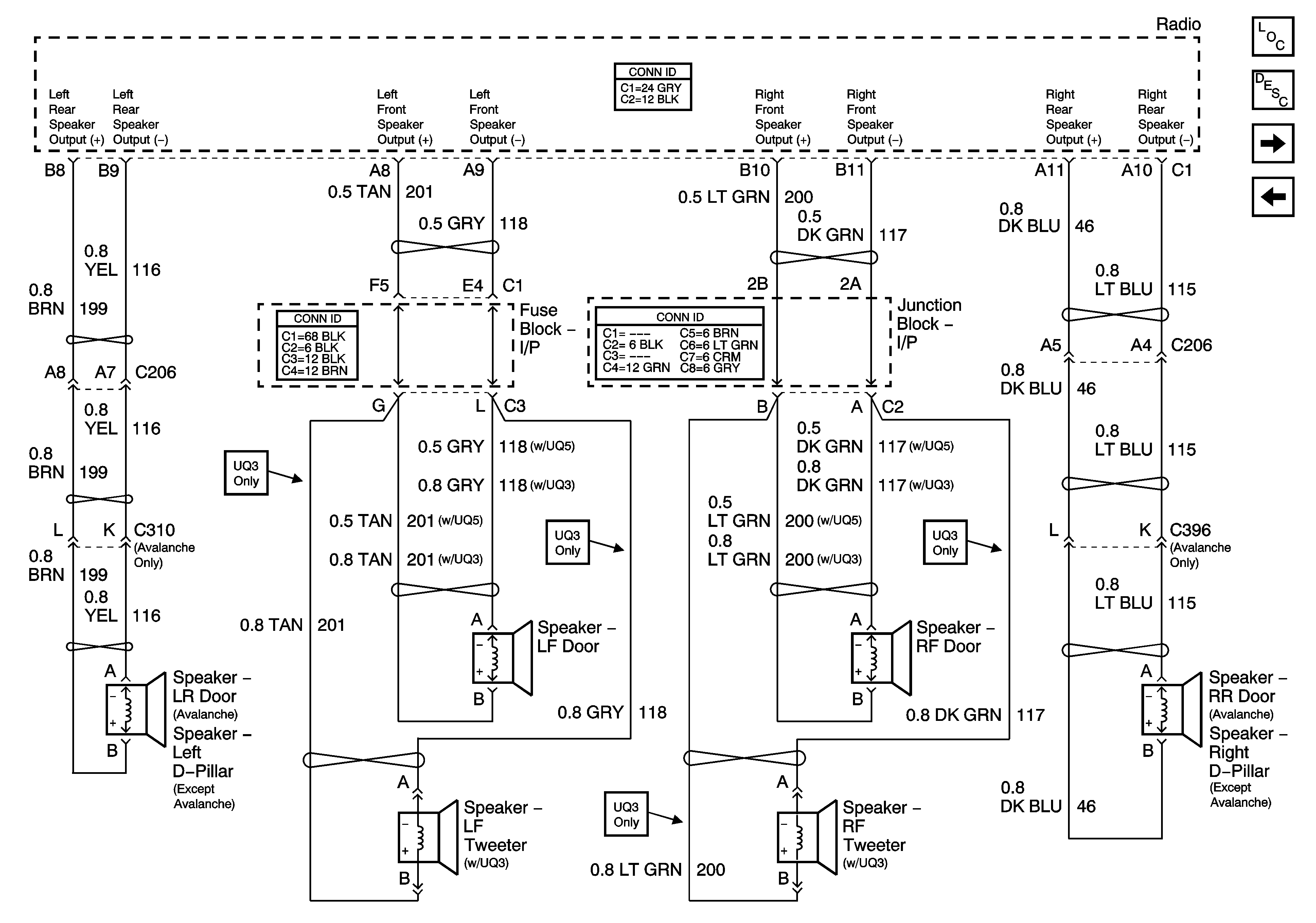

Speakers
|
| Figure 6: |

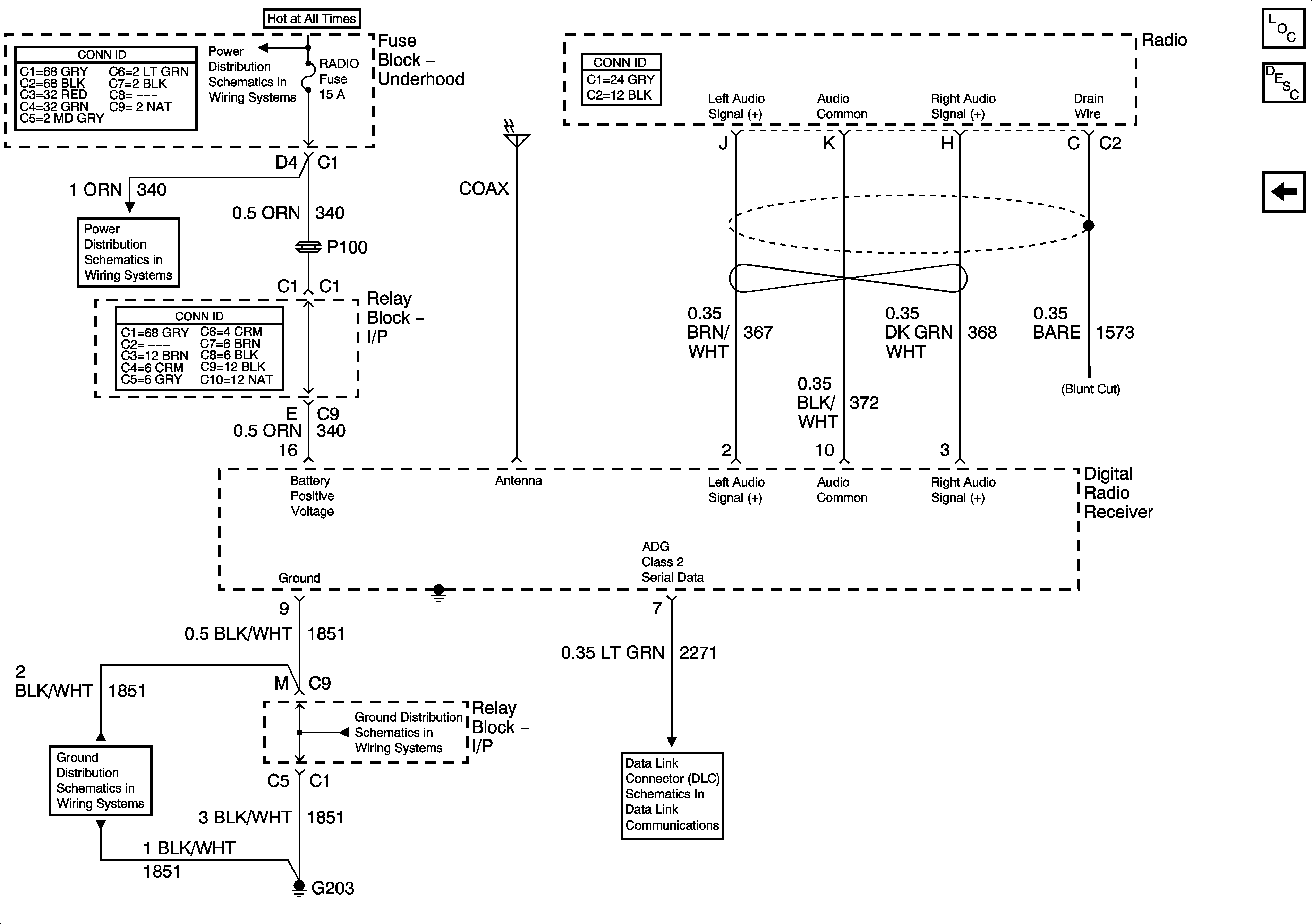

Digital Radio Receiver - w/ U2K/U2L
|
| Figure 7: |

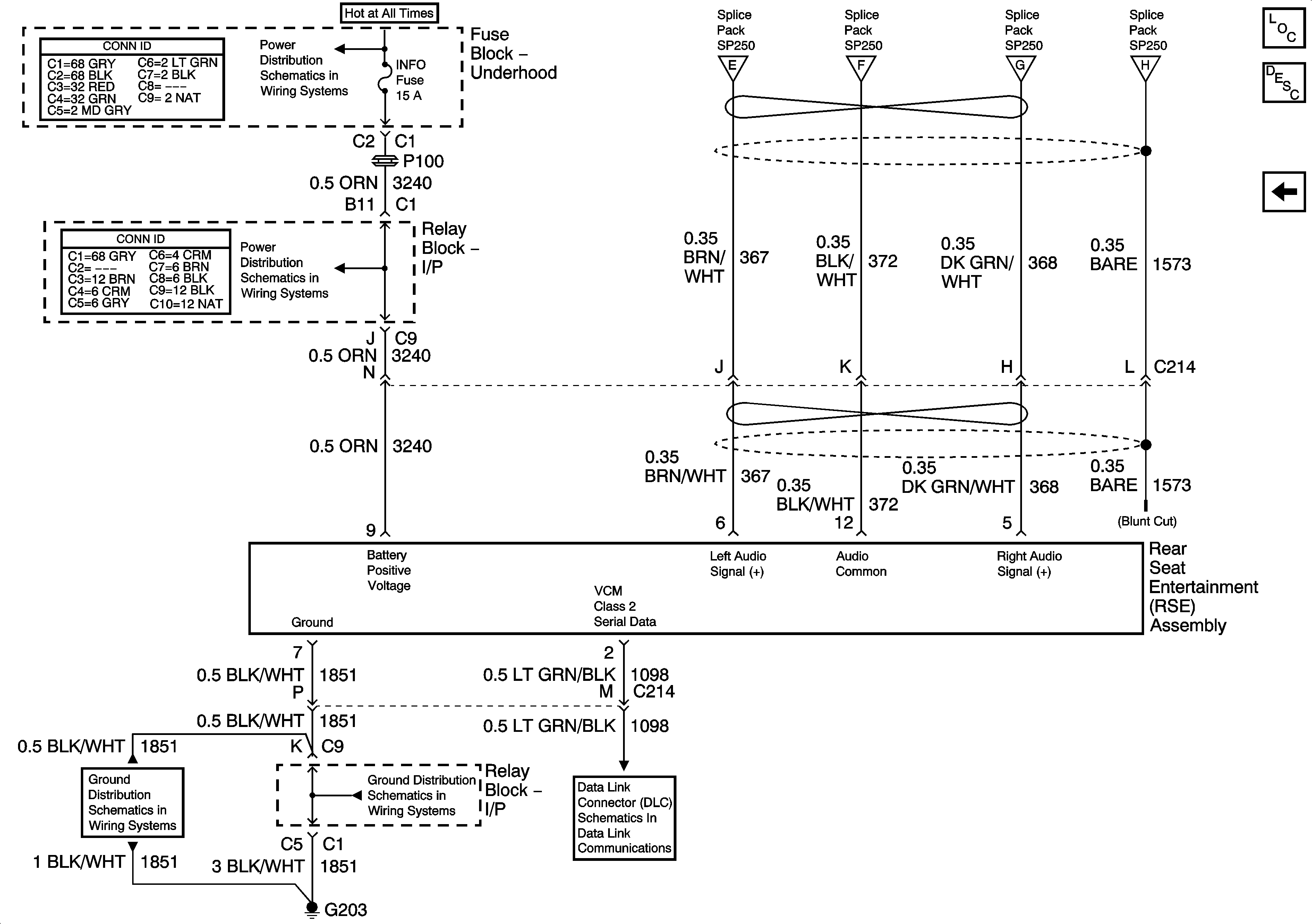

Rear Seat Entertainment - w/ U42
|
Radio/Audio System Schematics Lux Radio - UQ7 w/ Y91 - Class 2 Amp
| Figure 1: |

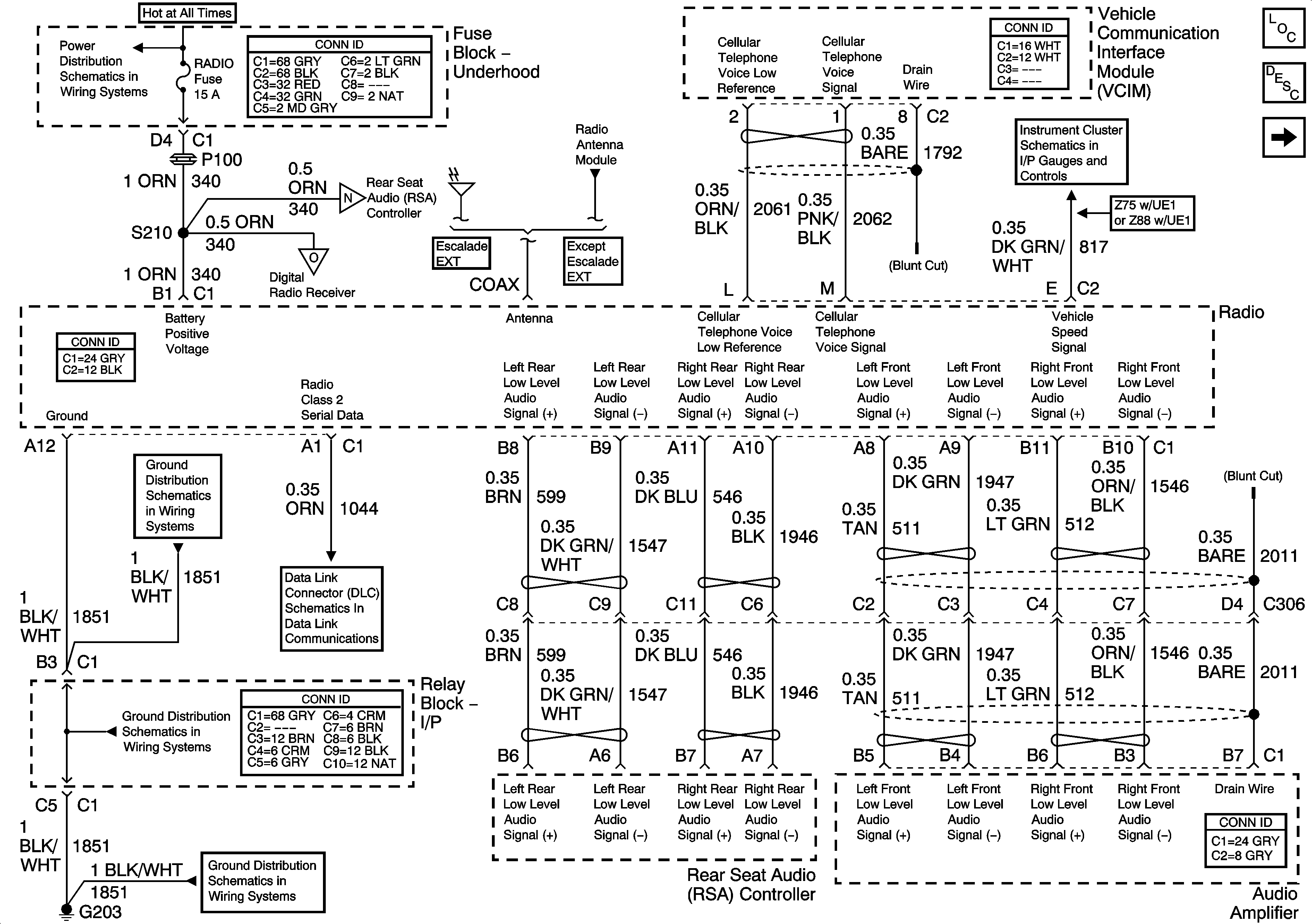

Radio Power, Ground, Audio Signals
|
| Figure 2: |

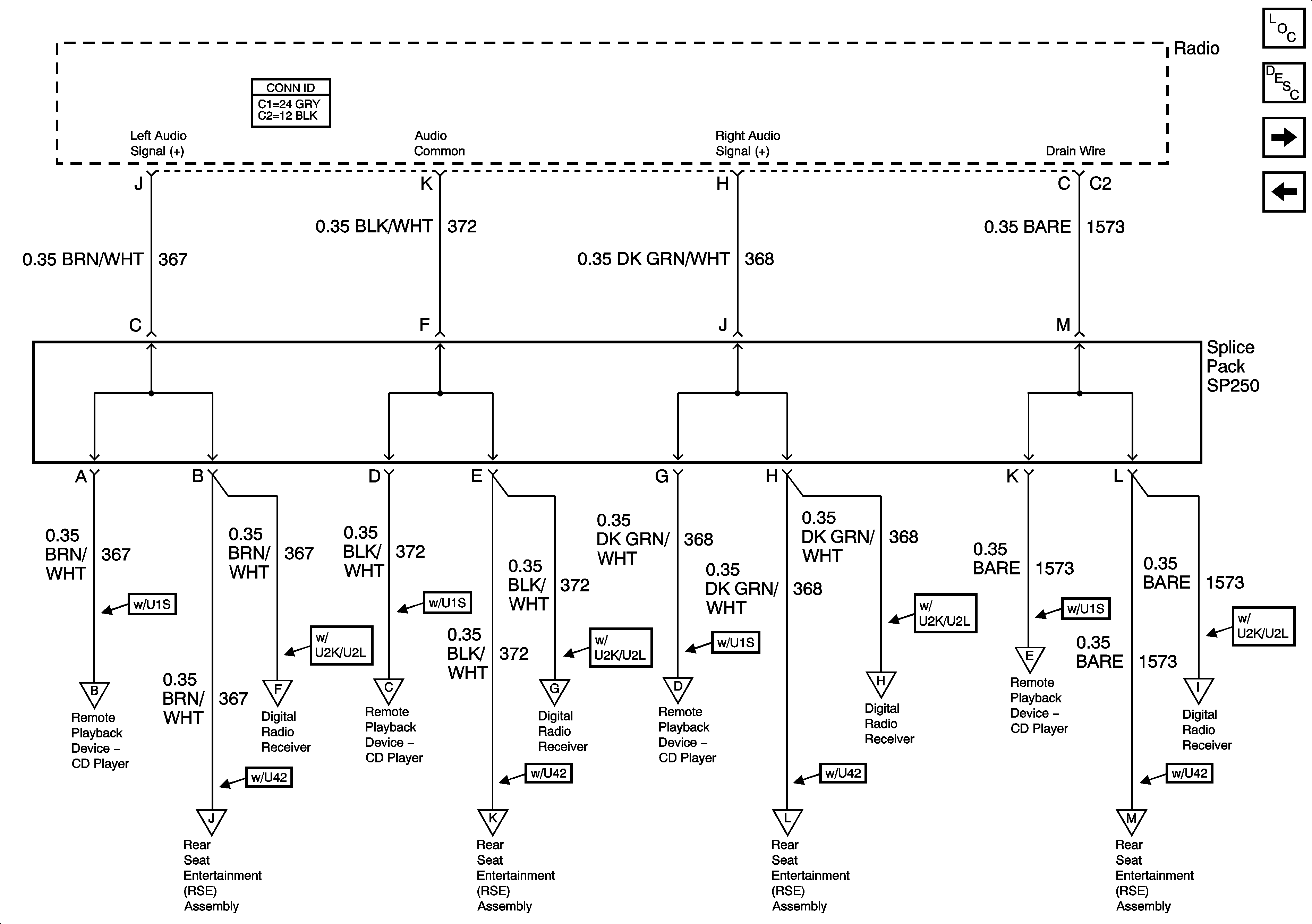

Audio Signals - 1 of 2
|
| Figure 3: |

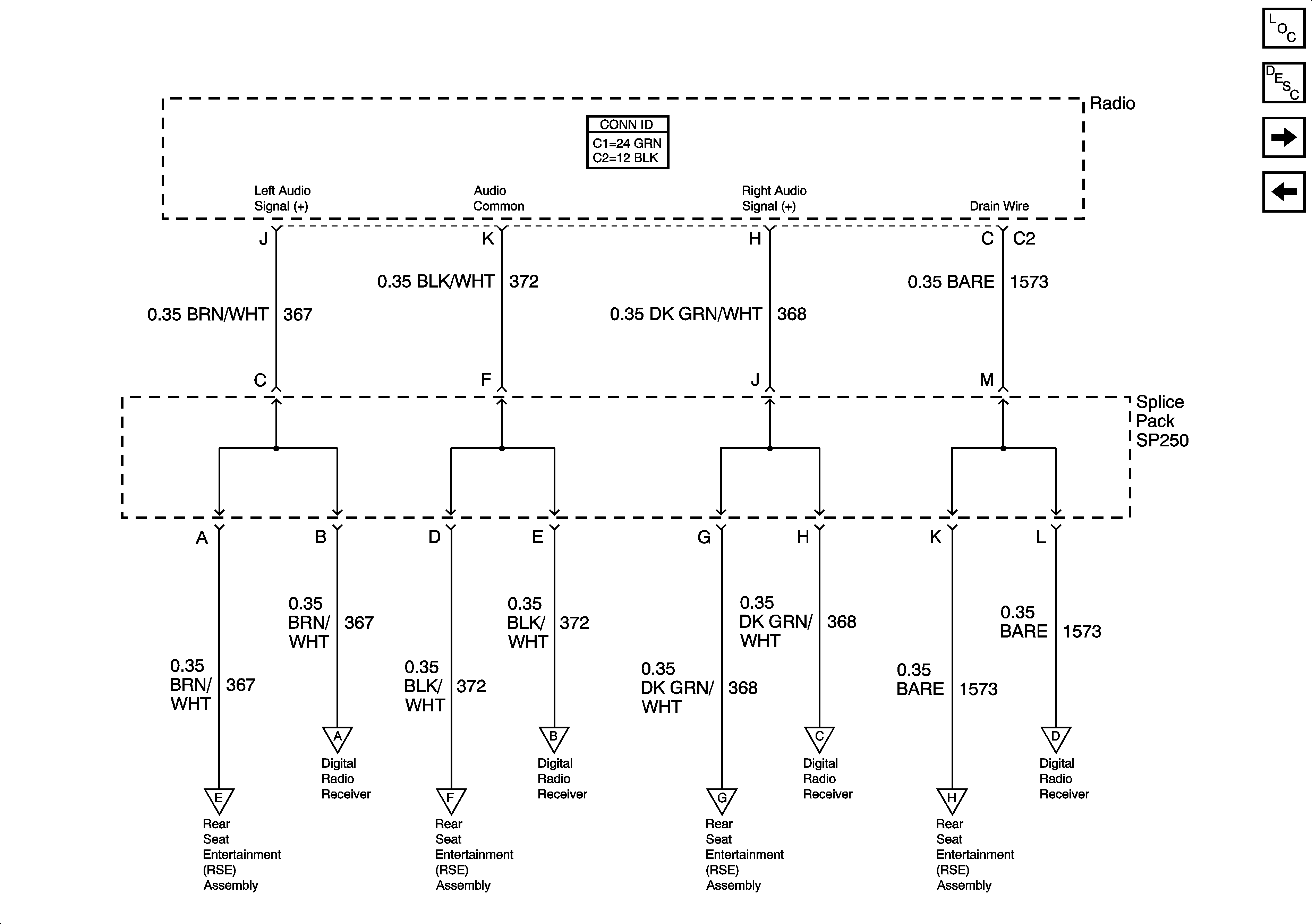

Audio Signals - 2 of 2
|
| Figure 4: |

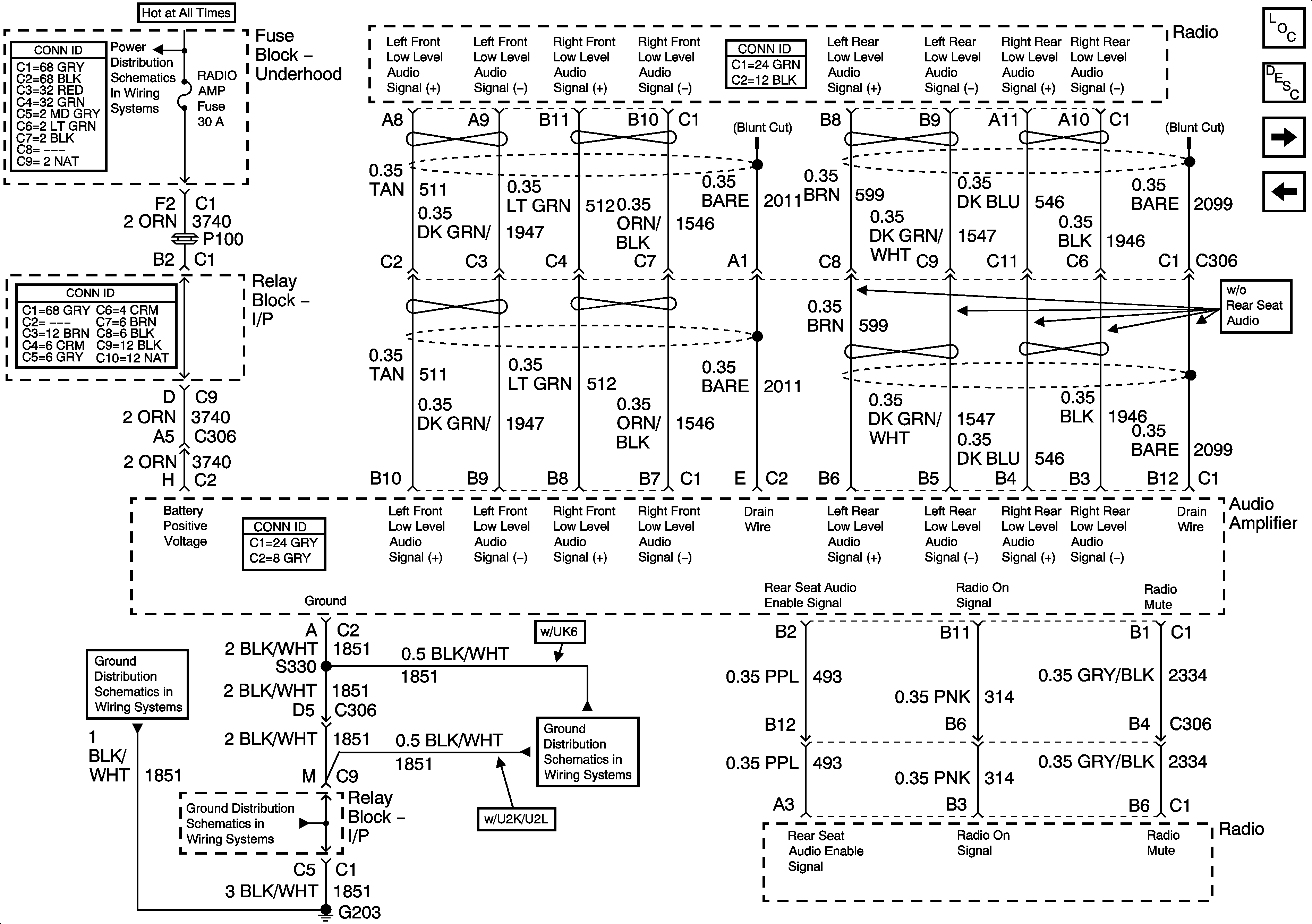

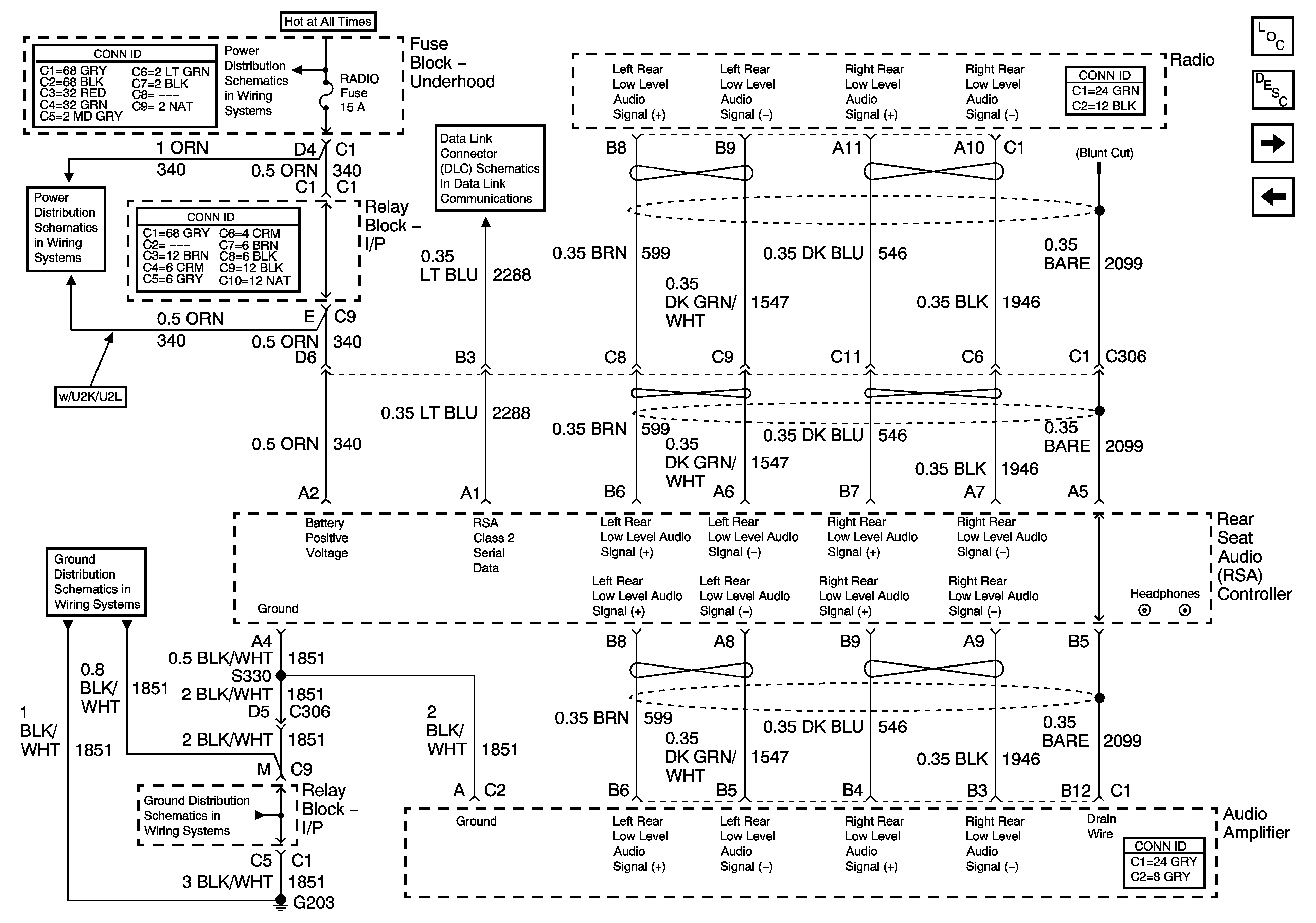

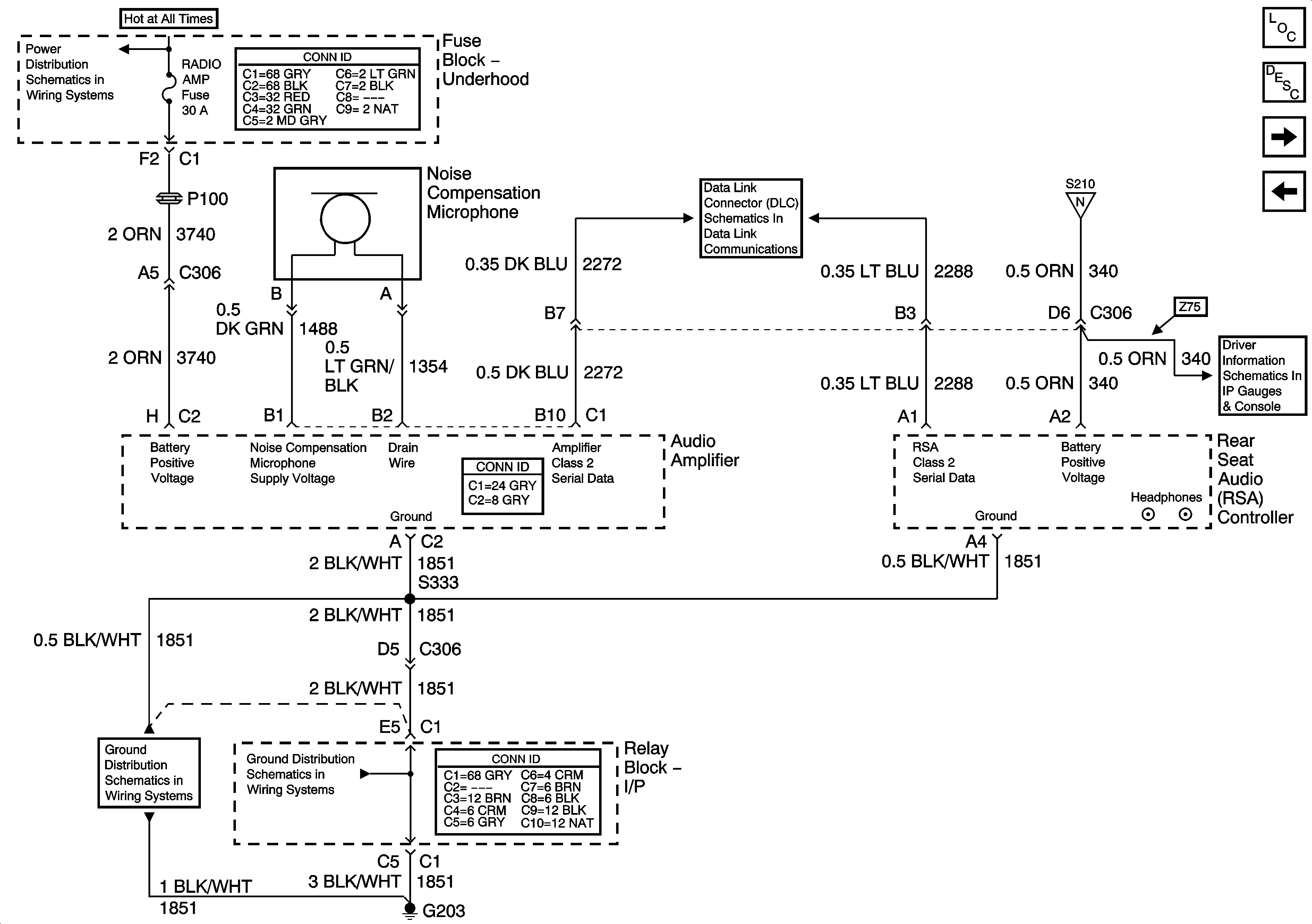

Amplifier, RSA Power, Ground, Subsystems
|
| Figure 5: |

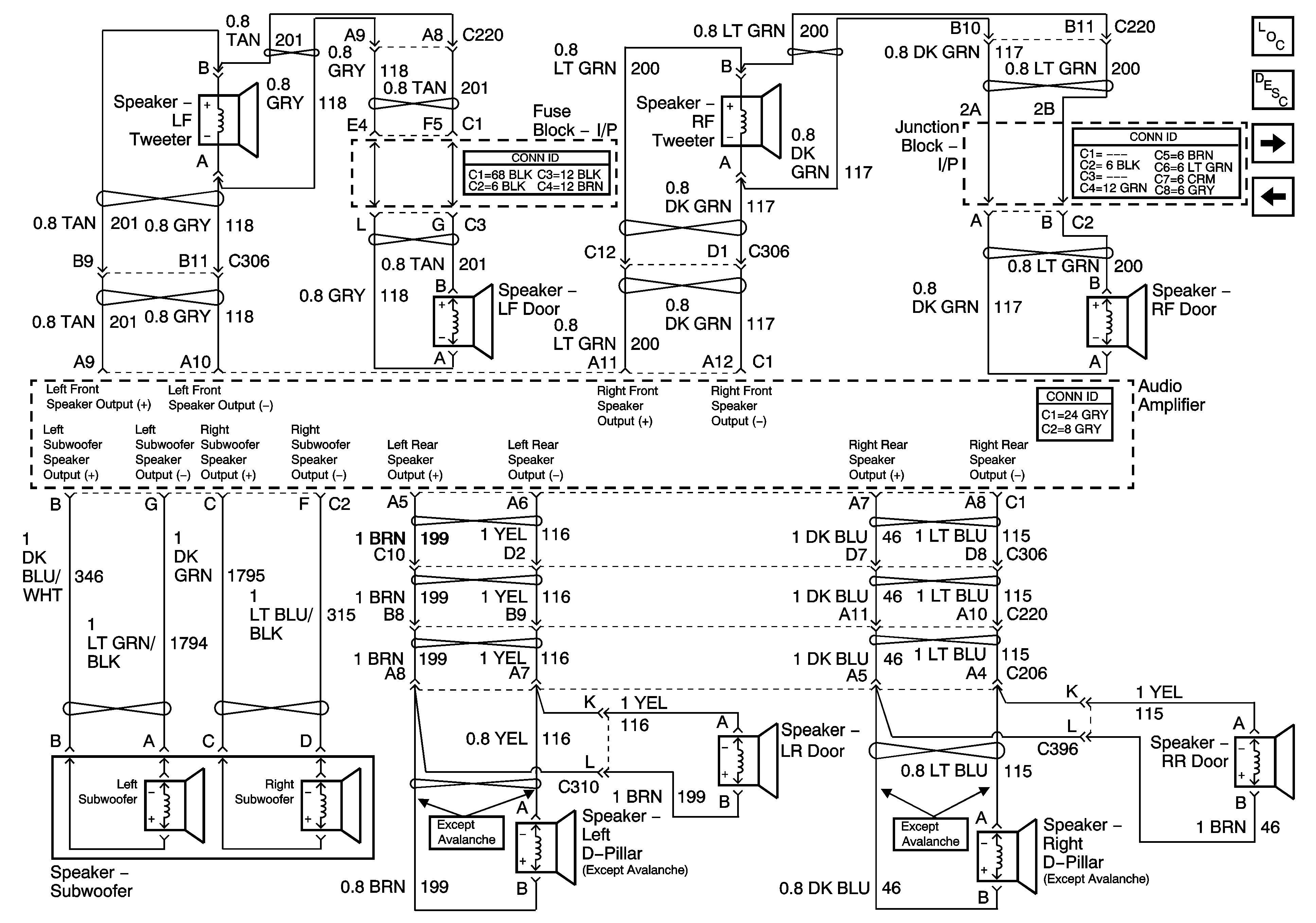

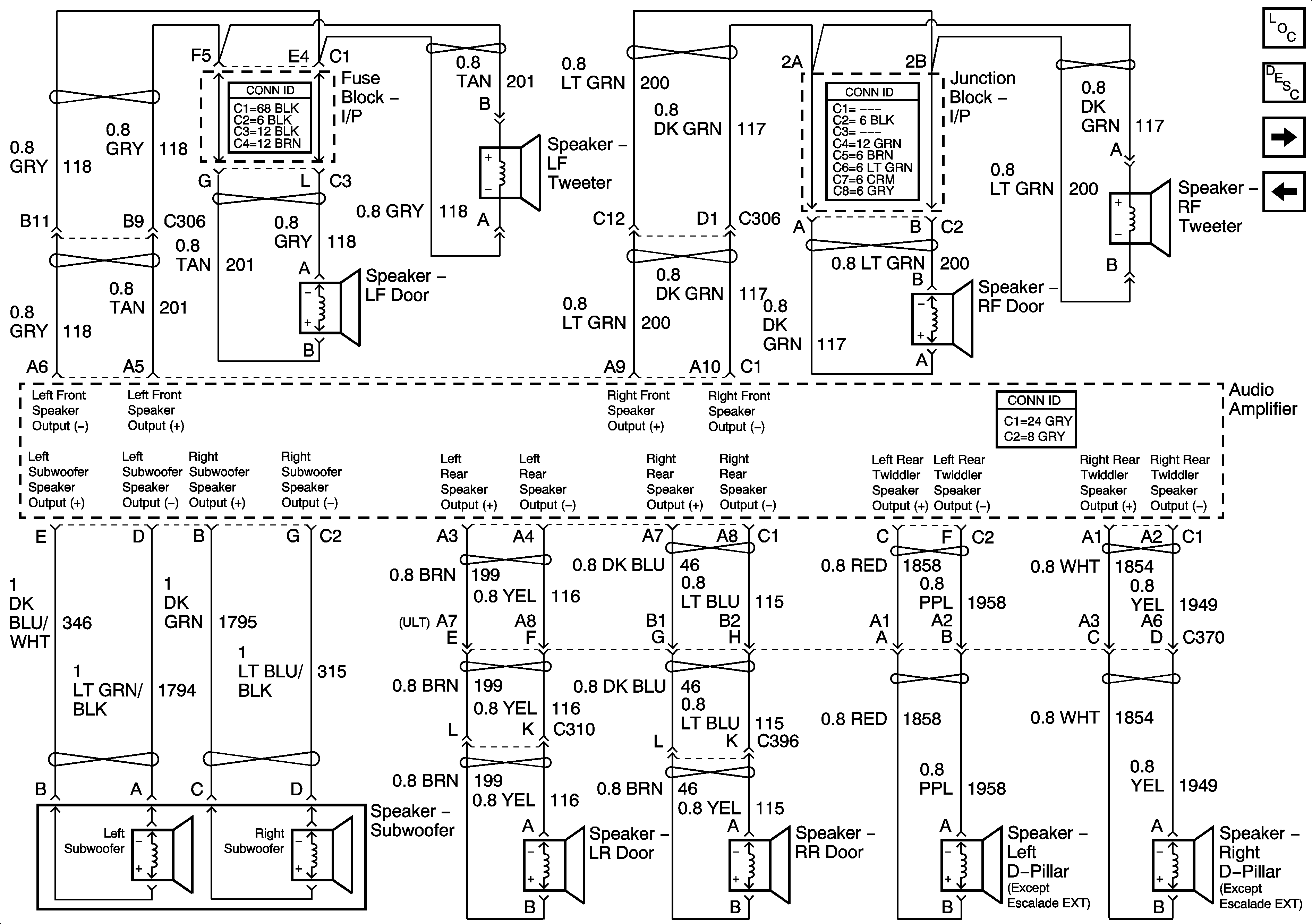

Speakers
|
| Figure 6: |

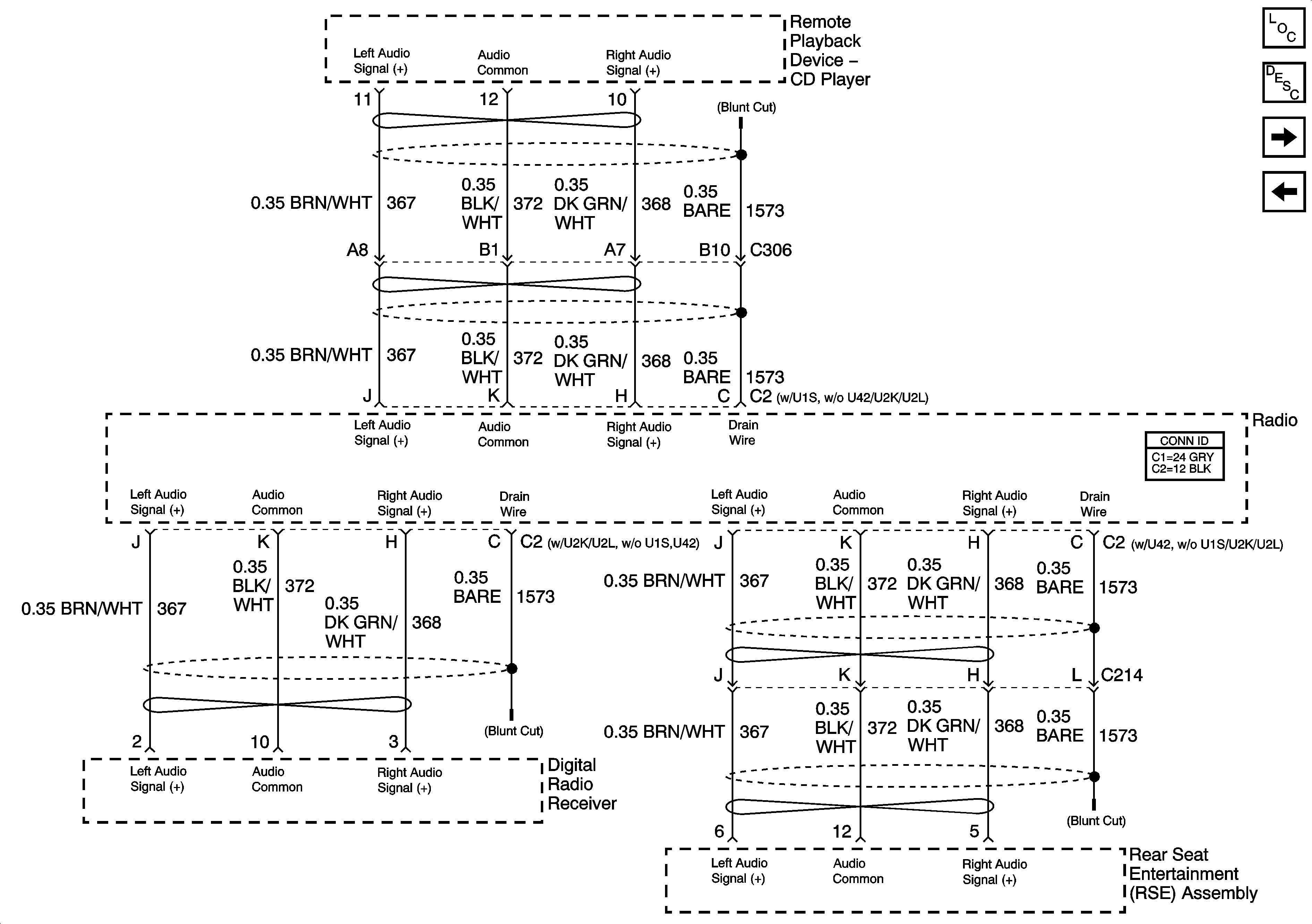

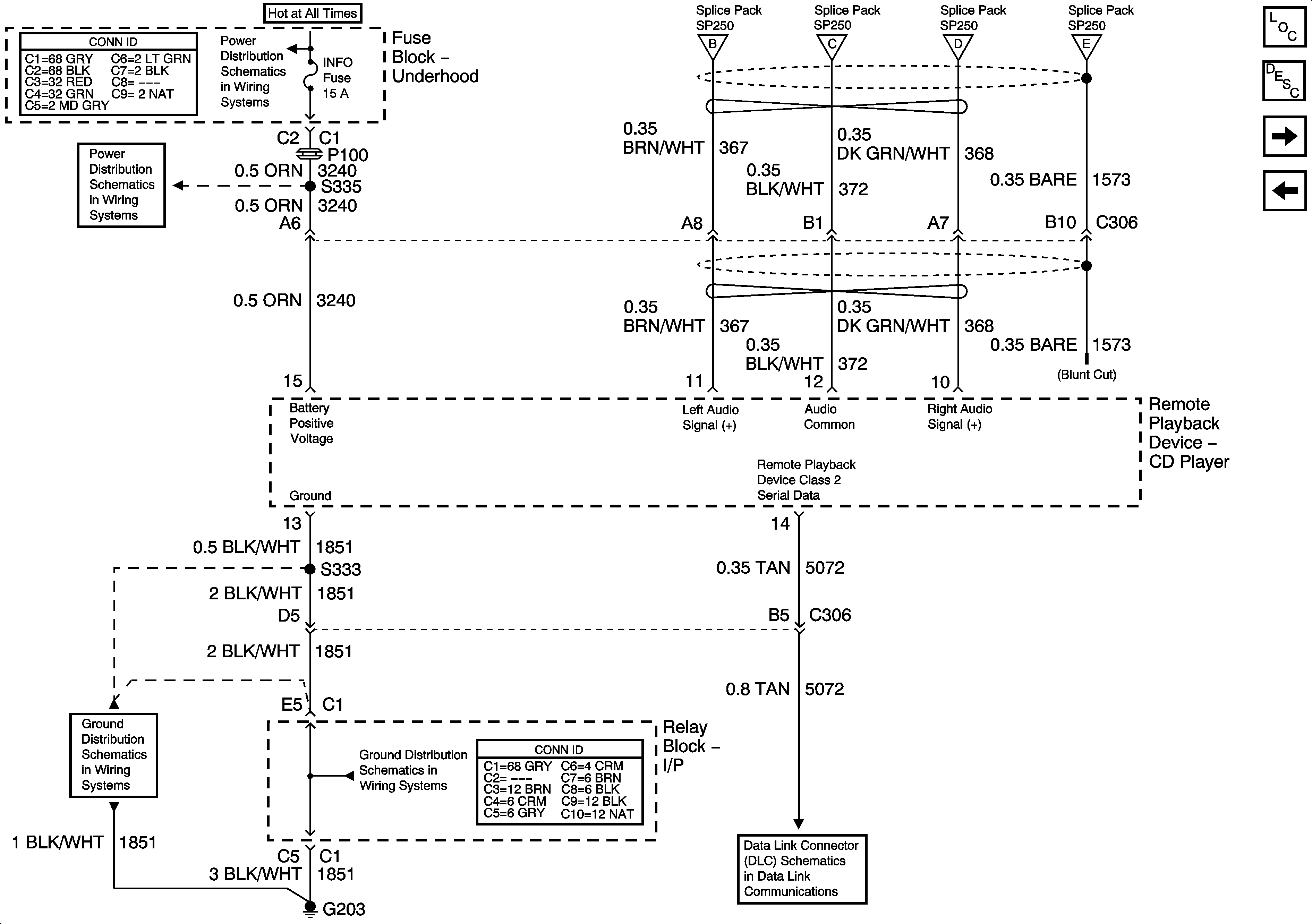

Remote CD Player - w/ U1S
|
| Figure 7: |

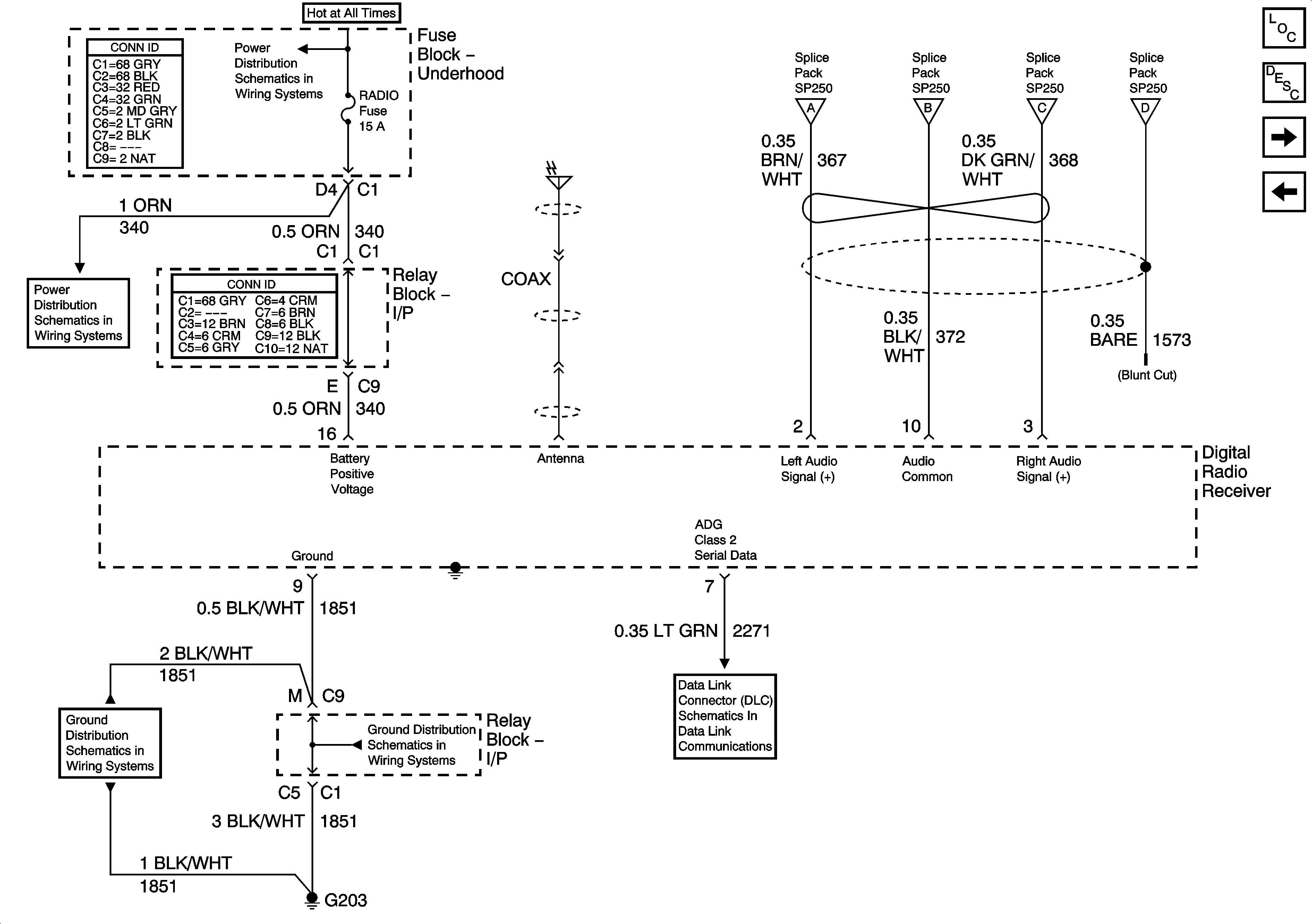

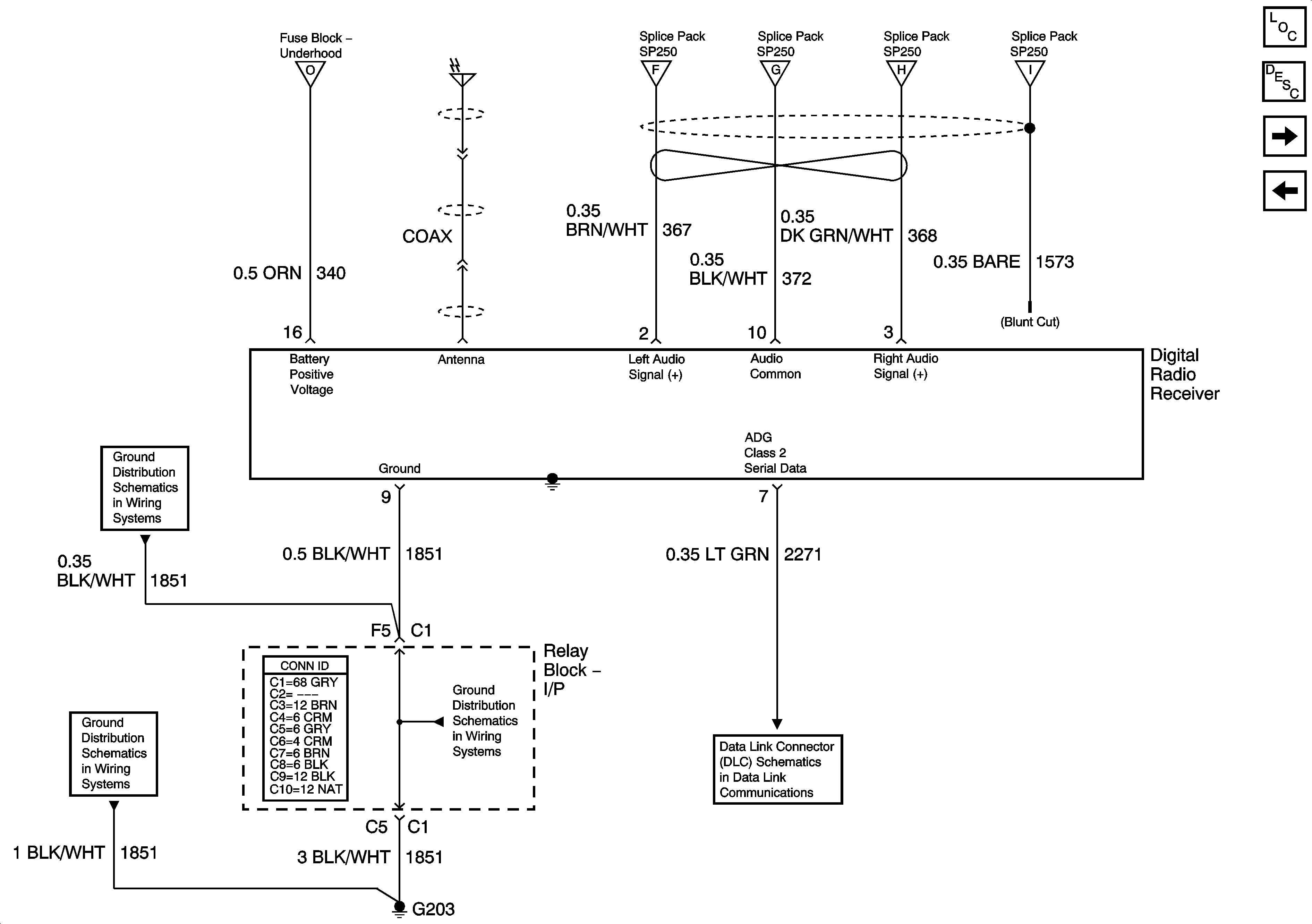

Digital Radio Receiver - w/ U2K/U2L
|
| Figure 8: |

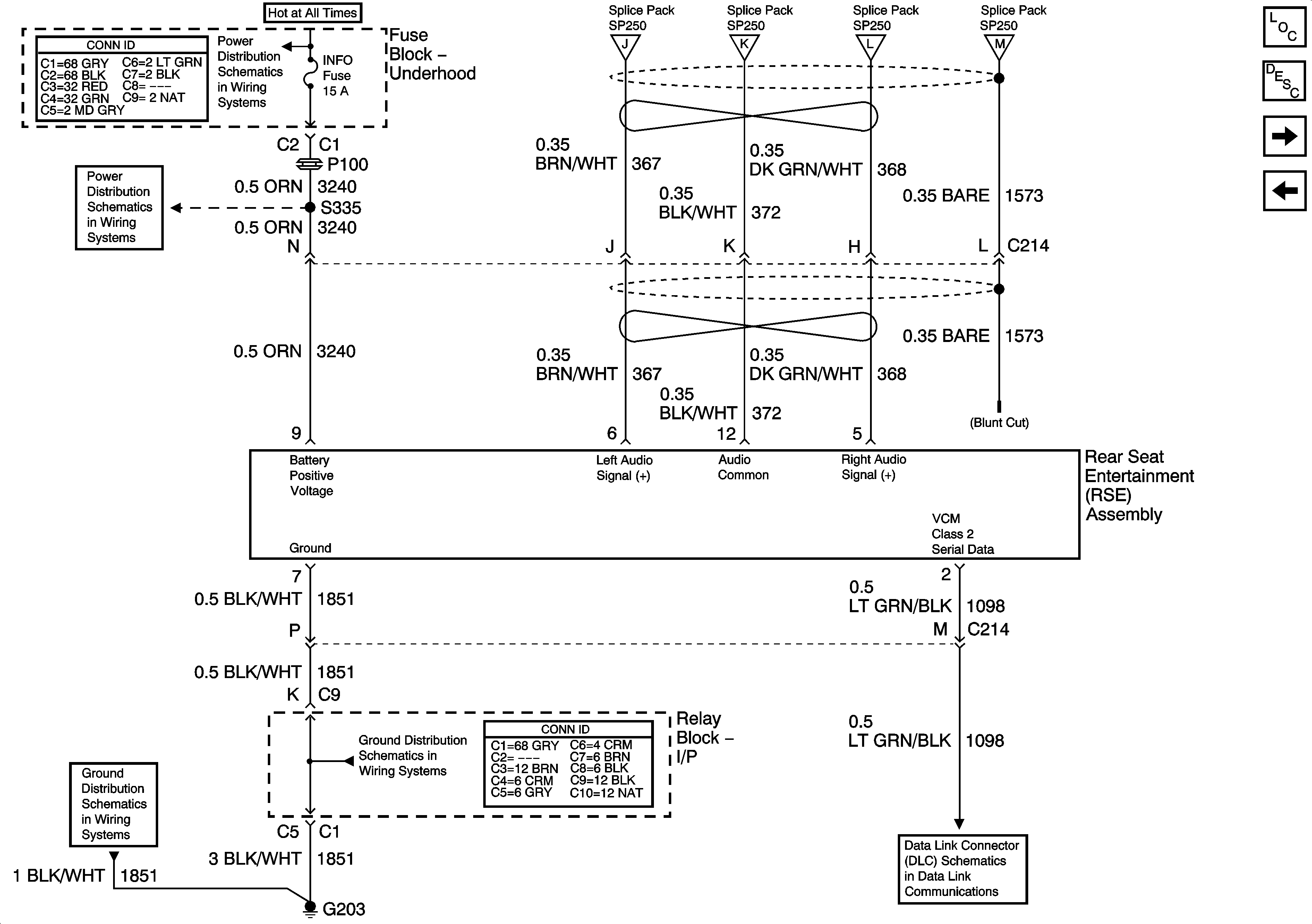

Rear Seat Entertainment - w/ U42
|
| Figure 9: |

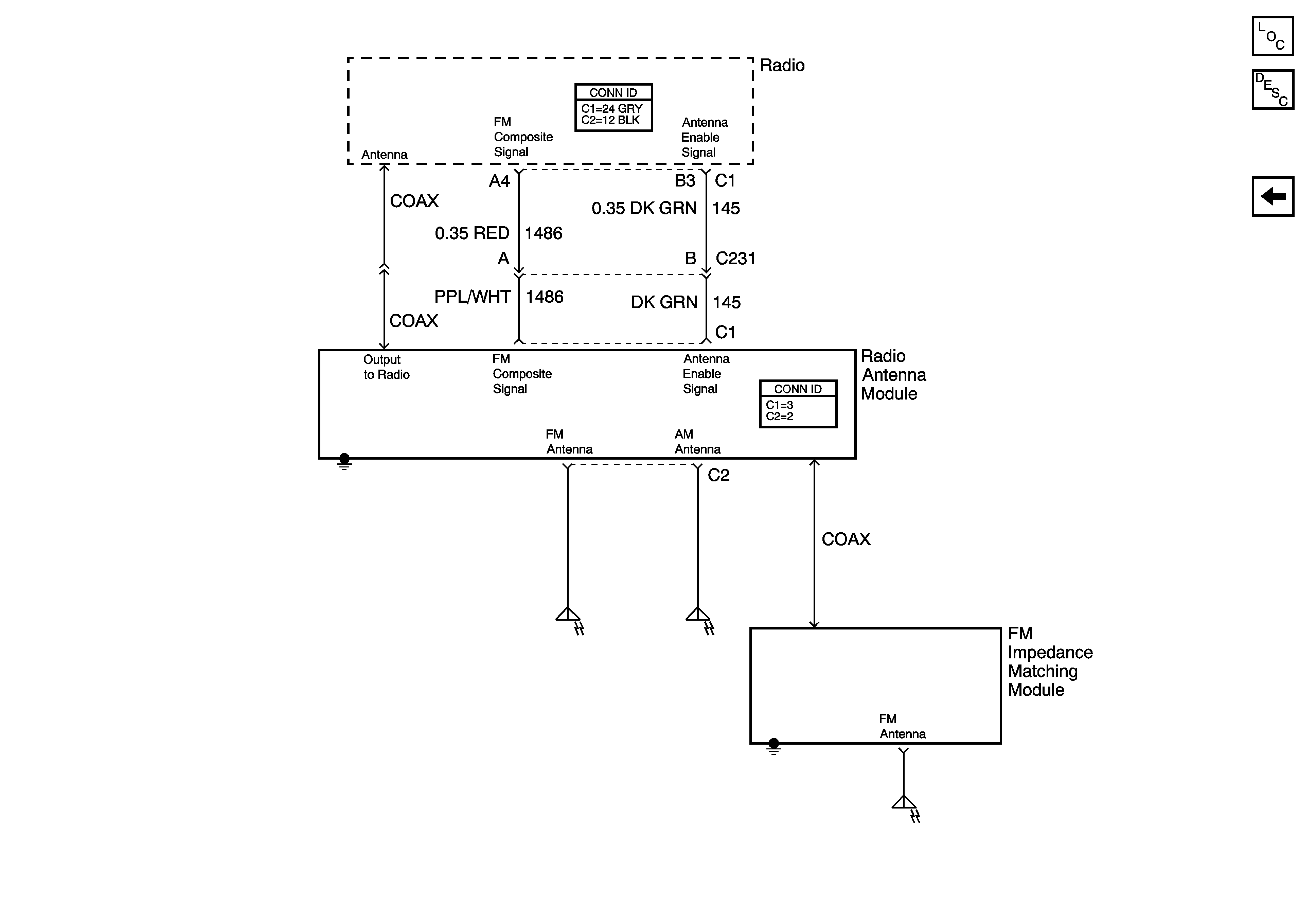

Antenna Module
|
