Makes 🢒 Chevrolet 🢒 2004 🢒 Tahoe - 2WD 🢒 Accessories 🢒 Entertainment 🢒 Remote Compact Disc Player Replacement

Removal Procedure
  1. Remove the I/P cluster bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement in Instrument Panel, Gages and Console.

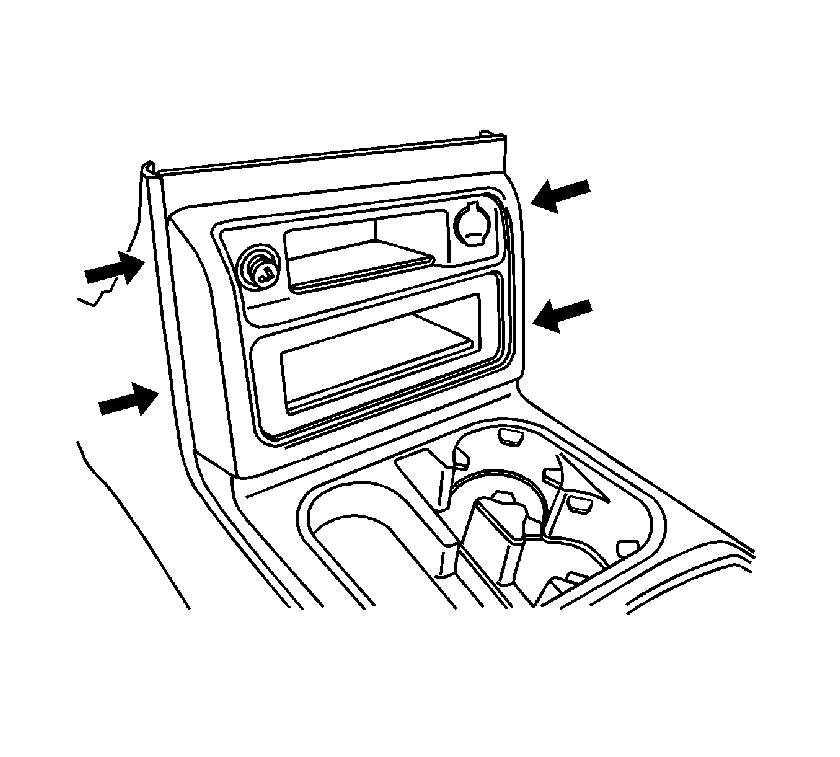

    2. Object Number: 882679 Size: SH
  2. Insert a flat bladed tool between the Bezel assembly and the console.
  3. Pry the bezel from the console outwards partially in order to gain access to the connectors.
  4. Disconnect the electrical connectors.
  5. Remove the bezel from the console.
  6. Remove the CD player from the console

Installation Procedure
  1. Install the CD player to the console till the tabs locks in place.

    2. Object Number: 882679 Size: SH
  2. Place the bezel to the console.
  3. Connect the electrical connectors.
  4. Install the bezel to the console by pushing on the corners till the retainers clicks in place.
  5. Install the I/P cluster bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement in Instrument Panel, Gages and Console.
