Instrument Panel, Gages, and Console Component Views. Chevrolet Tahoe

For 1990-2009 cars

Makes 🢒 Chevrolet 🢒 2004 🢒 Tahoe - 2WD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E/4L65-E 🢒 Instrument Panel, Gages, and Console Component Views

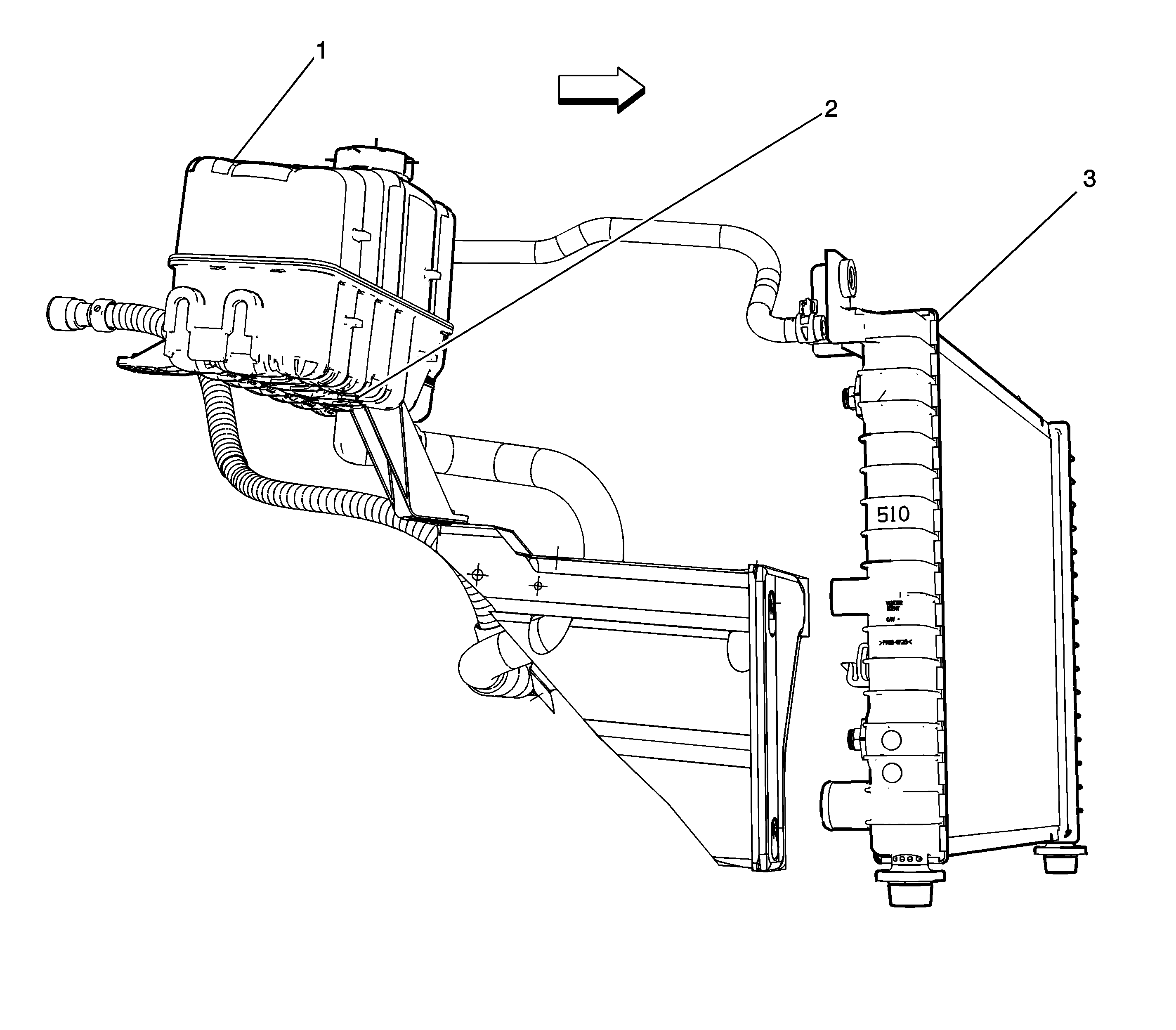

Figure 1:

RF of Engine Compartment


(1)	Coolant Recovery Reservoir
(2)	Coolant Level Switch
(3)	Radiator

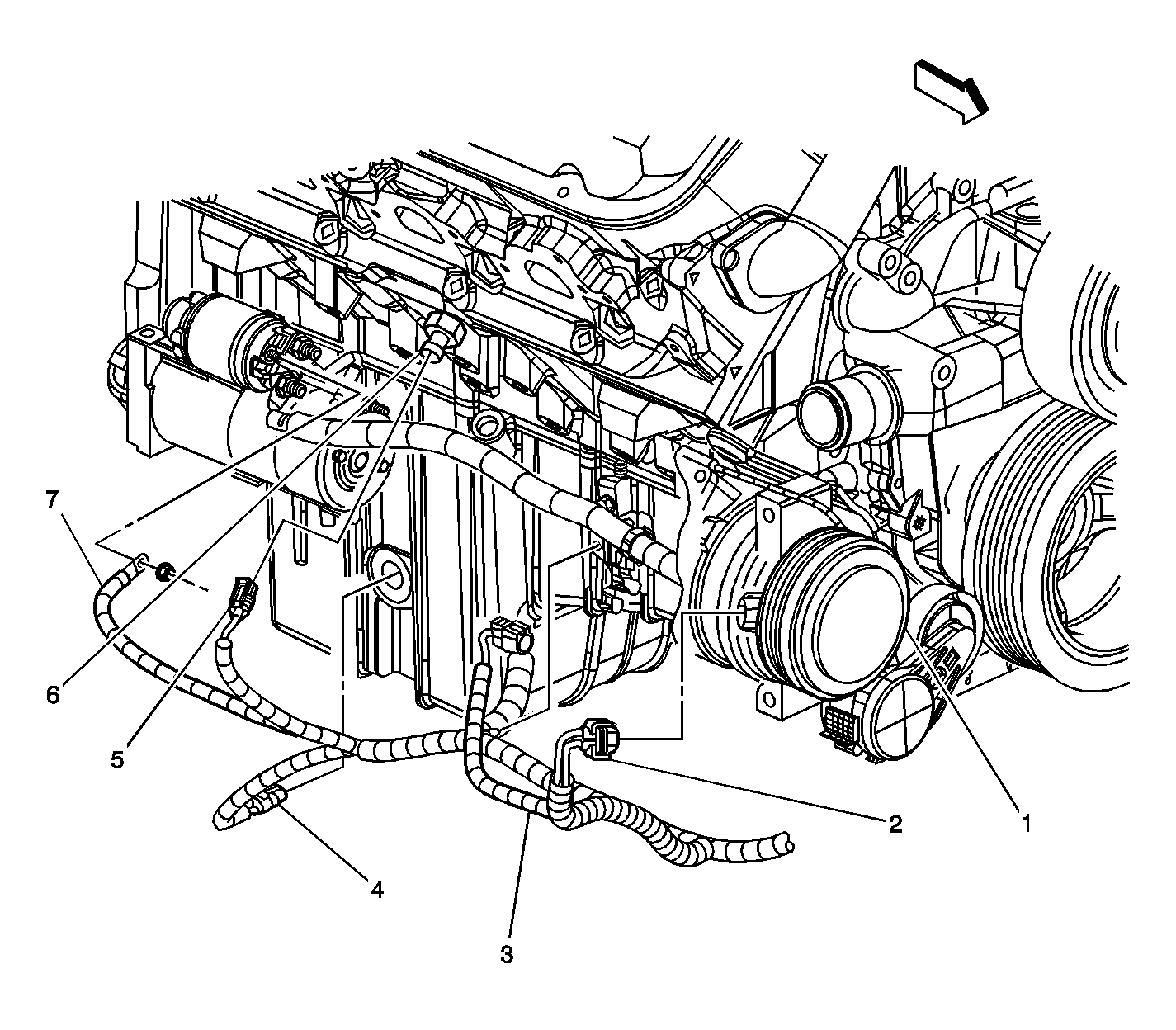

Figure 2:

Engine Oil Level Switch


(1)	A/C Compressor Clutch
(2)	A/C Compressor Clutch Connector
(3)	Engine Wiring Harness
(4)	Engine Oil Level Sensor Connector
(5)	Knock Sensor (KS) 2 Connector
(6)	Knock Sensor (KS) 2
(7)	Starter Relay Output (S-Terminal Feed)

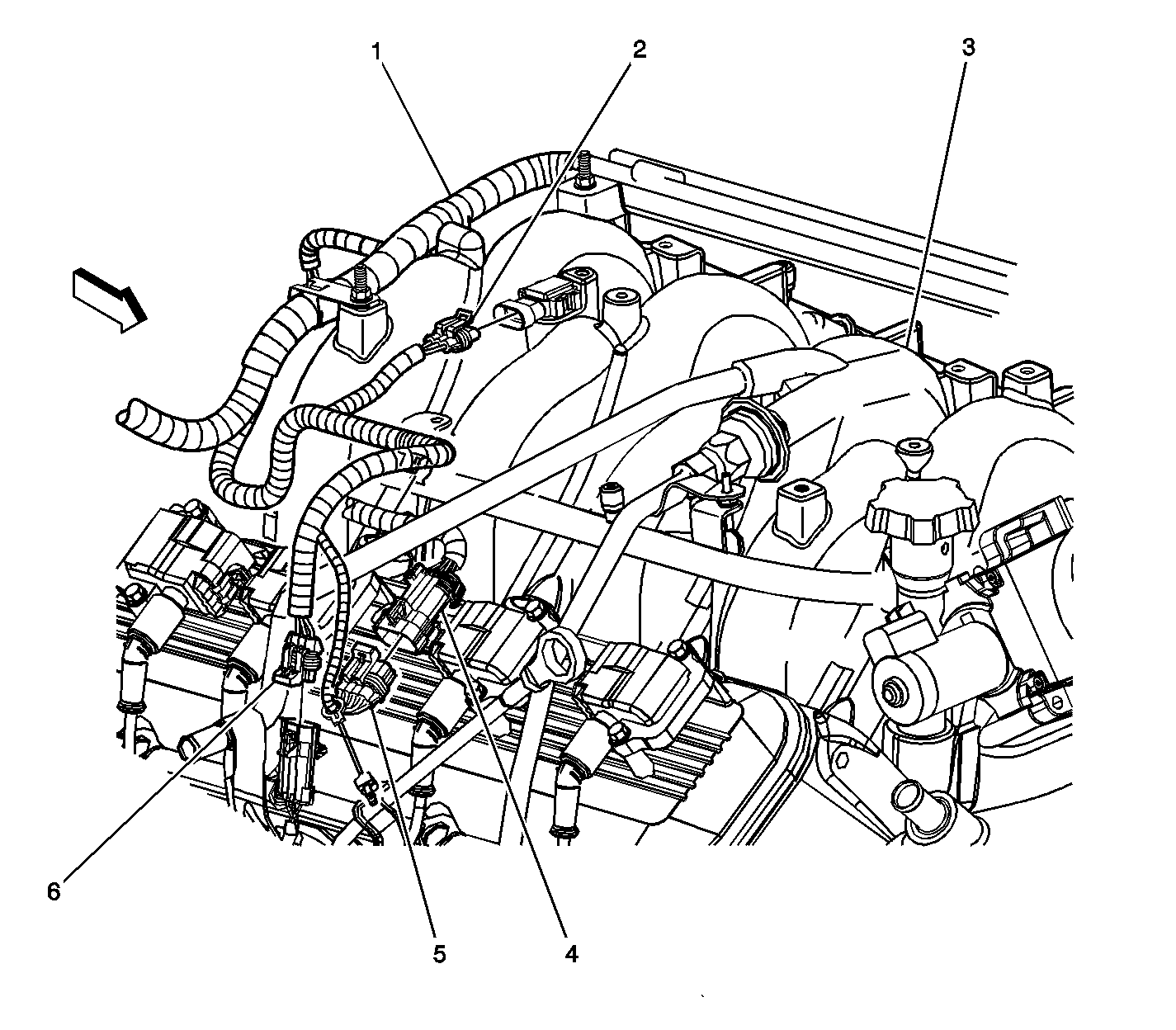

Figure 3:

Engine View-Upper Right (8.1L)


(1)	Engine Harness
(2)	Manifold Absolute Pressure (MAP) Sensor
(3)	Intake Manifold
(4)	Ignition Coil Connector-Harness Side
(5)	Ignition Coil Connector-Component Side
(6)	Engine Coolant Temperature (ECT) Sensor Connector

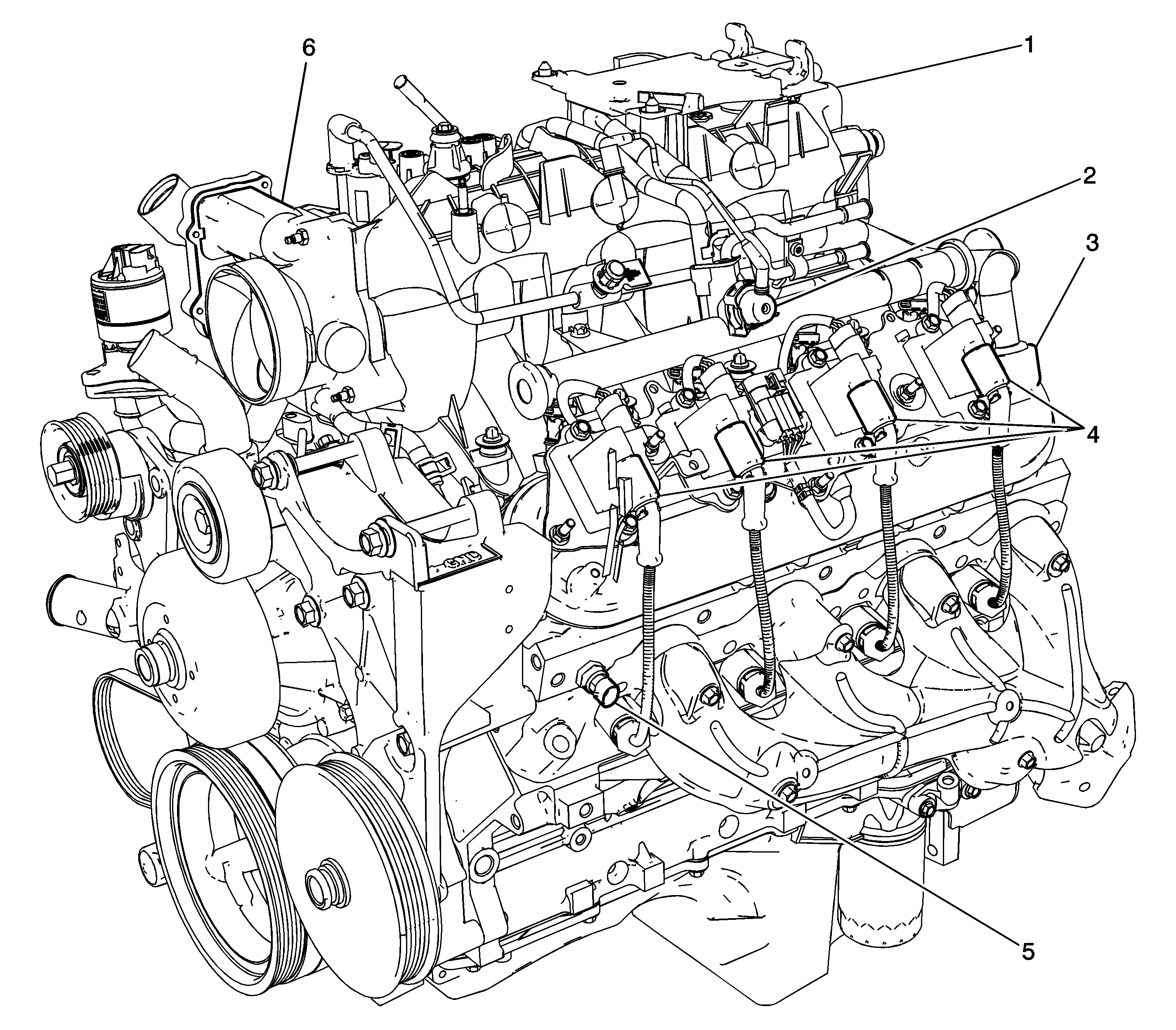

Figure 4:

Engine View-Left Side (5.3L, 6.0L)


(1)	Manifold Absolute Pressure (MAP) Sensor
(2)	Fuel Pressure Regulator
(3)	Positive Crankcase Ventilation (PCV) Valve
(4)	Left Bank Ignition Coils
(5)	Engine Coolant Temperature (ECT) Sensor
(6)	Throttle Body

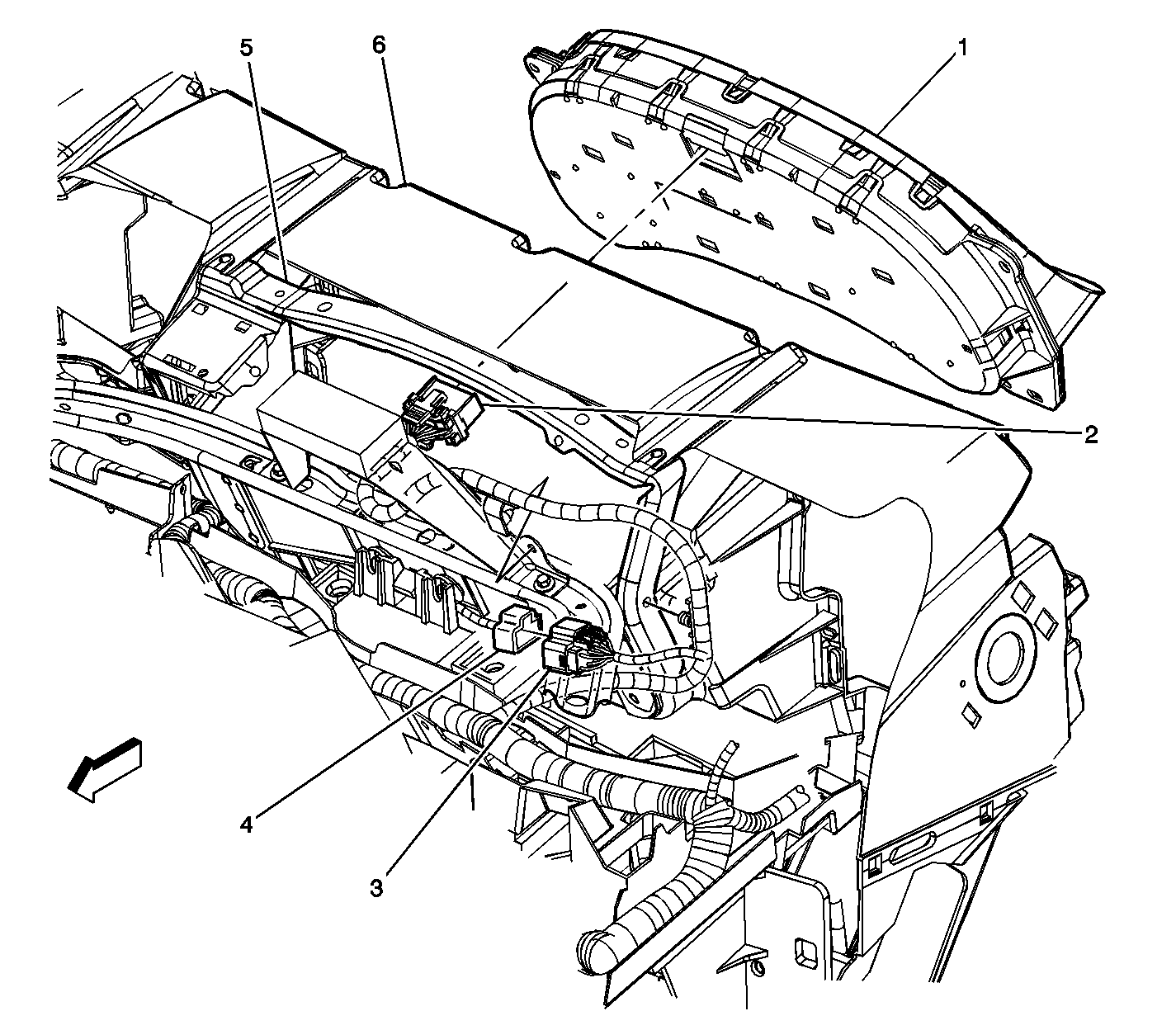

Figure 5:

Instrument Panel-Left Rear Top


(1)	Instrument Cluster
(2)	Instrument Cluster Connector
(3)	C214-I/P Side
(4)	C214-Headliner Side
(5)	Instrument Cluster Brace
(6)	Instrument Panel

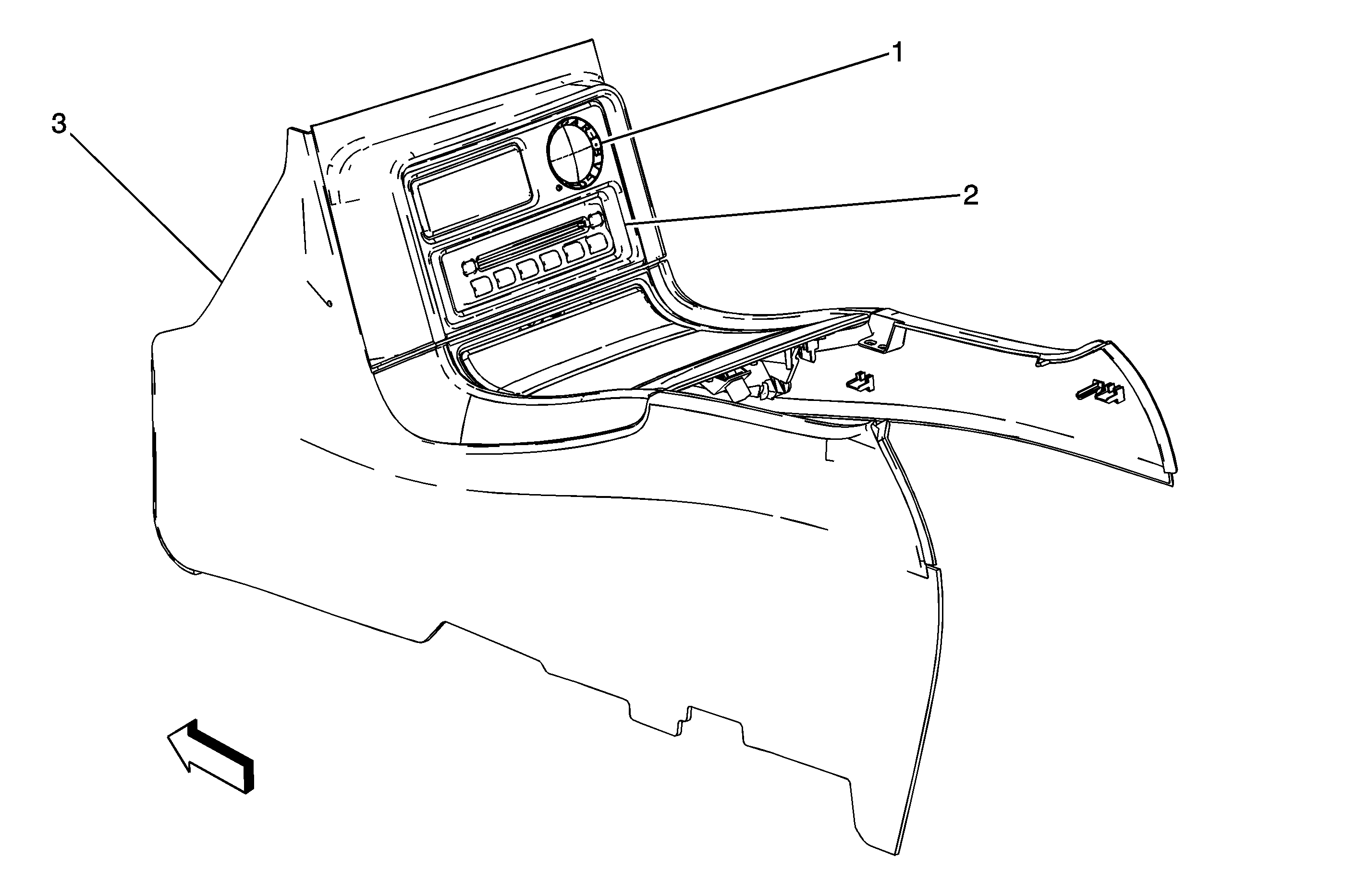

Figure 6:

Analog Clock


(1)	Analog Clock
(2)	Remote Playback Device-CD Player
(3)	Console Extension

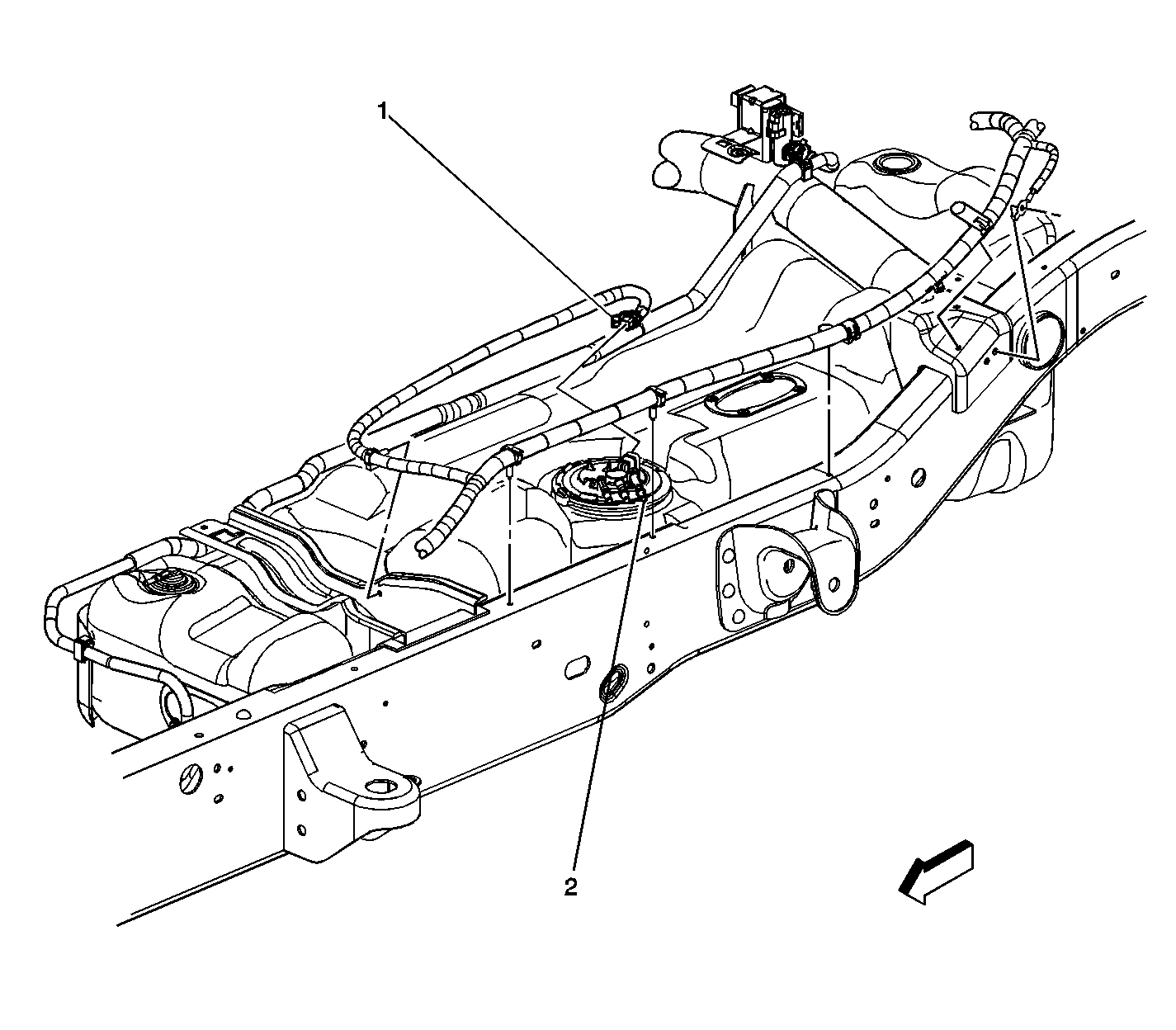

Figure 7:

Fuel Pump and Sender Assembly-Primary


(1)	Fuel Pump and Sender Assembly-Primary Connector
(2)	Fuel Pump and Sender Assembly-Primary

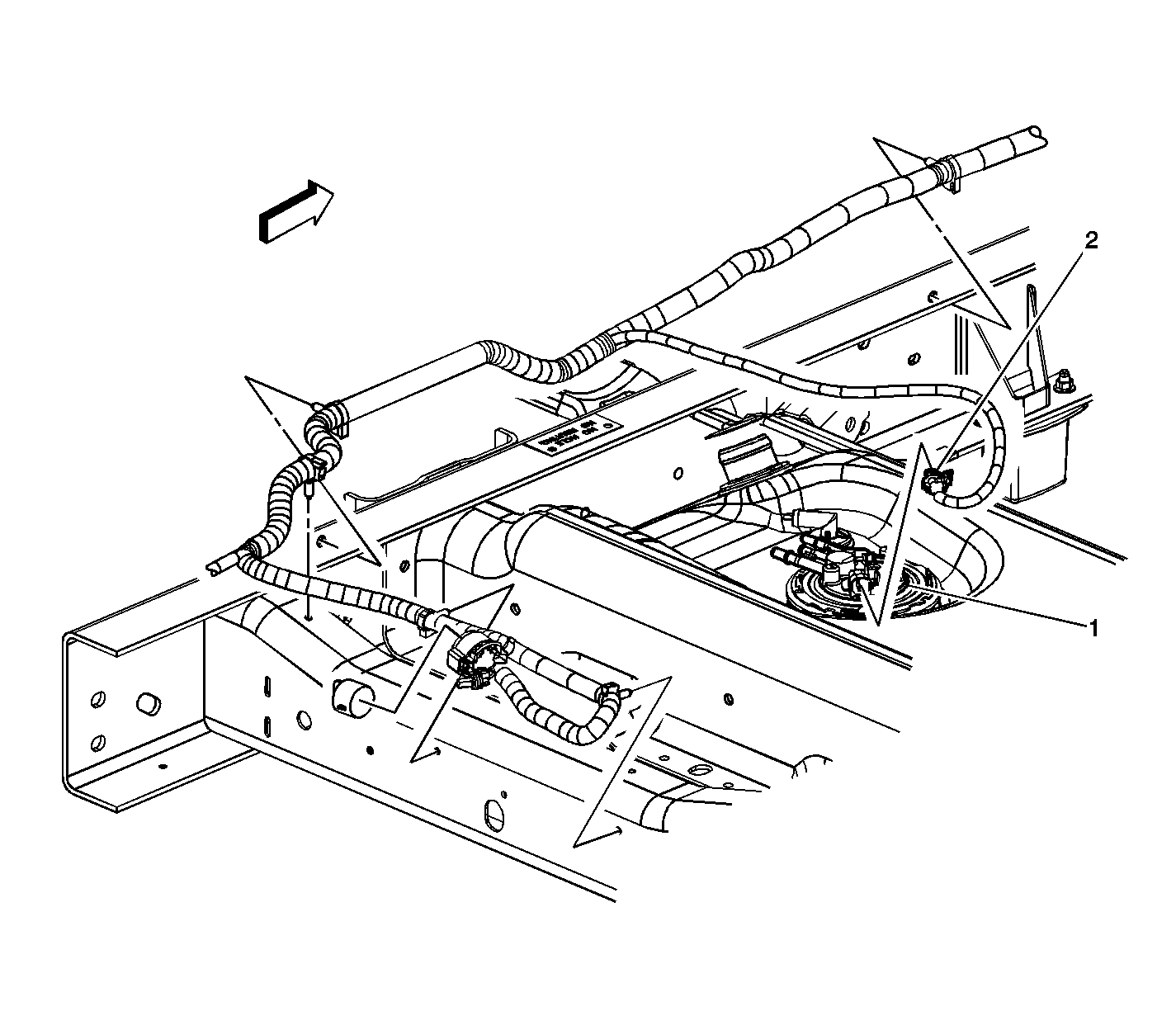

Figure 8:

Fuel Pump and Sender Assembly-Secondary


(1)	Fuel Pump and Sender Assembly-Secondary
(2)	Fuel Pump and Sender Assembly-Secondary Connector

Figure 9:

Engine Oil Pressure (EOP) Sensor (4.8L, 5.3L 6.0L)


(1)	Engine Oil Pressure (EOP) Sensor
(2)	Camshaft Position (CMP) Sensor
(3)	Camshaft Position (CMP) Sensor Connector

Figure 10:

Engine Oil Pressure (EOP) Sensor (8.1L)


(1)	Exhaust Gas Recirculation (EGR) Connector
(2)	Exhaust Gas Recirculation (EGR) Valve
(3)	Crankshaft Position (CKP) Sensor Connector
(4)	Crankshaft Position (CKP) Sensor
(5)	Engine Oil Pressure (EOP) Sensor
(6)	Engine Oil Pressure (EOP) Sensor Connector

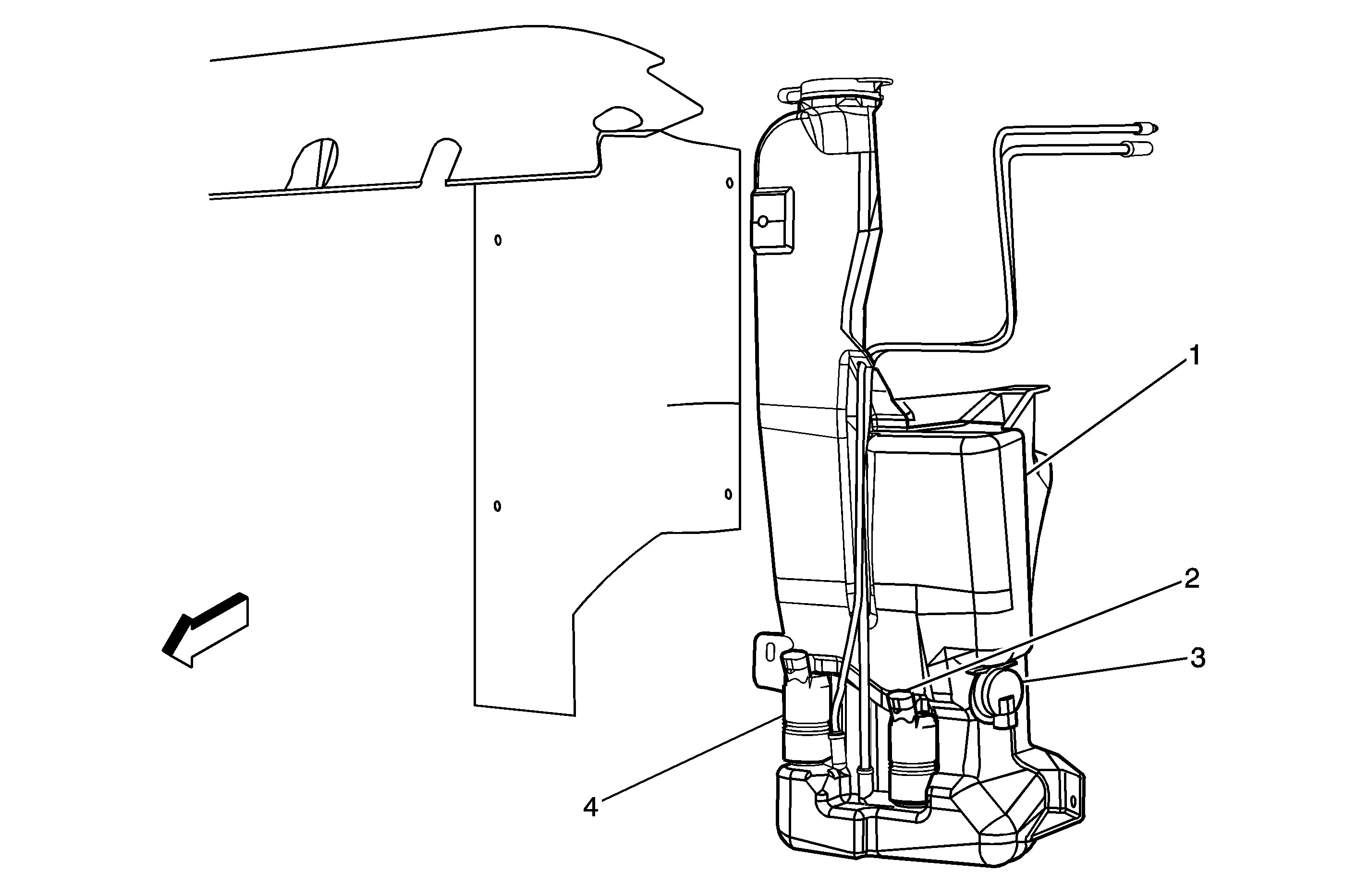

Figure 11:

LF Corner of Vehicle Wiper/Washer Components


(1)	Windshield Washer Reservoir
(2)	Windshield Washer Fluid Pump-Front
(3)	Washer Fluid Level Sensor
(4)	Windshield Washer Fluid Pump-Rear (C25)
