Makes 🢒 Chevrolet 🢒 2004 🢒 Tahoe - 2WD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E/4L65-E 🢒 Lighting Systems Component Views
Figure 1:

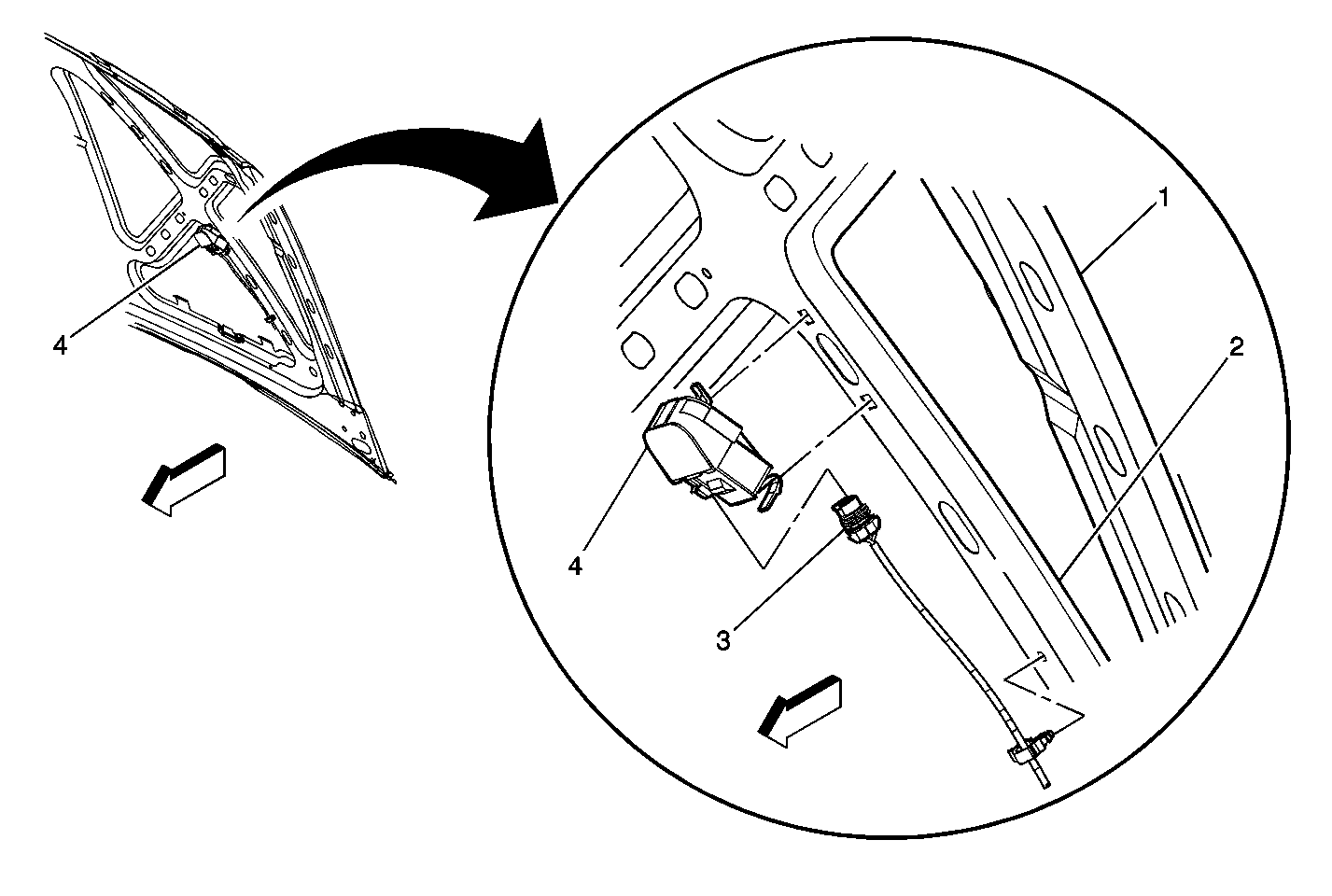

Hood
Object Number: 310026 Size: MF
(1)Hood
(2)Hood Reinforcement
(3)Underhood Lamp Assembly Electrical Connector
(4)Underhood Lamp Assembly
(4)Underhood Lamp Assembly
Figure 2:

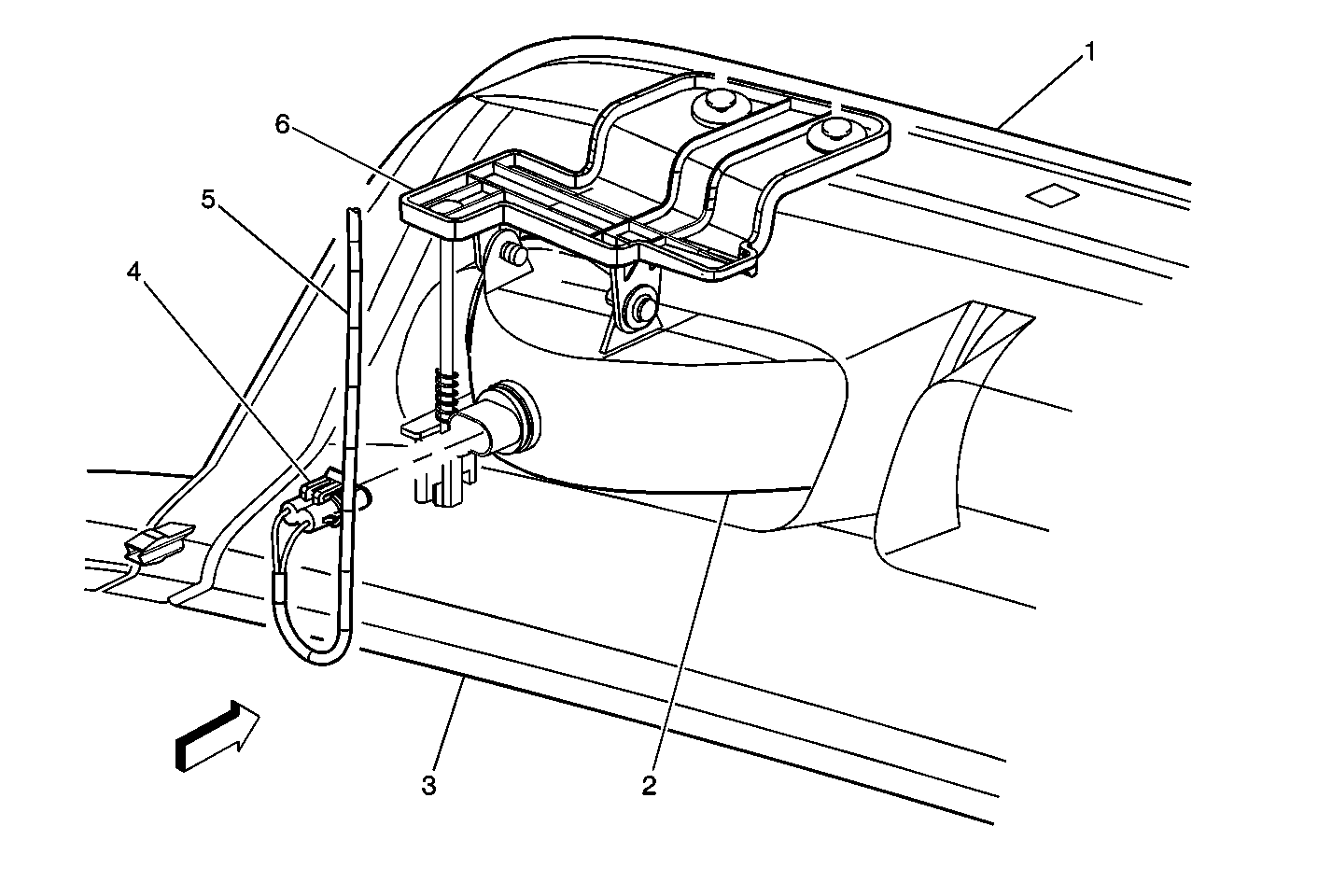

LF Corner of the Bumper
Object Number: 350006 Size: MF
(1)Bumper
(2)Fog Lamp - LF
(3)Air Deflector
(4)Fog Lamp - LF Connector
(5)Fog Lamp Harness
(6)Fog Lamp Bracket (Part of Fog Lamp)
Figure 3:

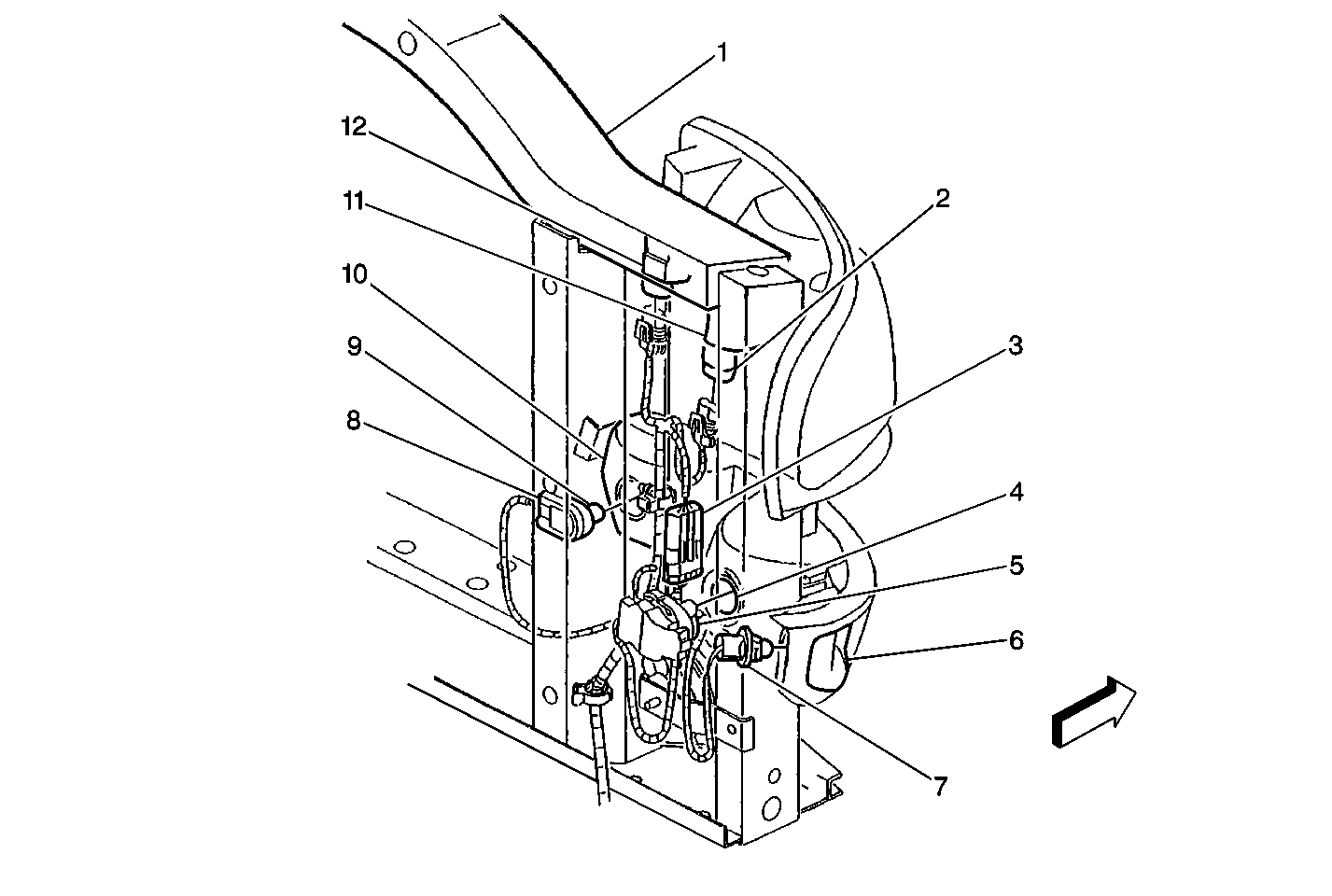

RF Corner of the Vehicle -- Lighting Components
Object Number: 310805 Size: MF
(1)Upper Radiator Support - Tie Bar
(2)Headlamp-Low Beam - Right
(3)Snowplow - Option - Connector C127
(4)Park/Turn Signal Lamp - RF
(5)Park/Turn Signal Socket - RF
(6)Park/Turn Signal Lens - RF
(7)Marker Lamp Socket - RH
(8)Daytime Running Lamp (DRL) Socket - RH
(9)DRL Lamp - RH
(10)DRL Lens - RH
(11)Headlamp Assembly - Right
(12)Headlamp-High Beam - Right
Figure 4:

LF Corner of the Vehicle -- Lighting Components
Object Number: 310802 Size: MF
(1)Upper Radiator Support - Tie Bar
(2)Headlamp Assembly-LF
(3)Headlamp-High Beam Connector-LF
(4)Daytime Running Lamp (DRL)-LF
(5)DRL Socket-LF
(6)Windshield Washer Reservoir
(7)Park/Turn Signal Lamp Socket-LF
(8)Marker Socket-LF
(9)Marker Lamp-LF
(10)Park/Turn Signal Lamp-LF
(11)Snowplow - Option - Connector C125
(12)Headlamp-Low Beam Connector-LF
(13)Marker Lens-LF
Figure 5:

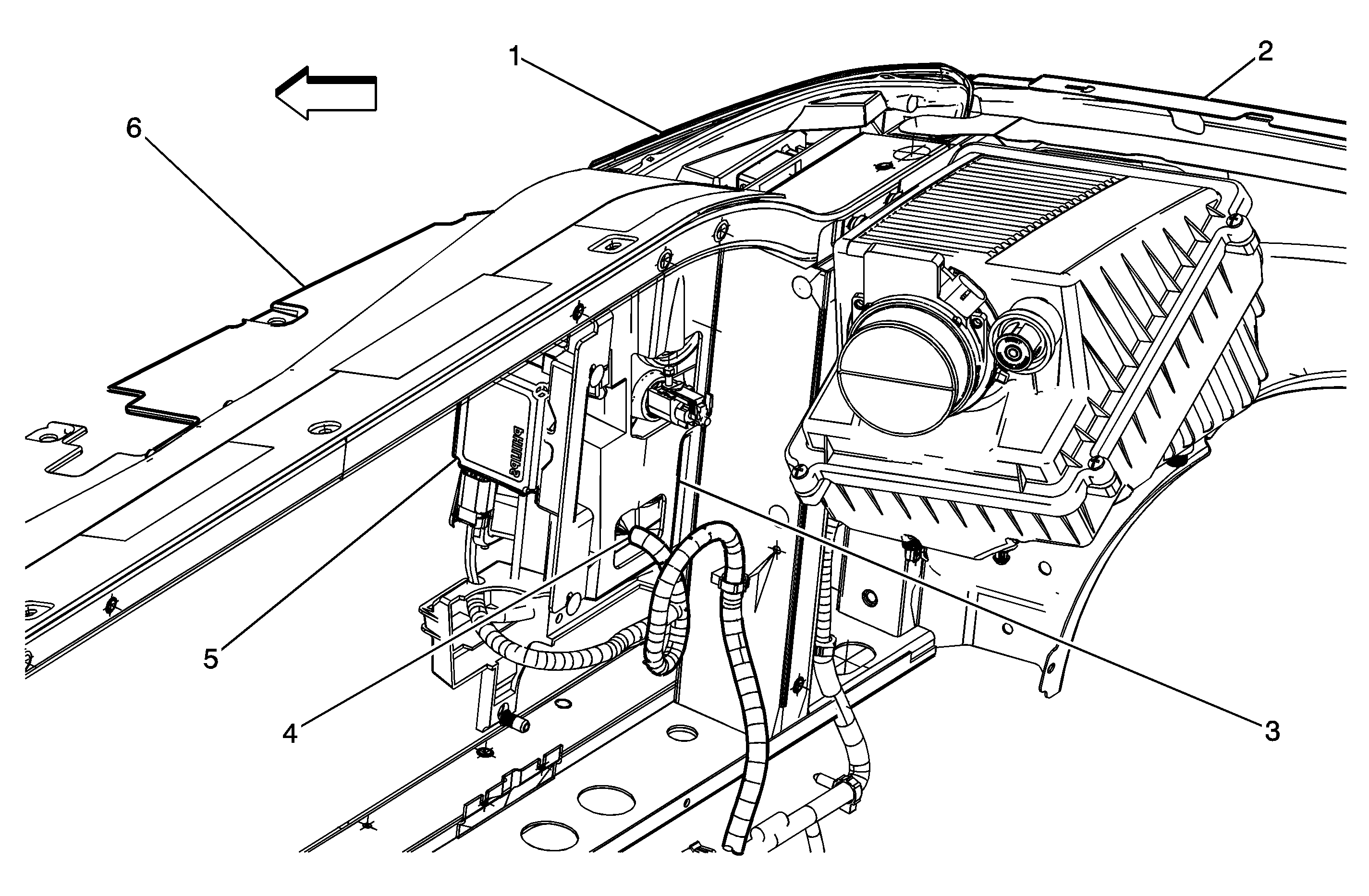

RF Headlamp Assembly -- Escalade -- LF Similar
Object Number: 1284799 Size: MF
(1)Headlamp Assembly
(2)Fender
(3)Headlamp Support Housing
(4)Headlamp Assembly Connector
(5)HID Headlamp Ballast
(6)Radiator Upper Air Baffle
Figure 6:

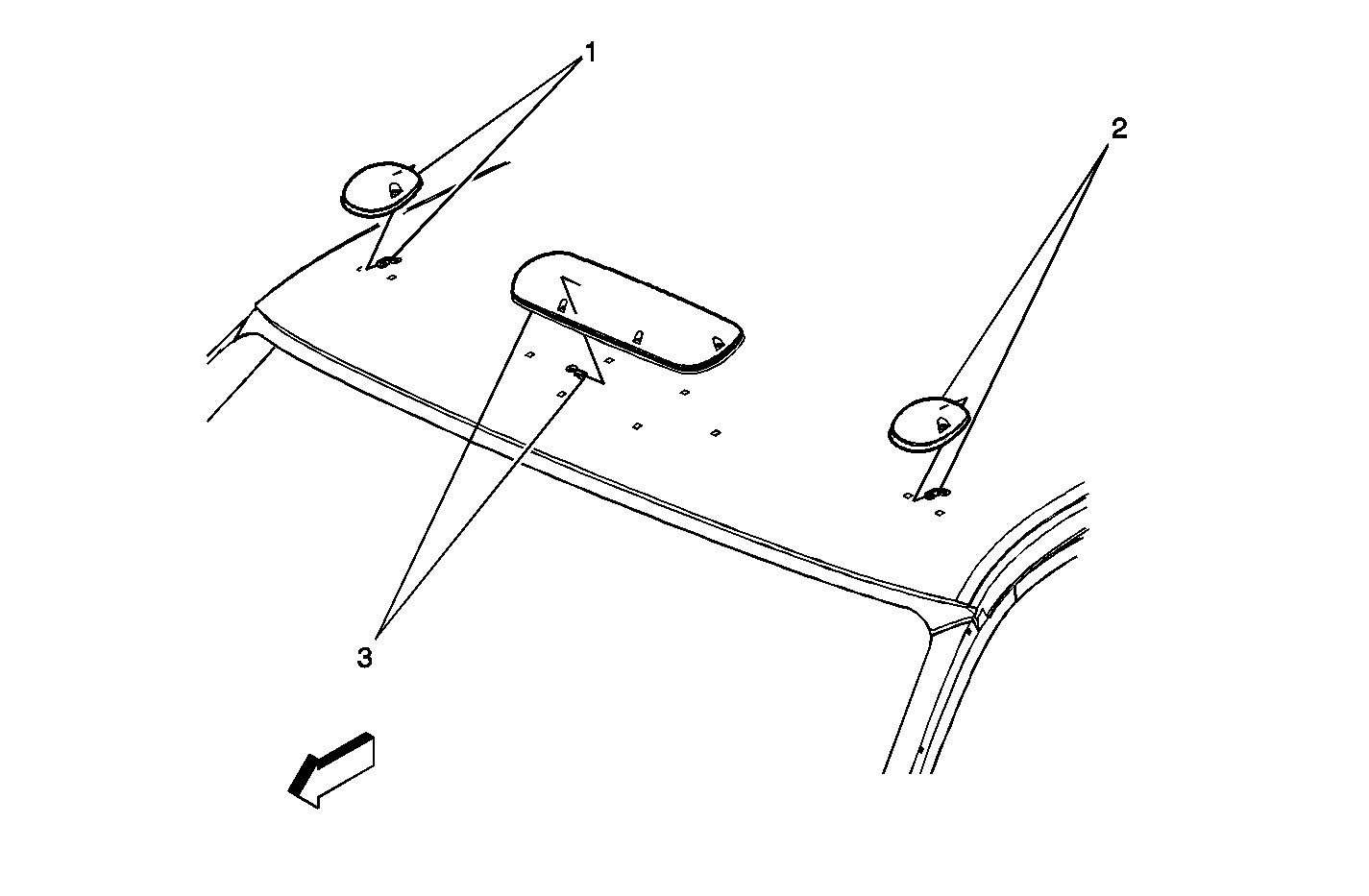

Roof Marker and Clearance Lamps
Object Number: 762107 Size: MF
(1)Roof Marker Lamp and Harness - Right
(2)Roof Marker Lamp and Harness - Left
(3)Clearance Lamps and Harness
Figure 7:

Sunload Sensor Assembly
Object Number: 310130 Size: MF
(1)Instrument Panel Bracket
(2)Sunload Sensor Harness
(3)Sunload Sensor Connector
(4)Sunload Sensor Assembly
(5)Instrument Panel
Figure 8:

Steering Column Components
Object Number: 349986 Size: LF
(1)Hazard Button
(2)High Beams/Cruise/Wiper/Washer
(3)Cruise Control Switches
(4)Tilt Steering Actuator
(5)Inflatable Restraint Harness
(6)C201 Inline Connector
Figure 9:

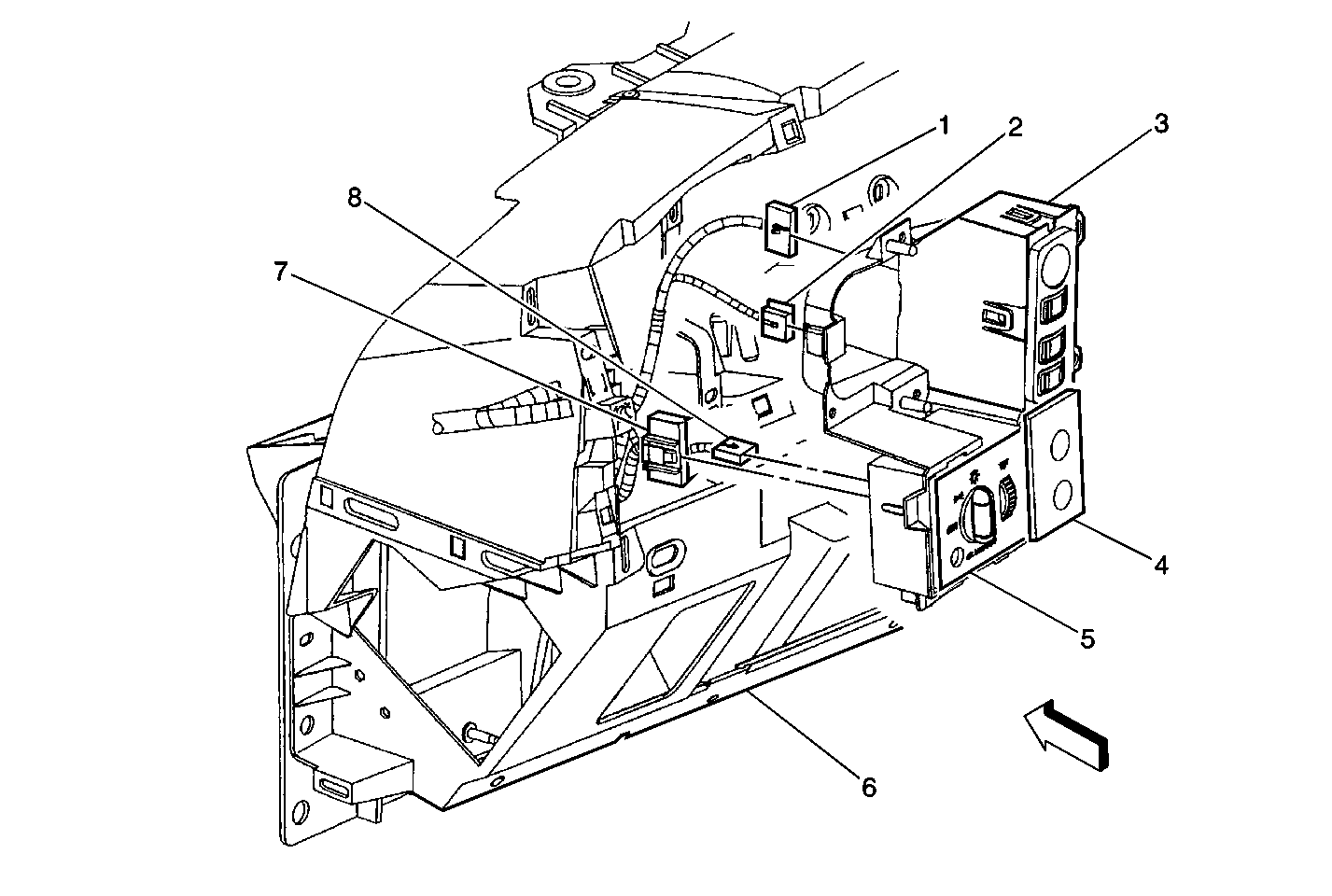

Left Side of the I/P -- Switches
Object Number: 310113 Size: MF
(1)Automatic Transfer Case (ATC) Electrical Connector
(2)Automatic Transfer Case (ATC) Electrical Connector
(3)Automatic Transfer Case (ATC) Select Switch
(4)Cargo/Fog Lamp Switch
(5)Headlamp and Panel Dimmer Switch
(6)Instrument Panel
(7)Headlamp and Panel Dimmer Switch Electrical Connector
(8)Cargo/Fog Lamp Switch Electrical Connector
Figure 10:

Lower Left Side of the I/P Components
Object Number: 310145 Size: MF
(1)Fuse Block-Left I/P Connector
(2)Body Control Module (BCM) Connectors
(3)Splice Pack SP205
(4)Fuse Block-Left I/P
(5)Data Link Connector (DLC)
(6)Courtesy Lamp-Left
(7)Courtesy Lamp Socket-Left
(8)Support to Dash-Left
(9)Right Windshield Pillar Trim Panel
Figure 11:

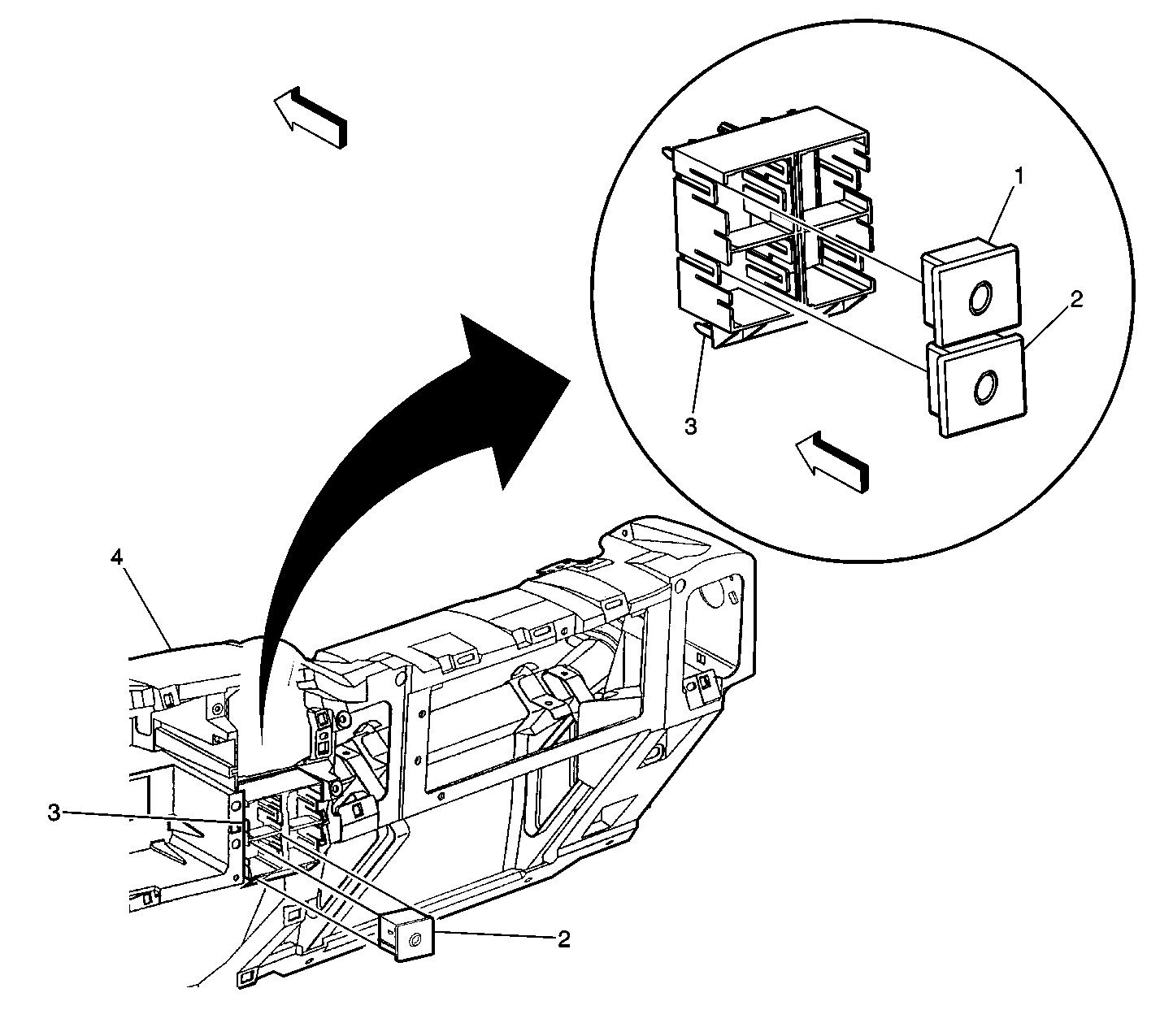

Center of the I/P -- Accessory Switches
Object Number: 350001 Size: LF
(1)Fog Lamp Switch
(2)Roof Beacon Switch
(2)Roof Beacon Switch
(3)Accessory Switch Housing
(3)Accessory Switch Housing
(4)Instrument Panel
Figure 12:

Lower Center of the I/P Components
Object Number: 310152 Size: MF
(1)Ashtray Lamp Socket
(2)Bulb
(3)Ashtray Lamp Shield
(4)Instrument Panel
(5)Accessory Power Outlet
(6)Cigar Lighter Assembly
Figure 13:

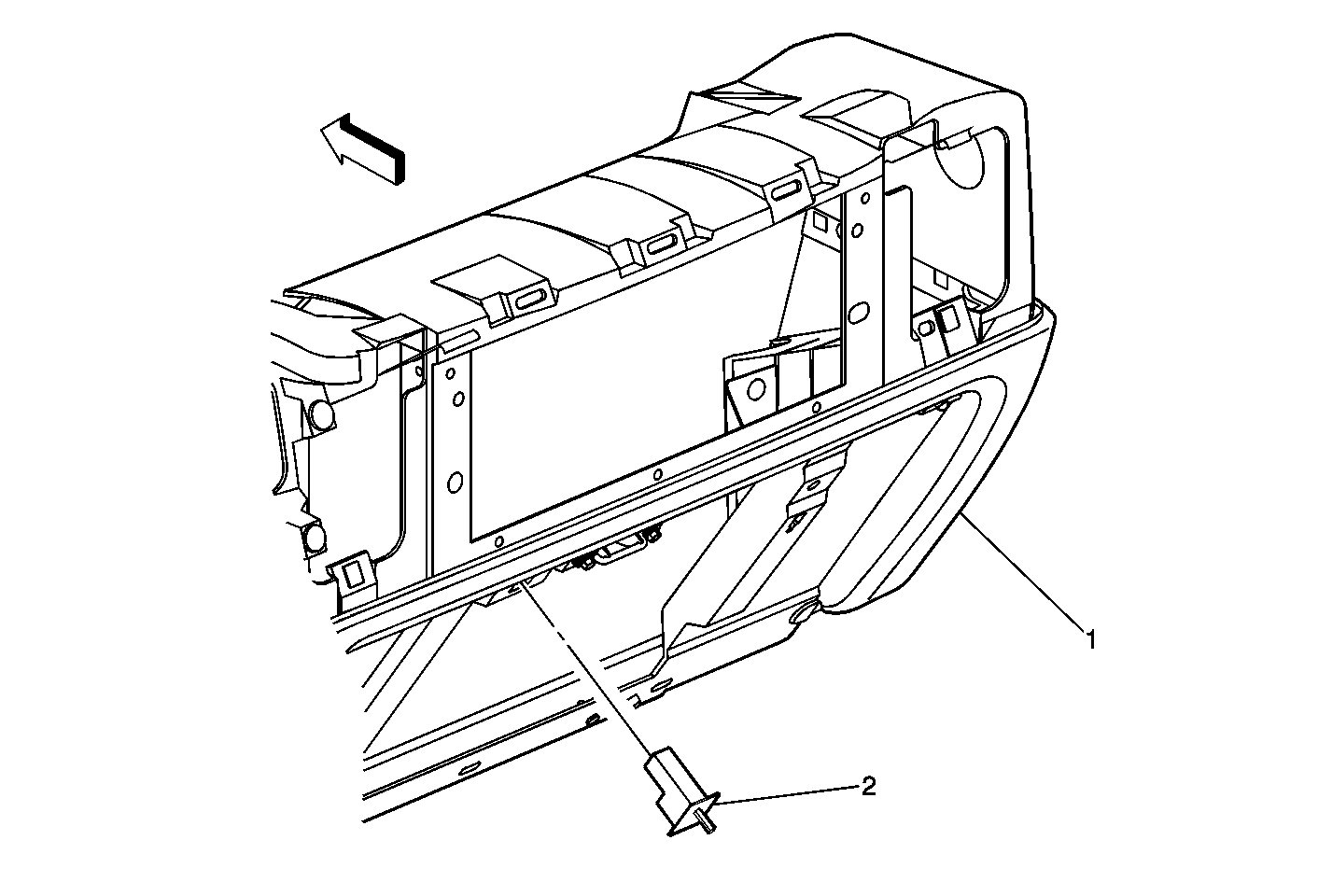

Instrument Panel Compartment Lamp
Object Number: 350014 Size: MF
(1)Instrument Panel
(2)Instrument Panel Compartment Lamp and Switch
Figure 14:

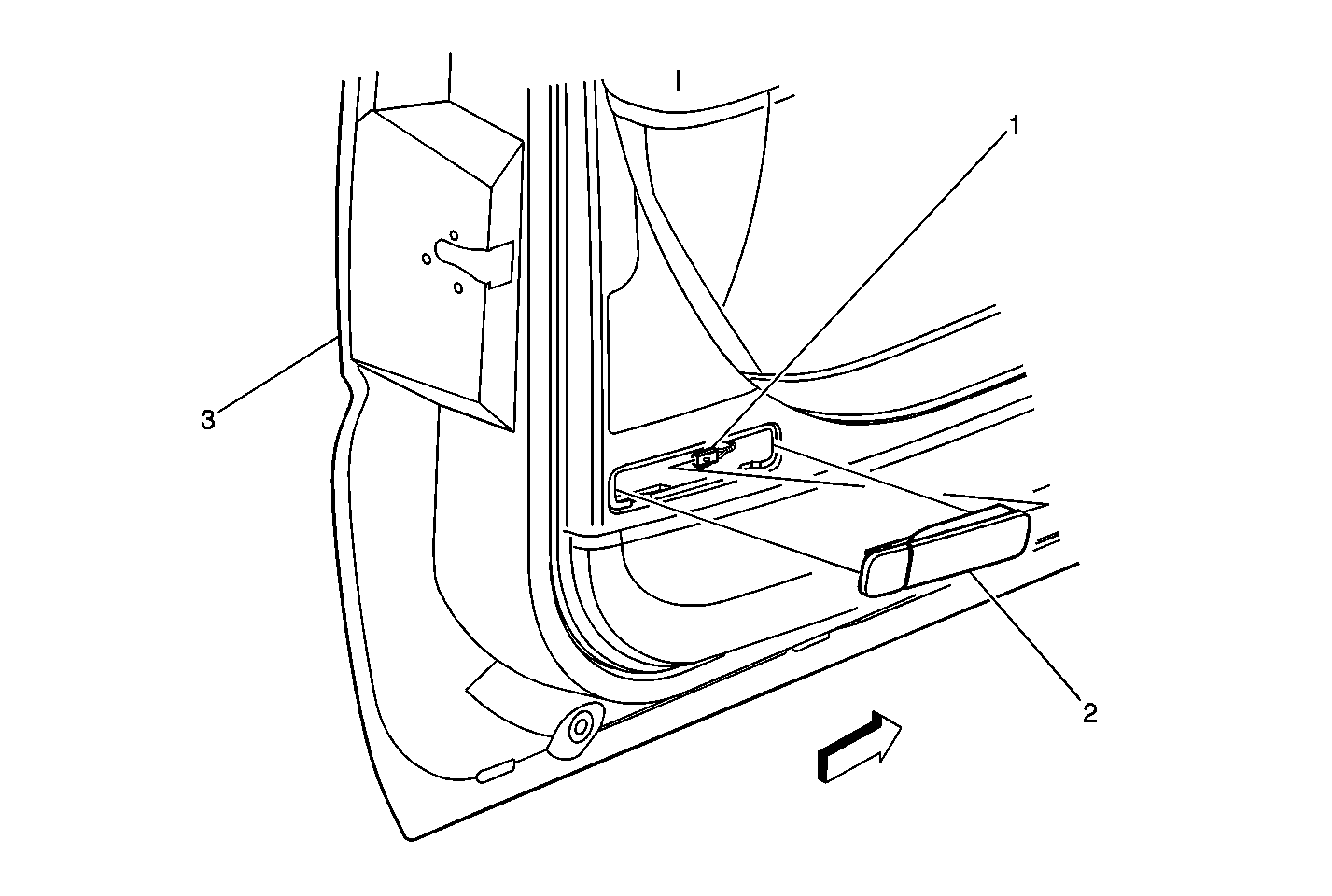

Driver Door Panel Components -- Courtesy Lamp
Object Number: 350018 Size: MF
(1)Door Courtesy Lamp Electrical Connector
(2)Door Courtesy Lamp
(3)Left Door
Figure 15:

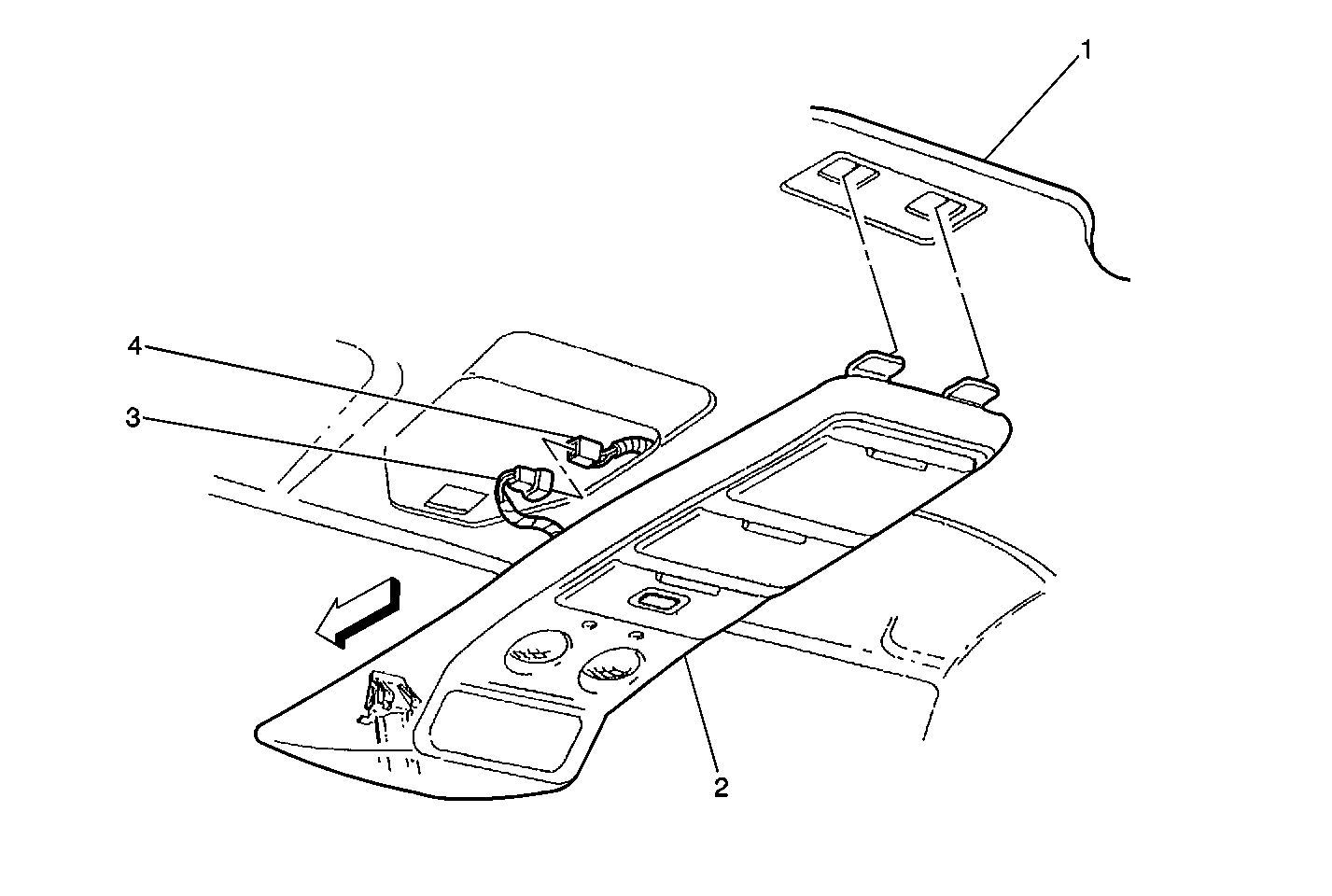

Overhead Console
Object Number: 350007 Size: MF
(1)Headliner
(2)Overhead Console
(3)Overhead Console Electrical Connector
(4)Headliner Harness Electrical Connector
Figure 16:

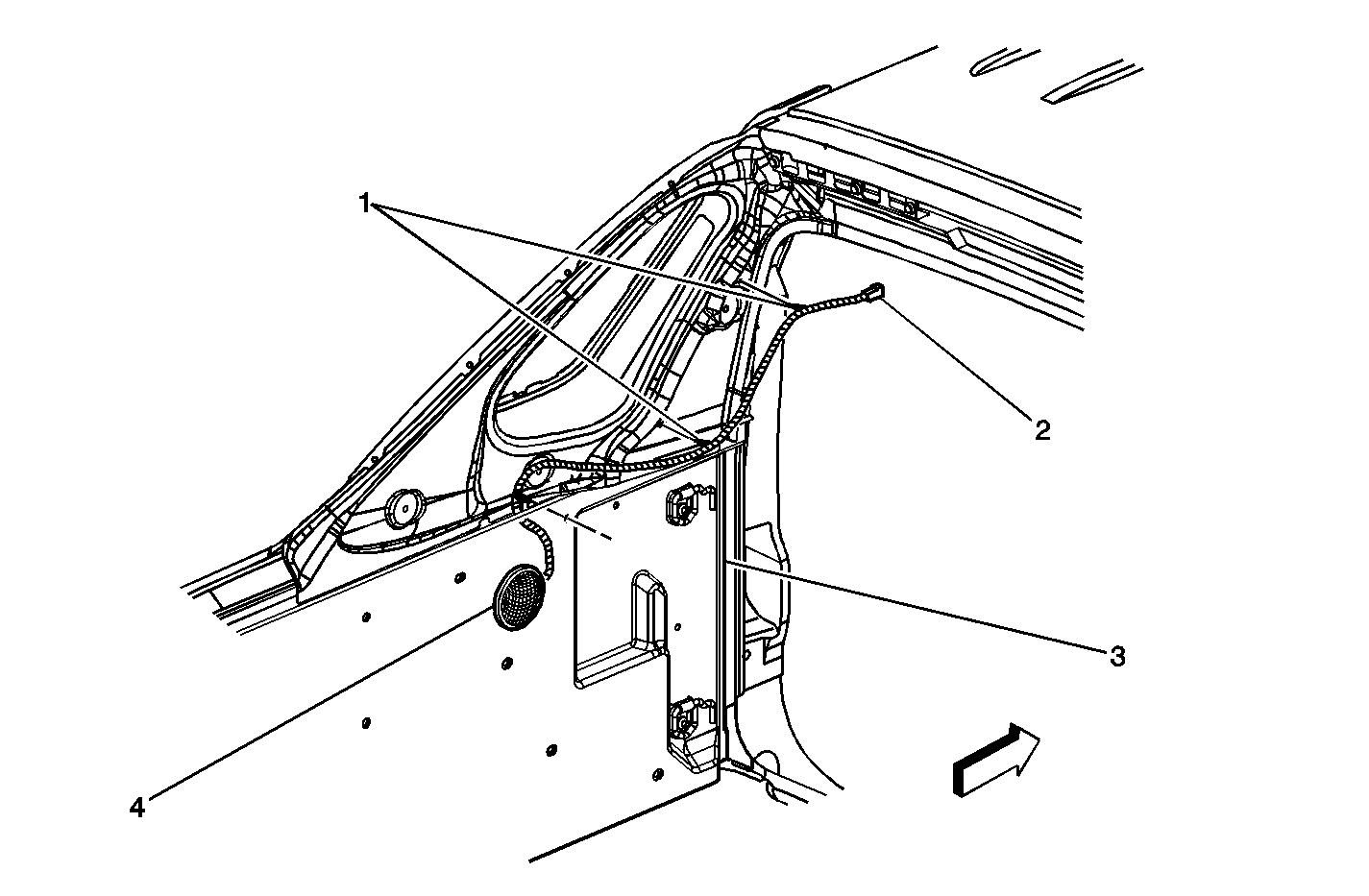

Cargo Lamps (Avalanche/Escalade EXT)
Object Number: 781680 Size: MF
(1)Cargo Lamp Harness
(2)Cargo Lamp Harness Connector
(3)Cargo Box/Stowage Box
(4)Cargo Lamp
Figure 17:

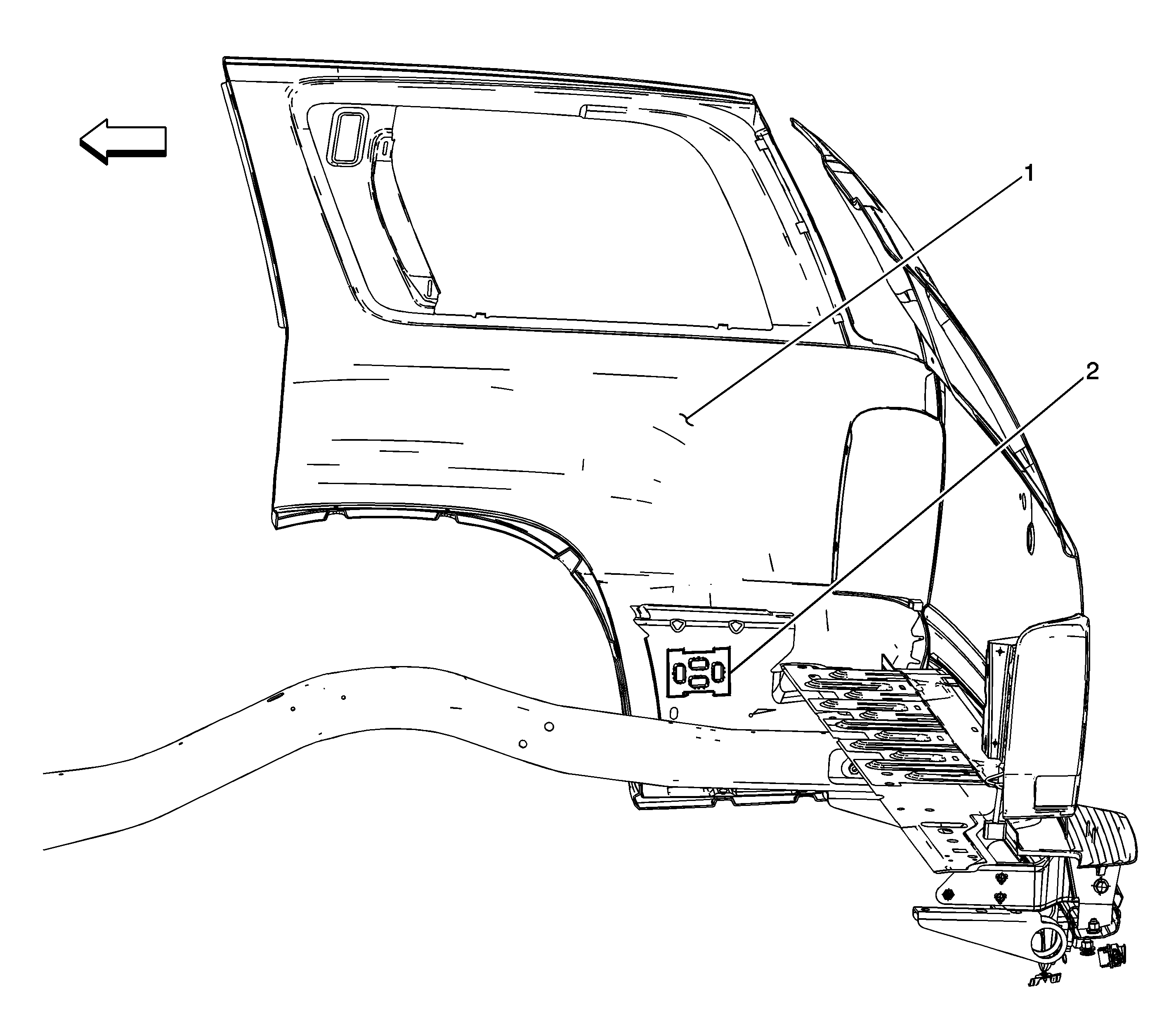

Lower RR Body Panel
Object Number: 1408354 Size: LF
(1)Body Panel - RH
(2)Junction Block - Rear Lamps
Figure 18:

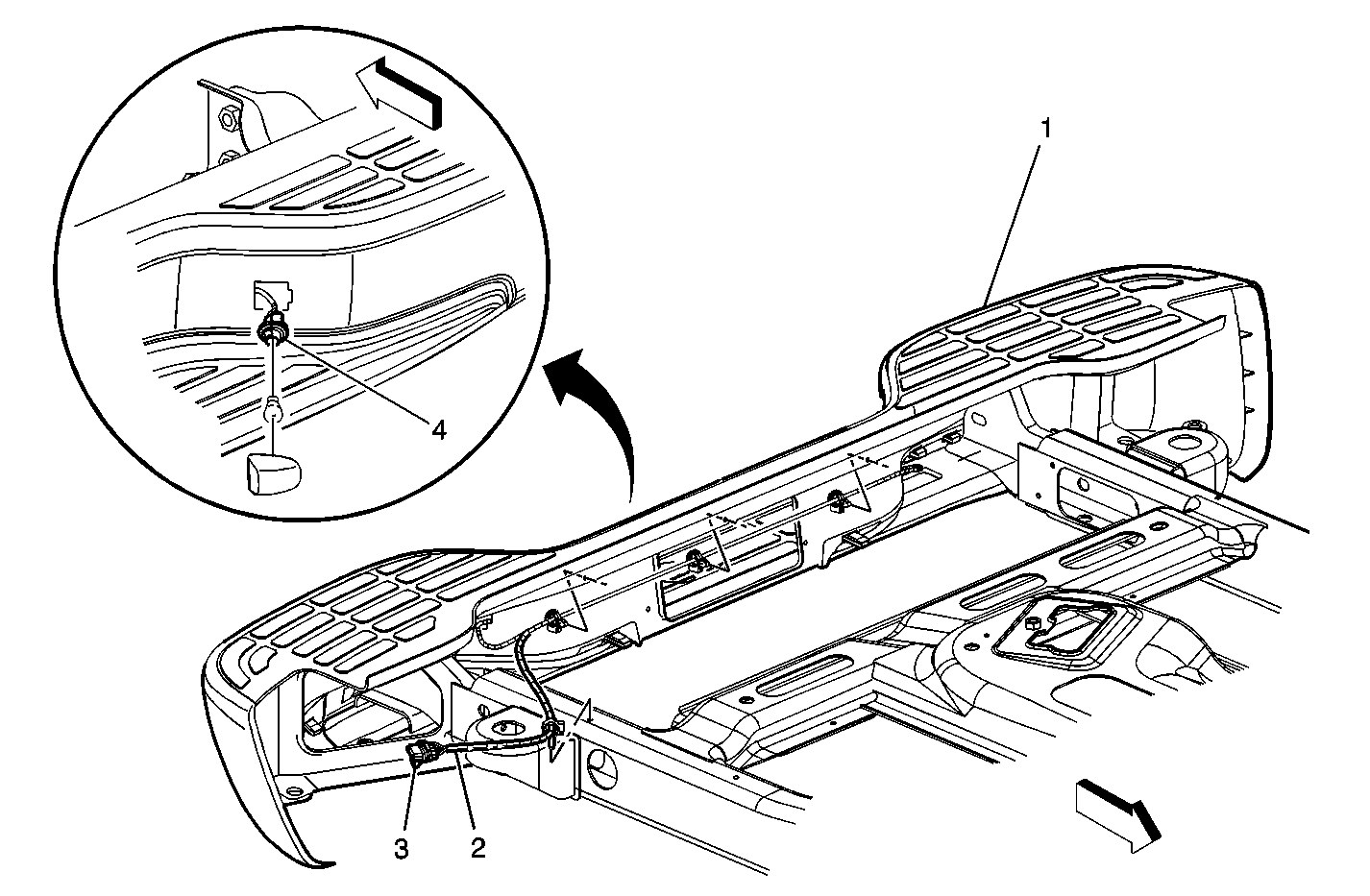

Rear Bumper (Utility)
Object Number: 623140 Size: MF
(1)Rear Bumper
(2)Tail Lamp Jumper Harness
(3)Junction Block Connector C3
(4)License Plate Lamp-RH (LH similar)
Figure 19:

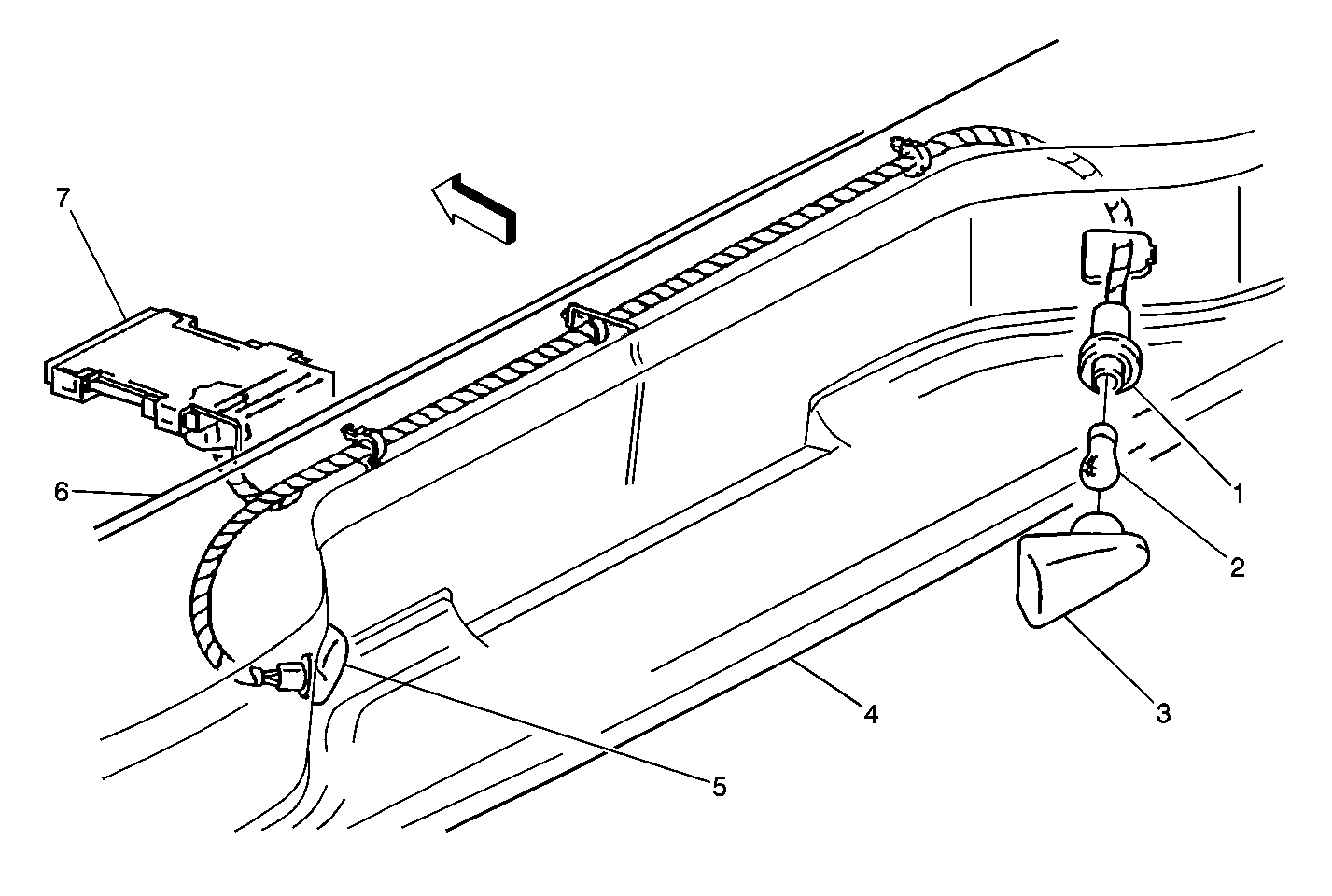

License Lamps
Object Number: 309881 Size: MF
(1)Lamp Socket
(2)Bulb
(3)RH License Lamp
(4)Bumper
(5)LH License Lamp
(6)Rear Cross Sill
(7)Rear Lamps Bussing Block
Figure 20:

Trailer Wiring Harness
Object Number: 349960 Size: MF
(1)Trailer Wiring Connector
(2)Trailer Wiring Receptacle
(3)Frame
(4)Trailer Hitch Receiver
