Rear Wheel Steering Component Views. Chevrolet Tahoe

For 1990-2009 cars

Makes 🢒 Chevrolet 🢒 2004 🢒 Tahoe - 2WD 🢒 Steering 🢒 Rear Wheel Steering 🢒 Rear Wheel Steering Component Views

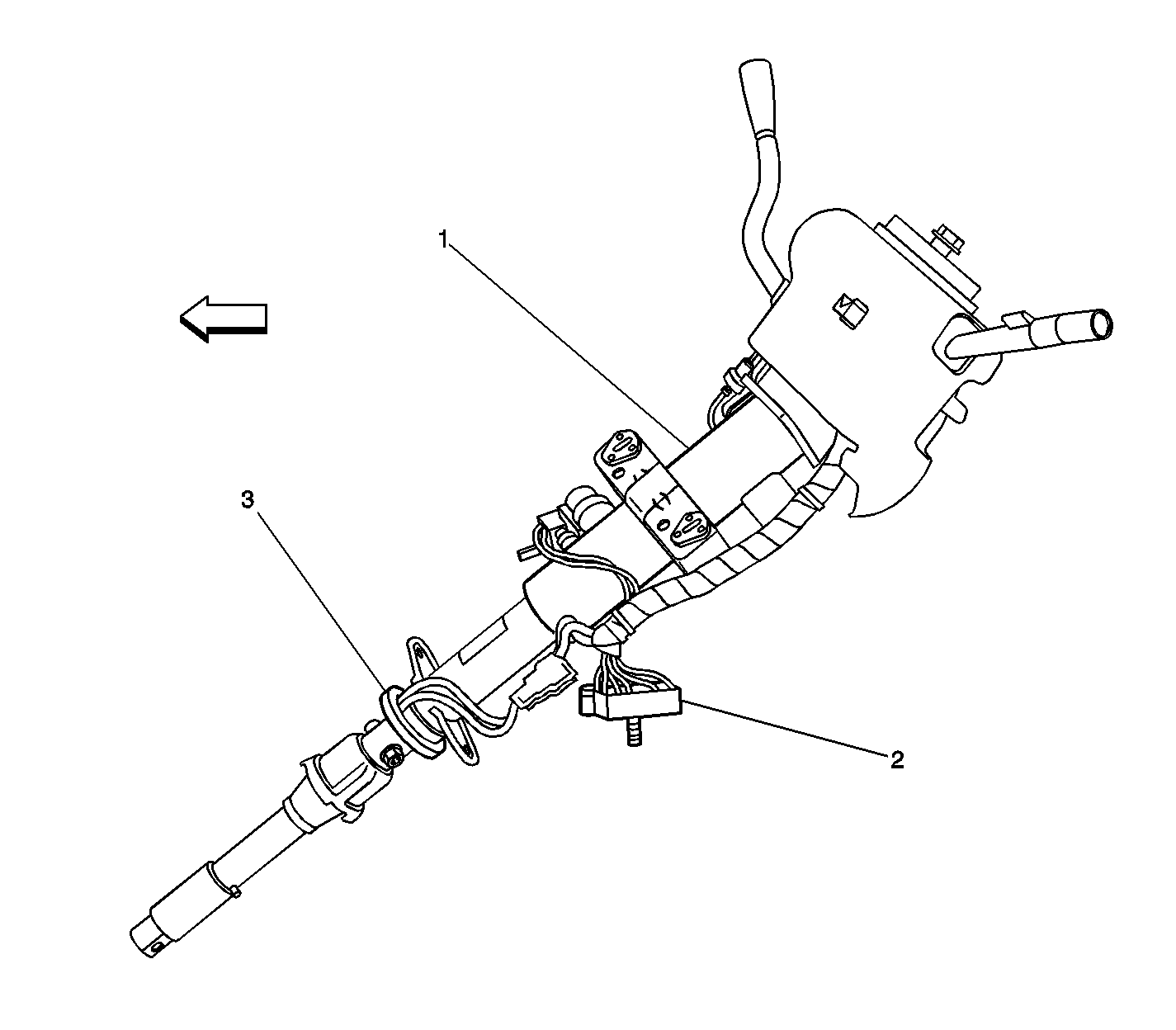

Figure 1:


(1)	Steering Column
(2)	C201
(3)	Steering Wheel Speed/Position Sensor

Figure 2:


(1)	Mounting Bracket
(2)	Rear Wheel Steering Control Module
(3)	Frame

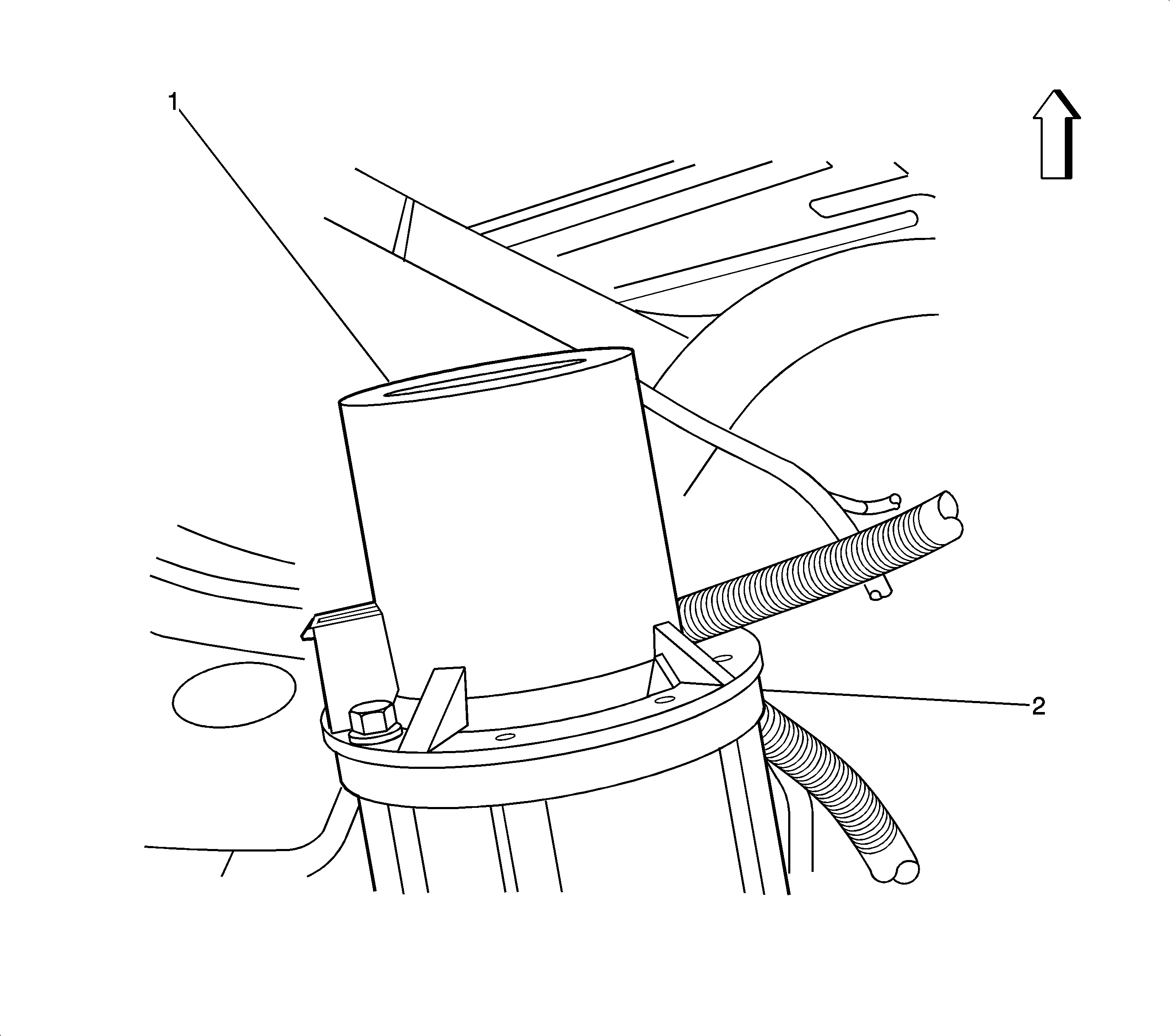

Figure 3:


(1)	Rear Steering Gear Motor
(2)	Steering Gear Assembly

Figure 4:

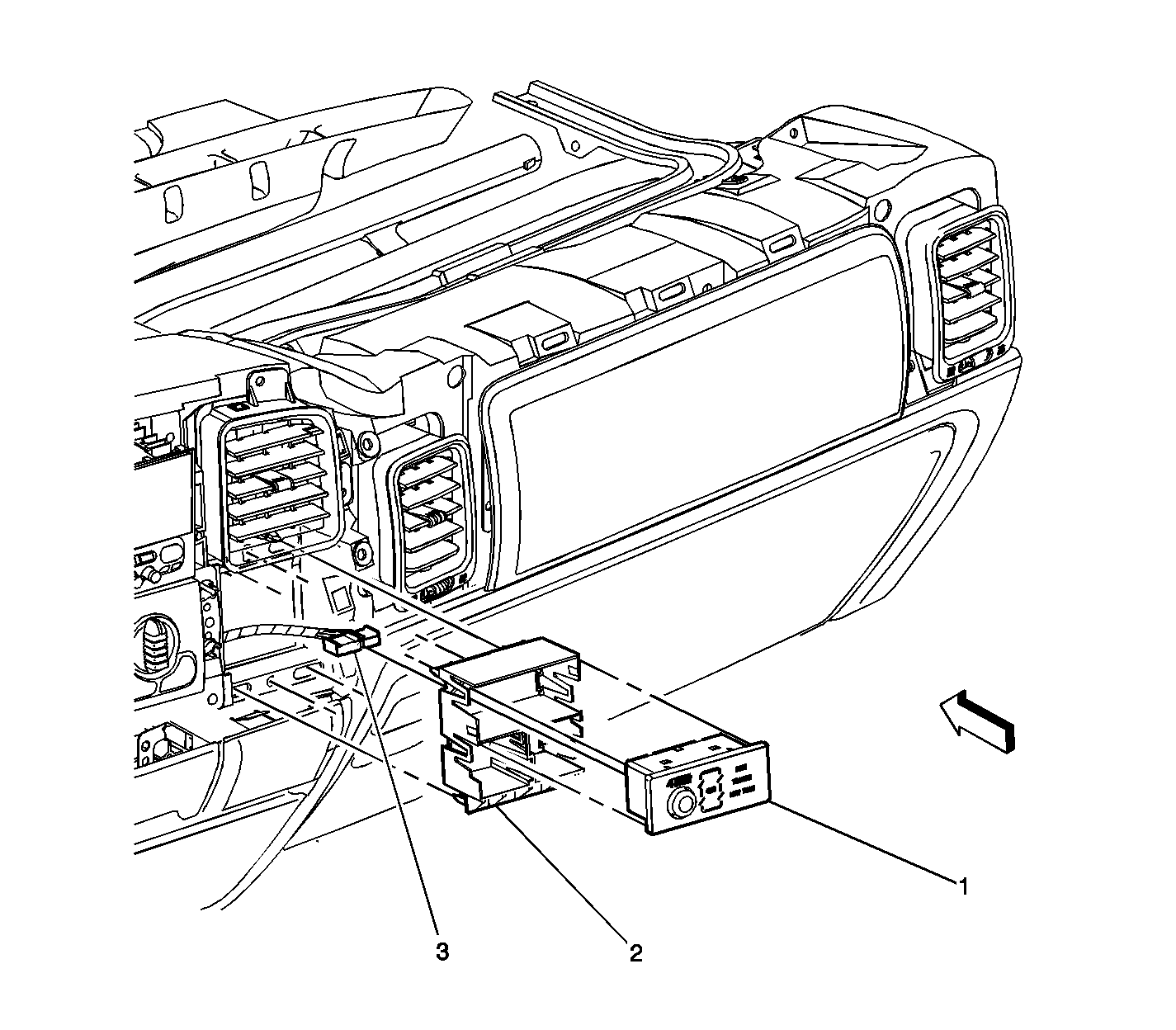

Figure 5:


(1)	Rear Wheel Steering Mode Select Switch
(2)	Switch Housing
(3)	Switch Electrical Connector
