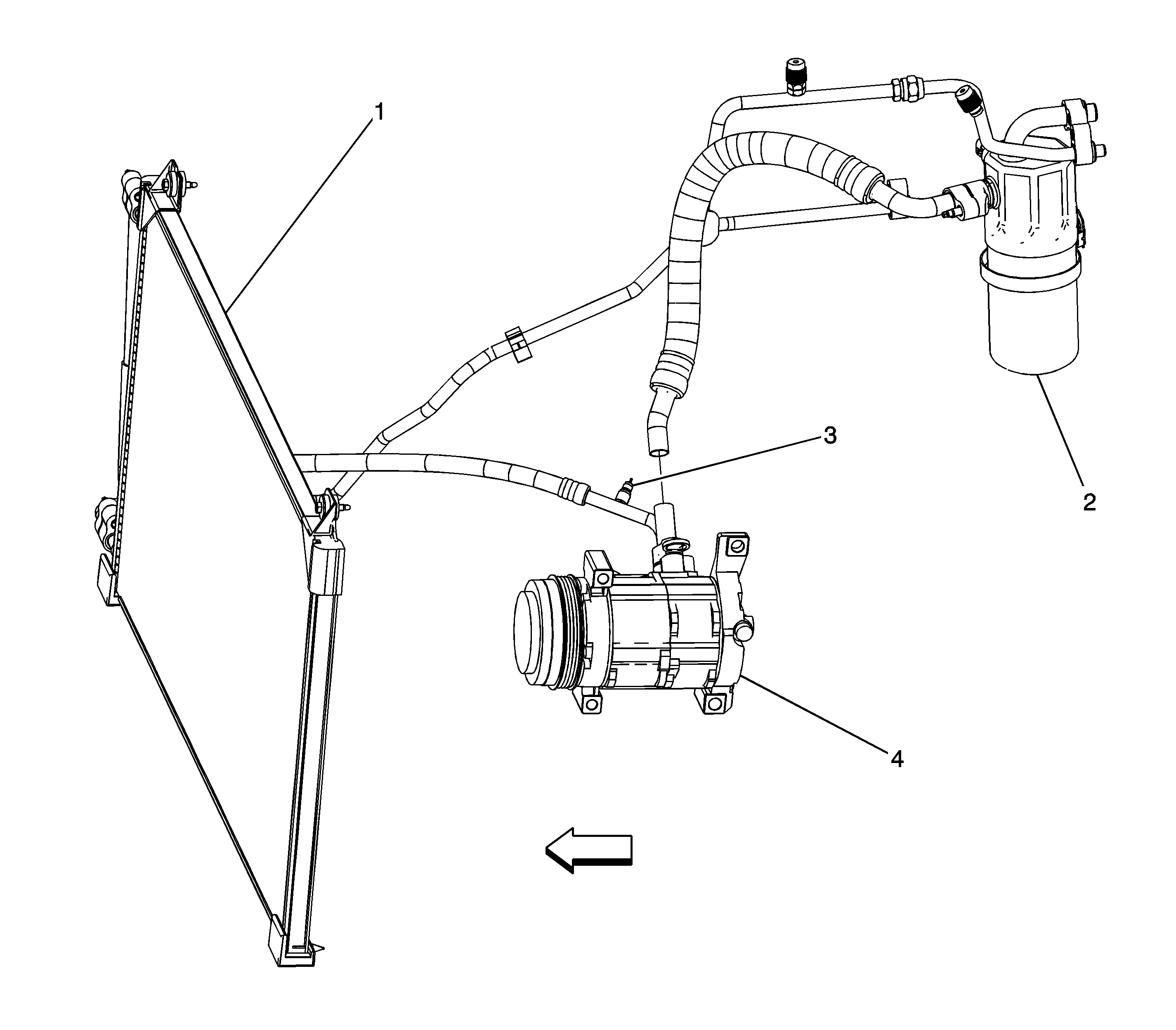

| Figure 1: |
A/C Low Pressure Switch and A/C Accumulator
|
| Figure 2: |
A/C Compressor Clutch - 4.3L
|

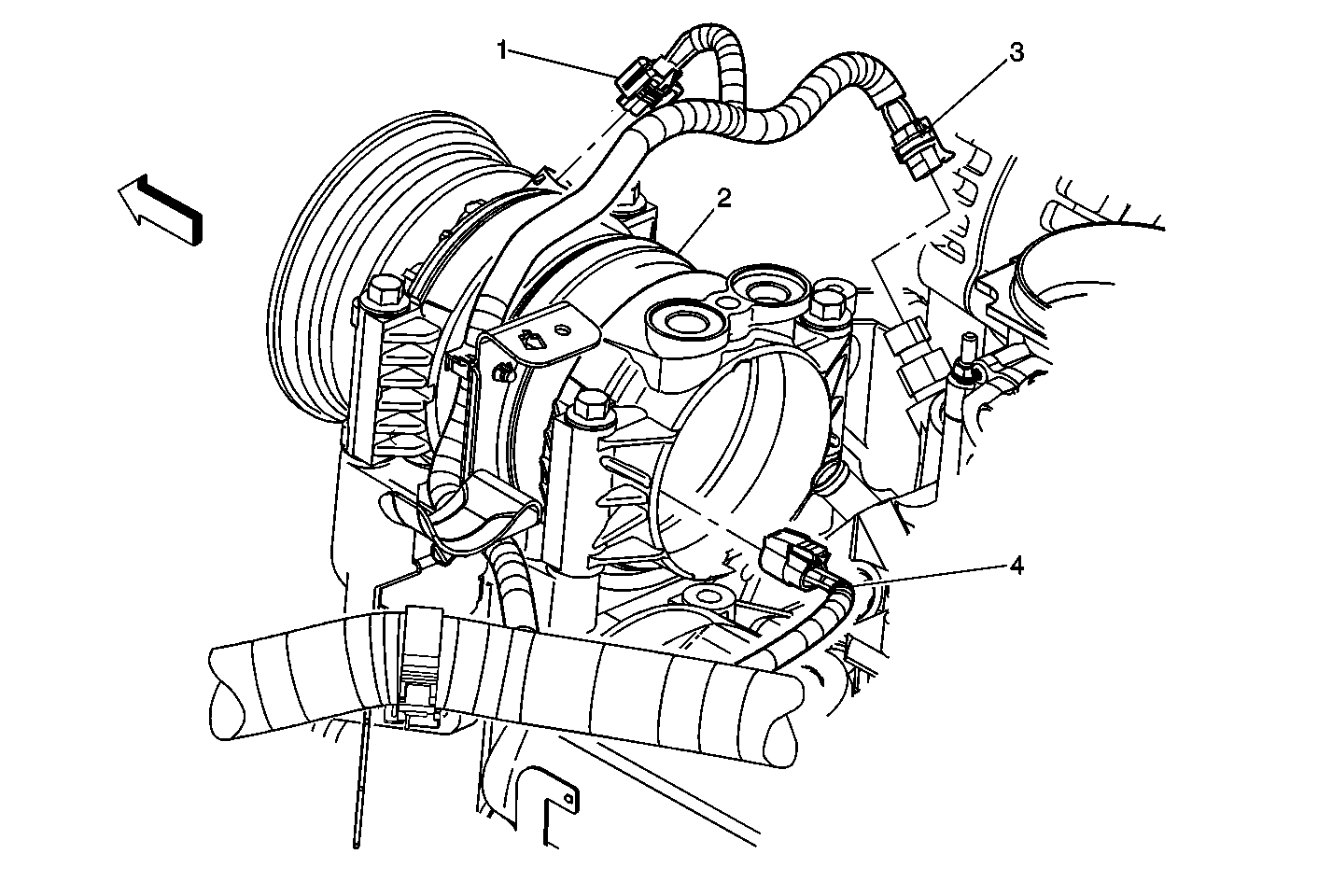

| Figure 3: |
A/C Compressor Clutch -4.8L, 5.3L, 6.0L
|
| Figure 4: |
LF of Engine Compartment
|
| Figure 5: |
Air Temperature Sensors - Upper Left and Right
|

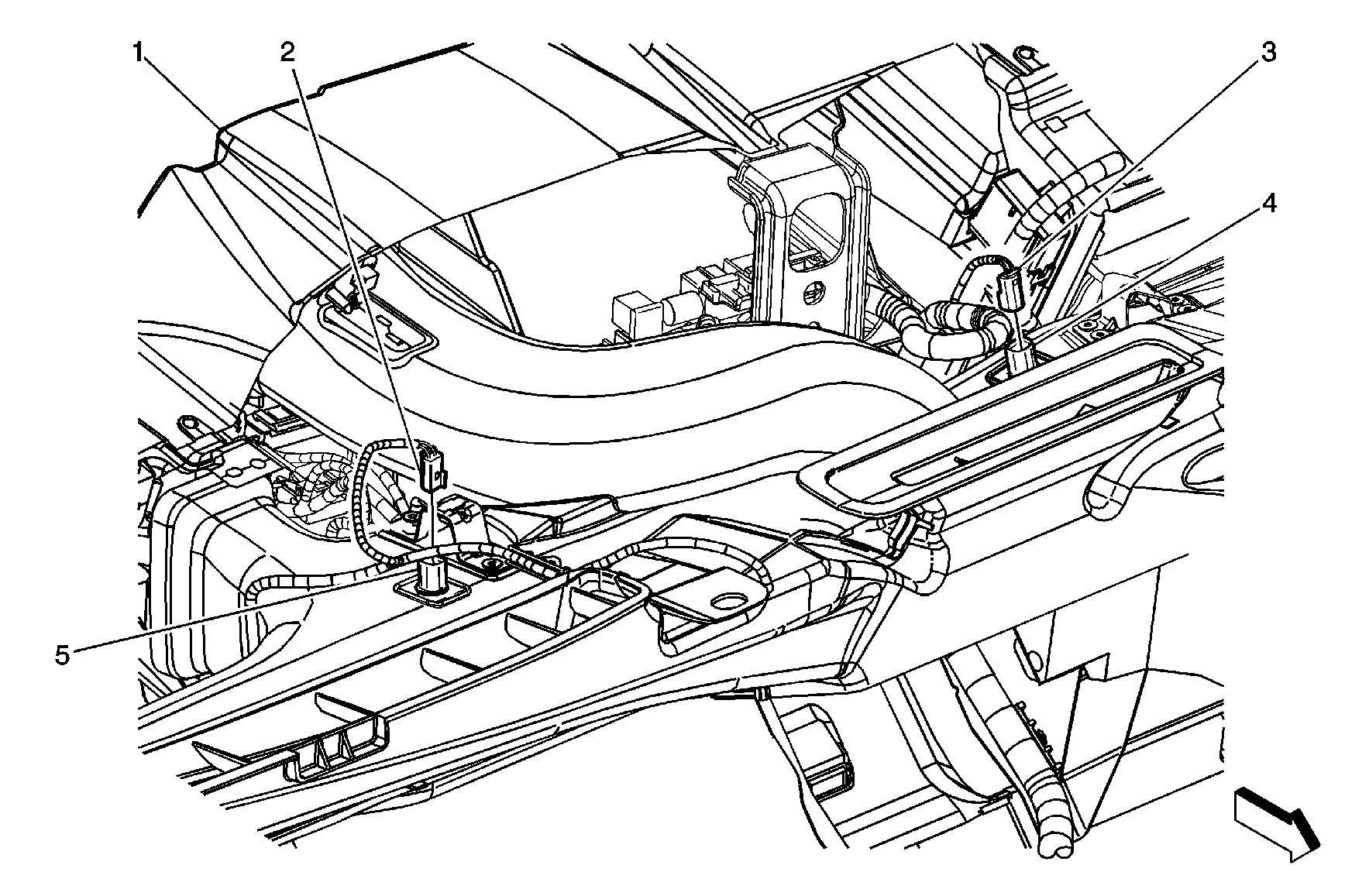

| Figure 6: |
Air Temperature Sensor - Lower Left
|

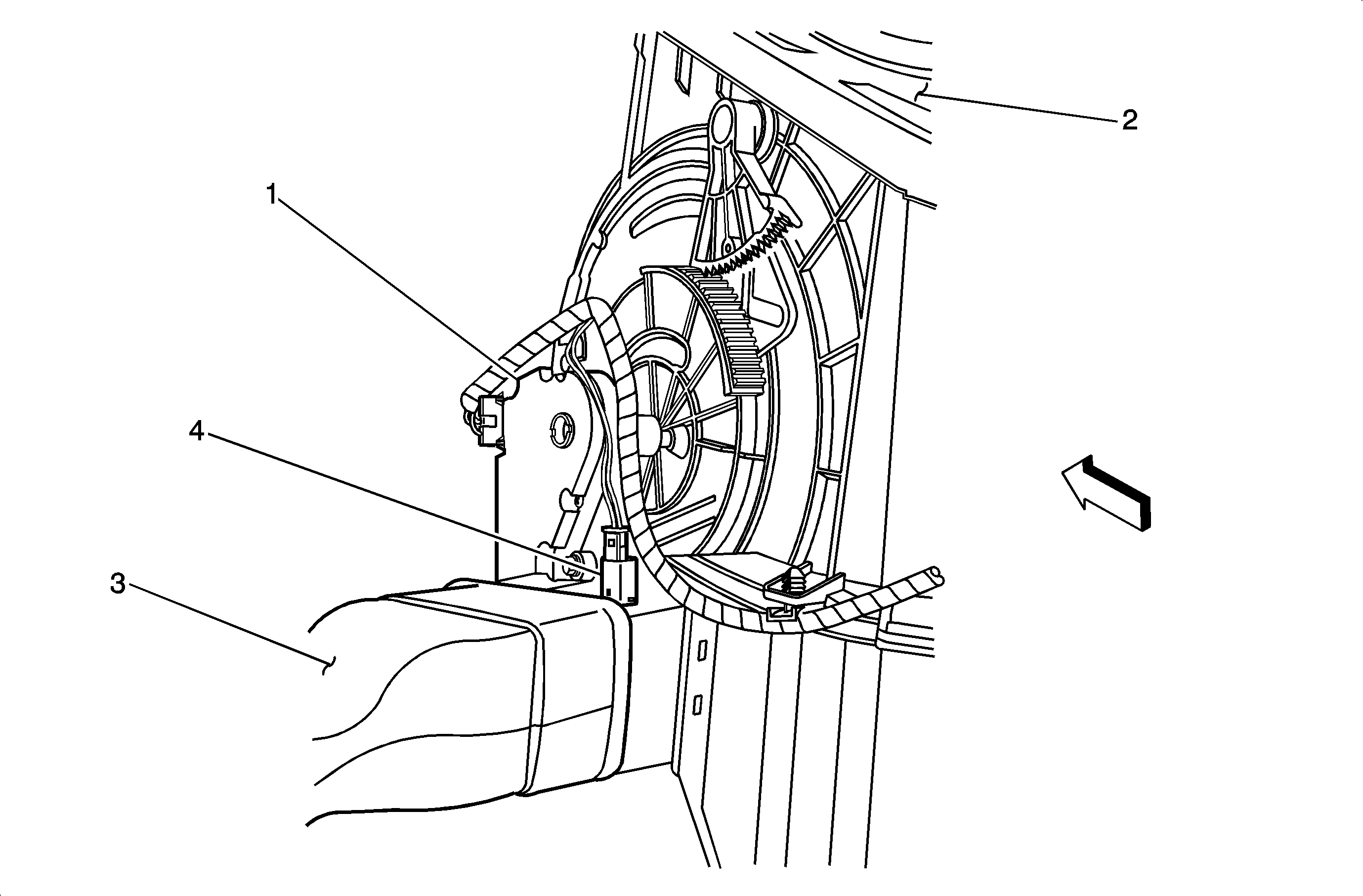

| Figure 7: |
Air Temperature Sensor - Lower Right
|
| Figure 8: |
Air Temperature Sensor - Upper Auxiliary
|
| Figure 9: |
Ambient Air Temperature Sensor
|
| Figure 10: |
HVAC Control Module
|
| Figure 11: |
HVAC Module Assembly - Top
|
| Figure 12: |
HVAC Module Assembly - Bottom
|

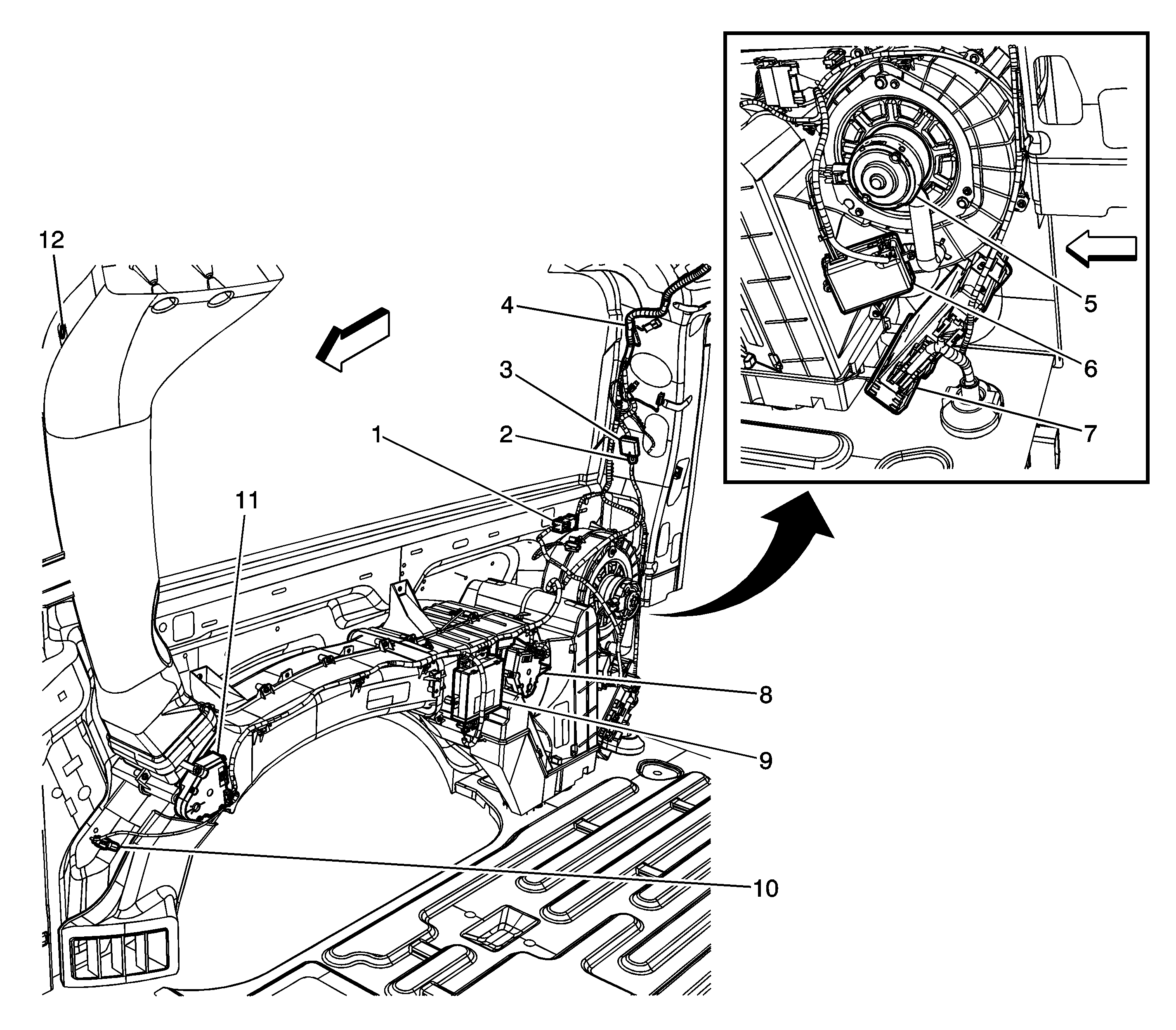

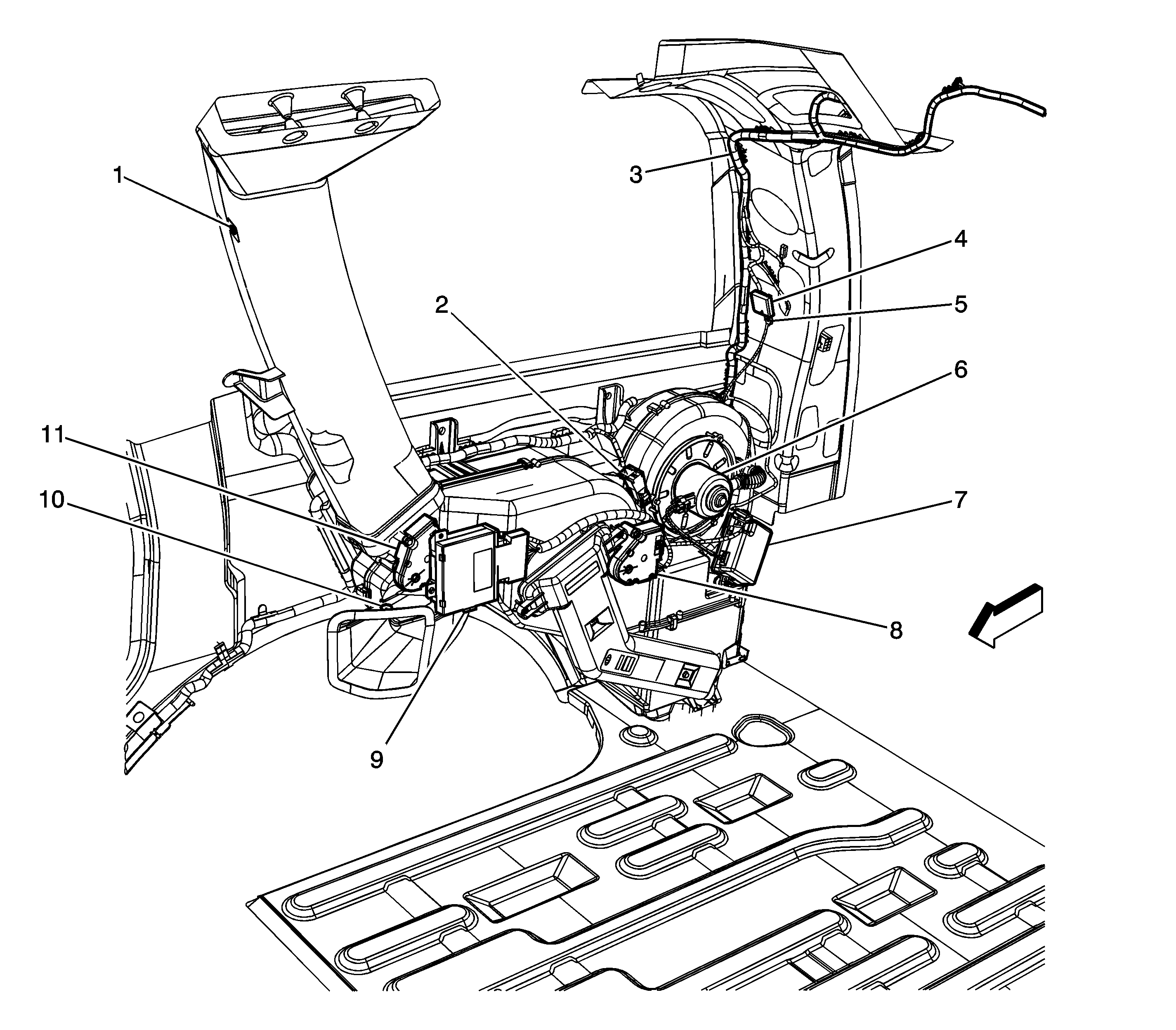

| Figure 13: |
Right Rear of Cargo Area (Auto HVAC Short Wheelbase)
|
| Figure 14: |
Right Rear of Cargo Area (Auto HVAC Long Wheelbase)
|

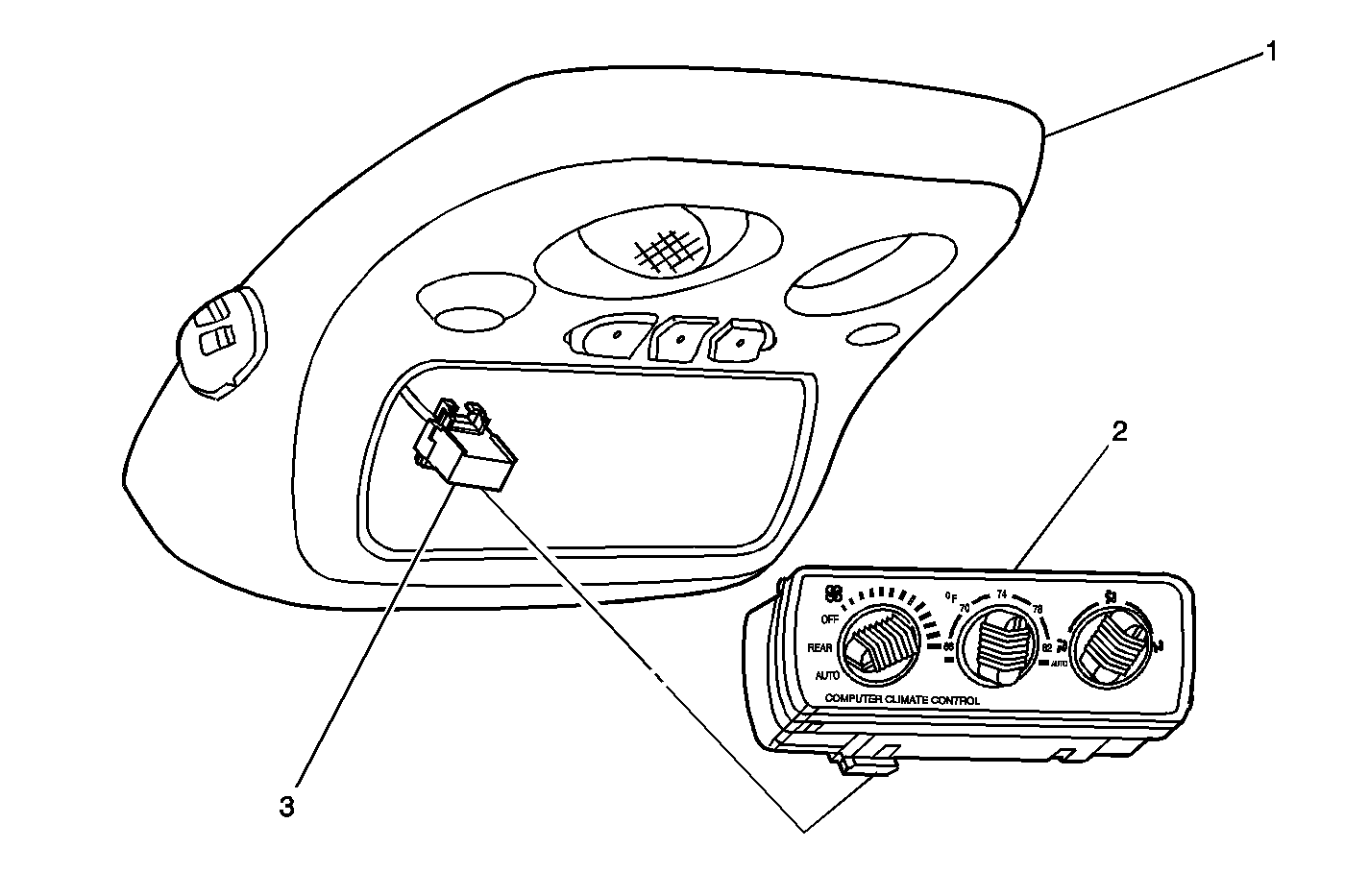

| Figure 15: |
Overhead Console
|
| Figure 16: |
Sunload Sensor Assembly
|
