SIR Schematics. Chevrolet Tahoe - 2WD 2004

GM Service Manual Online

For 1990-2009 cars

Makes 🢒 Chevrolet 🢒 2004 🢒 Tahoe - 2WD 🢒 Restraints 🢒 SIR 🢒 SIR Schematics

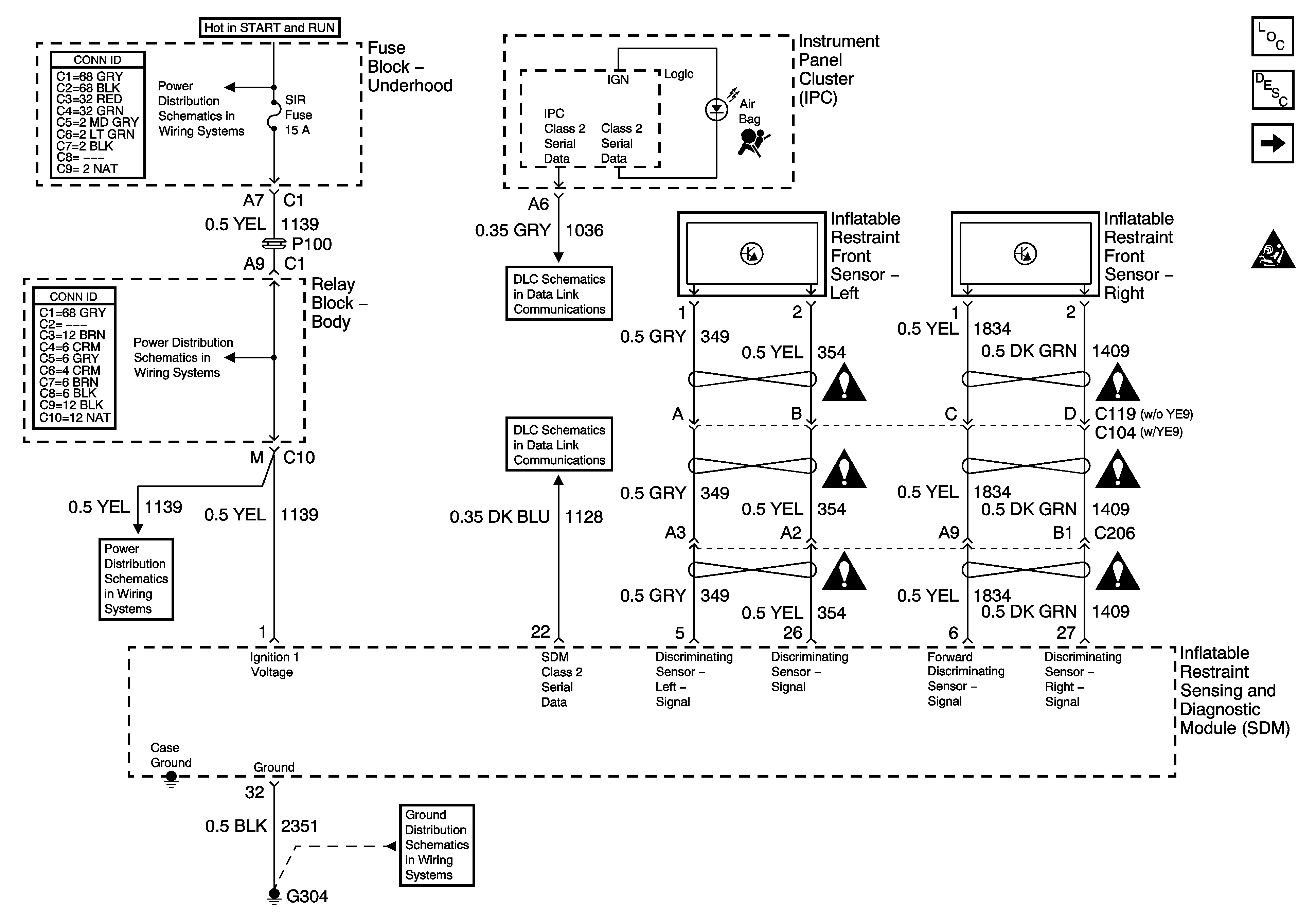

Figure 1:	Power, Ground, Serial Data, and Front Impact Sensors Master Electrical Component List SIR System Description and Operation Driver and Passenger Airbags Ignition Switch - ACC/RUN/START, ACC/RUN, and RUN/START Bus Bars LH HID, RH HID, PCM B, CRANK, HORN, SIR Fuses LH HID, RH HID, PCM B, CRANK, HORN, SIR Fuses G304, G305 SP205 - 1 of 2 SP206 SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons
Figure 2:	Driver and Passenger Air Bags Master Electrical Component List SIR System Description and Operation Side Impact Sensors and Airbags Power, Ground, Serial Data, and Front Impact Sensors SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons

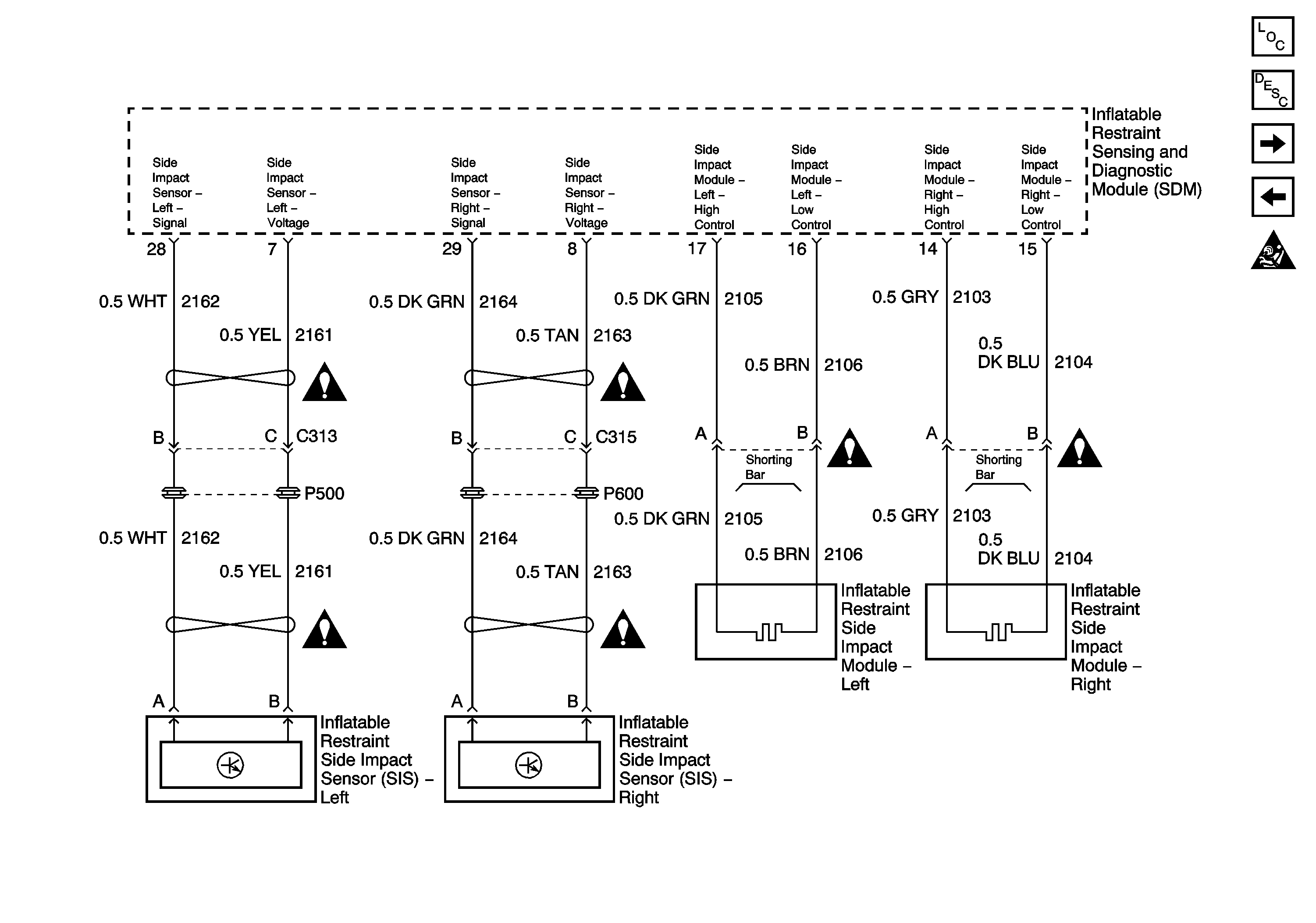

Figure 3:	Side Impact Sensors and Air Bags Master Electrical Component List SIR System Description and Operation Seat Position Switches Driver and Passenger Airbags SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons SIR Schematic Icons

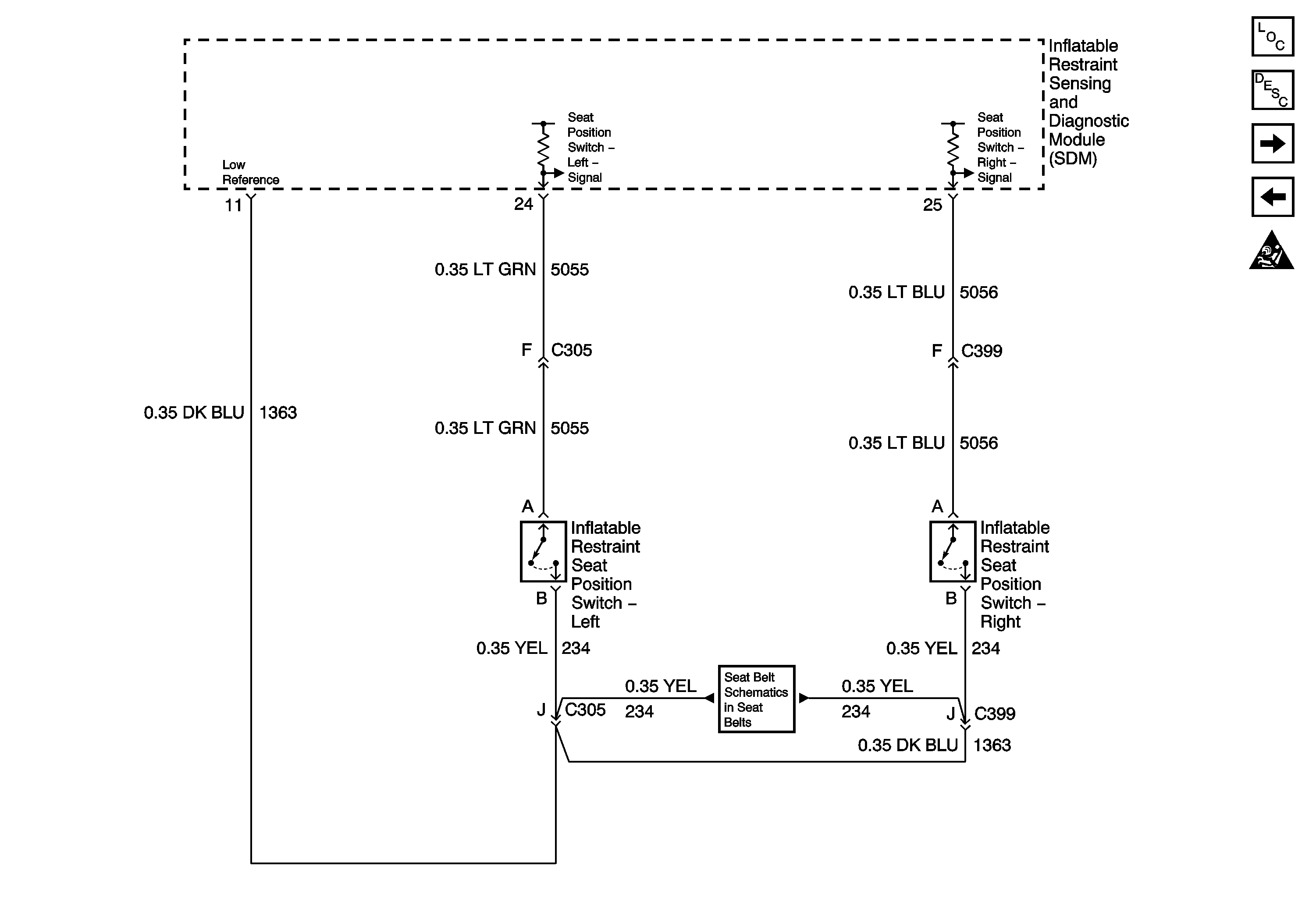

Figure 4:	Seat Position Switches Master Electrical Component List SIR System Description and Operation Passenger Presence Schematics - 1 of 2 Side Impact Sensors and Airbags SIR Schematic Icons Seat Belt Schematics

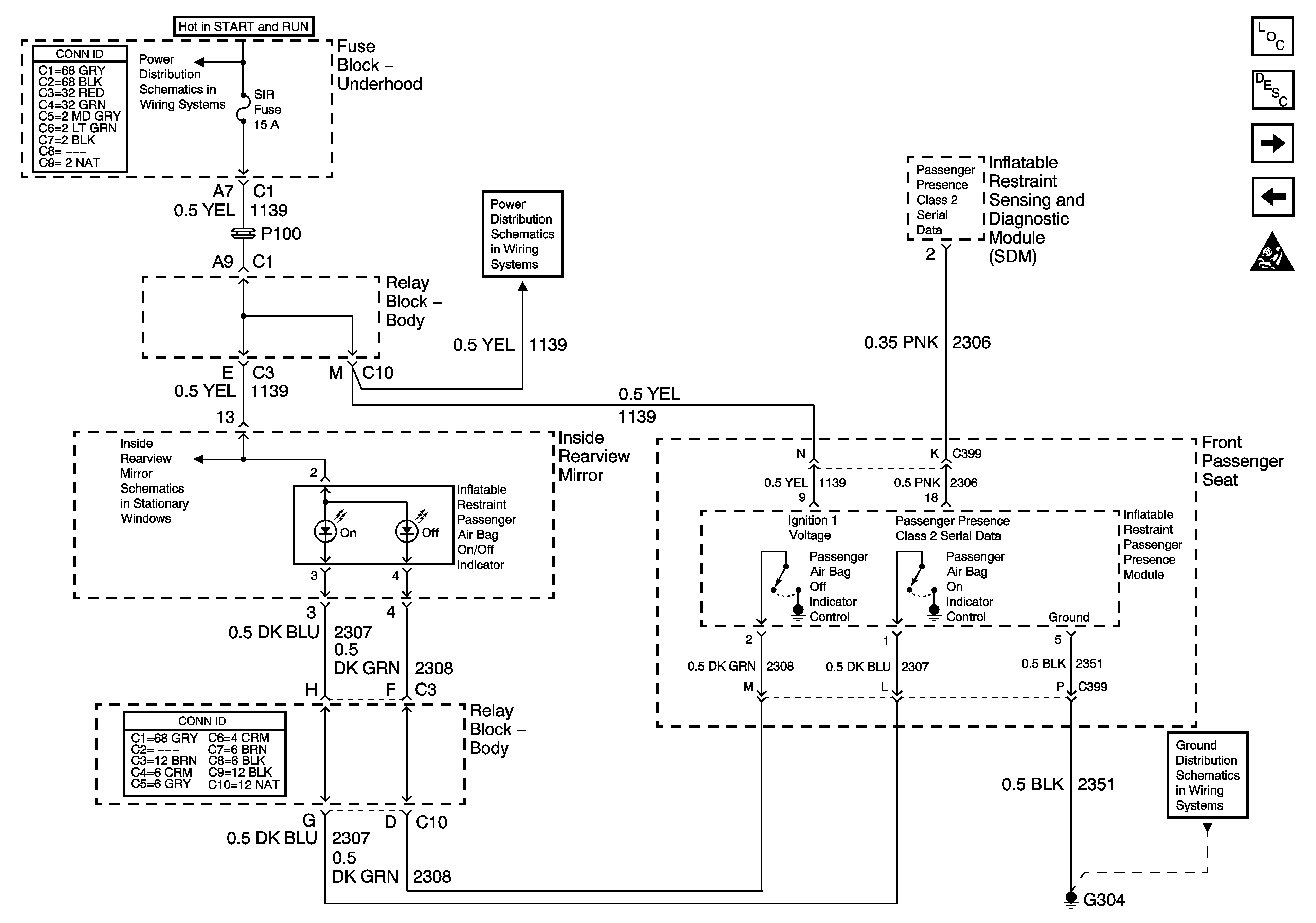

Figure 5:	Passenger Presence Schematics - 1 of 2 Master Electrical Component List SIR System Description and Operation Passenger Presence Schematics - 2 of 2 Seat Position Switches Ignition Switch - ACC/RUN/START, ACC/RUN, and RUN/START Bus Bars LH HID, RH HID, PCM B, CRANK, HORN, SIR Fuses Power, Outside Air Temp, and Light Sensors G304, G305
Figure 6:	Passenger Presence Schematics - 2 of 2 Master Electrical Component List SIR System Description and Operation Passenger Presence Schematics - 1 of 2 SIR Schematic Icons
