Power Door Systems Component Views. Chevrolet Tahoe

For 1990-2009 cars

Makes 🢒 Chevrolet 🢒 2004 🢒 Tahoe - 4WD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E/4L65-E 🢒 Power Door Systems Component Views

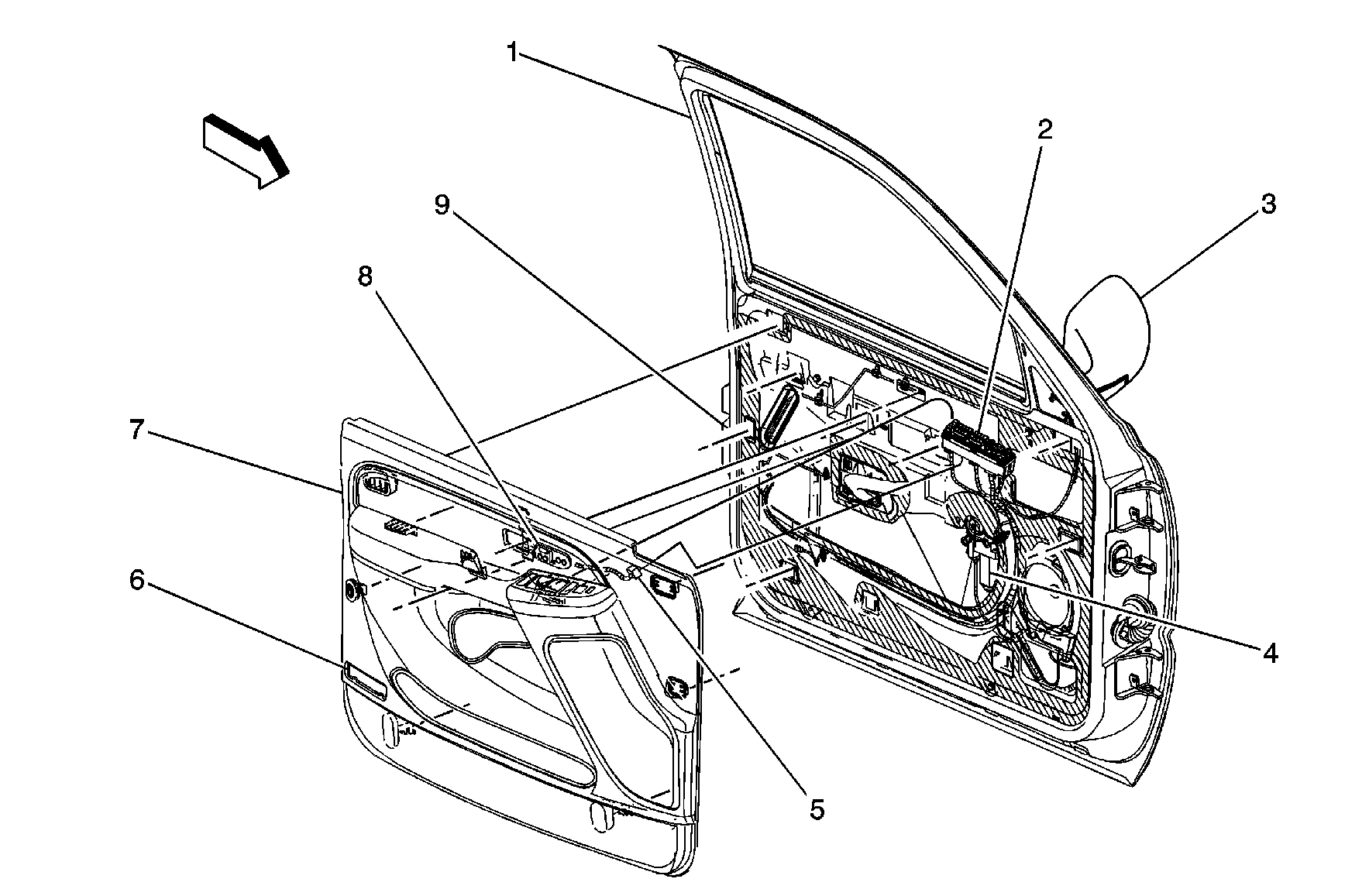

Figure 1:


(1)	Driver Door
(2)	Driver Door Module (DDM)
(3)	Outside Rearview Mirror - Driver
(4)	Window Motor - Driver
(5)	Memory/Heated Seat Switch Connector
(6)	Door Courtesy Lamp - Left Front
(7)	Driver Door Panel
(8)	Memory/Heated Seat Switch
(9)	Mini Wedge (Door Jamb Switch) - Driver

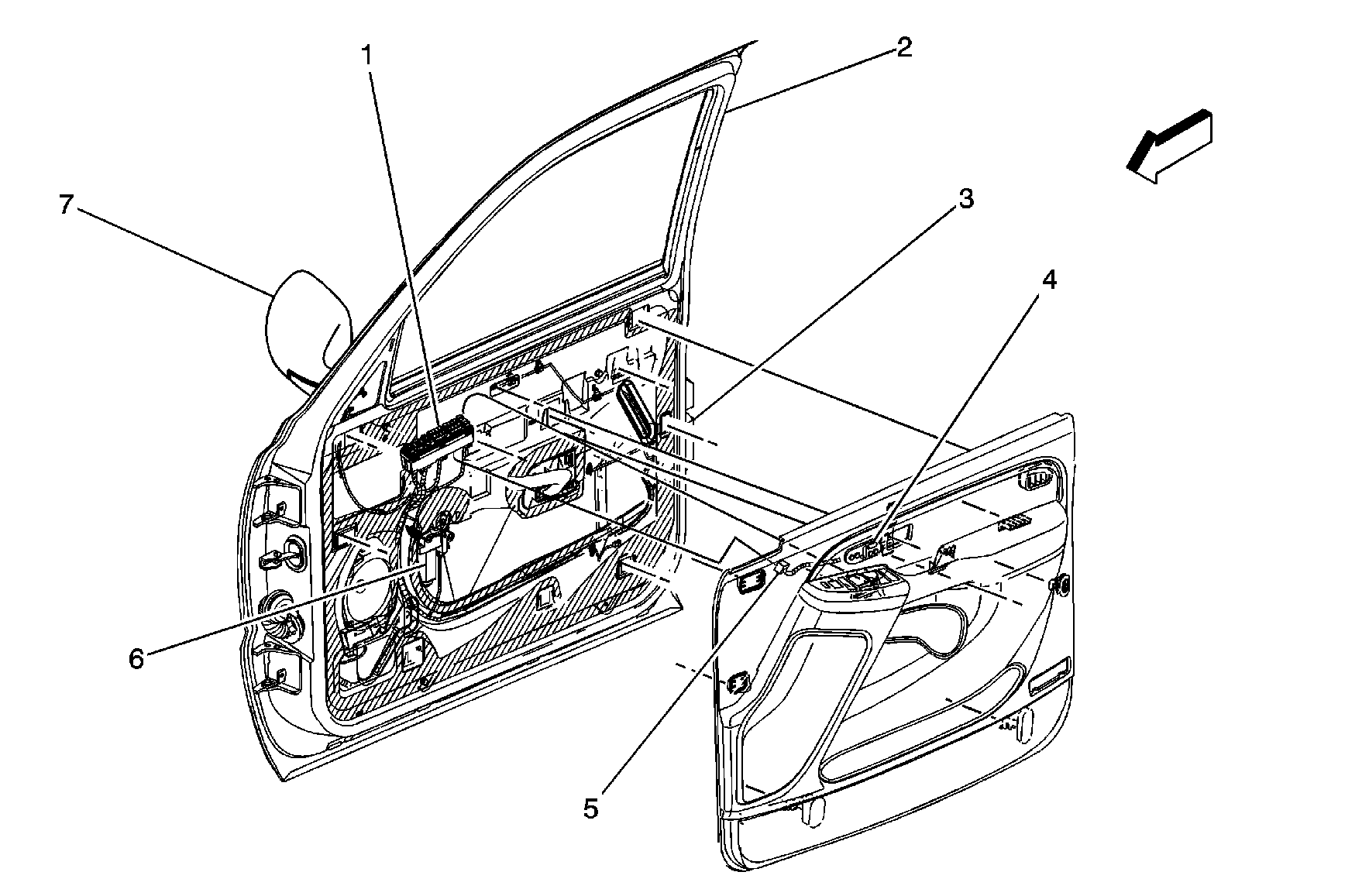

Figure 2:


(1)	Front Passenger Door Module (FPDM)
(2)	Front Passenger Door
(3)	Mini Wedge (Door Jamb Switch) - Front Passenger
(4)	Heated Seat Switch - Front Passenger
(5)	Heated Seat Switch Connector
(6)	Window Motor - Front Passenger
(7)	Outside Rearview Mirror - Front Passenger

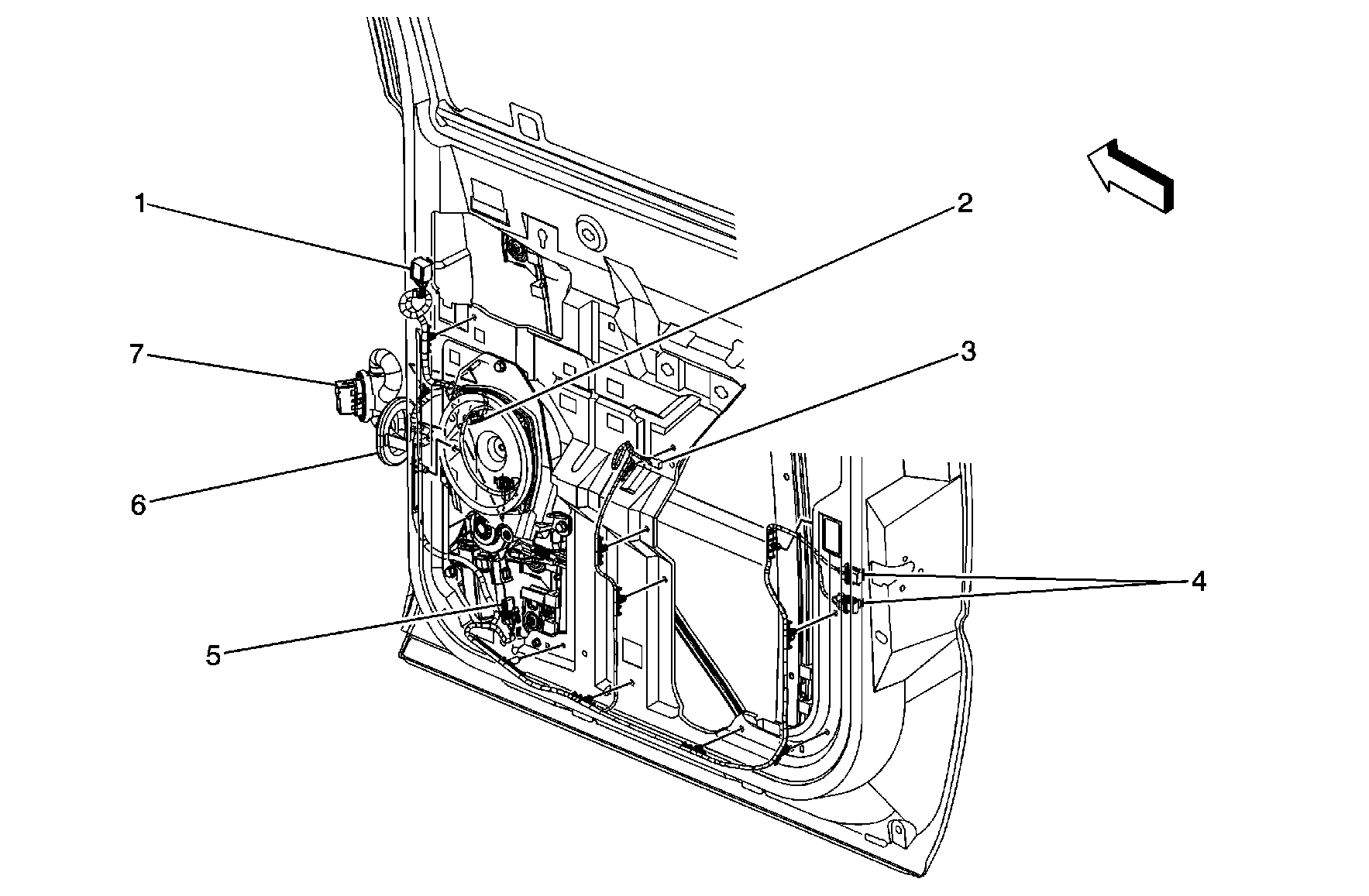

Figure 3:


(1)	Speaker - LR Door
(2)	Window Switch Connector - LR
(3)	C310
(4)	P700
(5)	Window Motor - LR
(6)	Mini Wedge (Door Jamb Switch) Connectors - LR
(7)	Door Courtesy Lamp Connector - LR

Figure 4:


(1)	Rear Window Wiper Module
(2)	Liftglass Ajar Switch
(3)	Door Lock Actuator - Liftgate
(4)	Liftgate Ajar Switch - Left Connector
(5)	Liftgate
(6)	Liftgate Ajar Switch - Right Connector

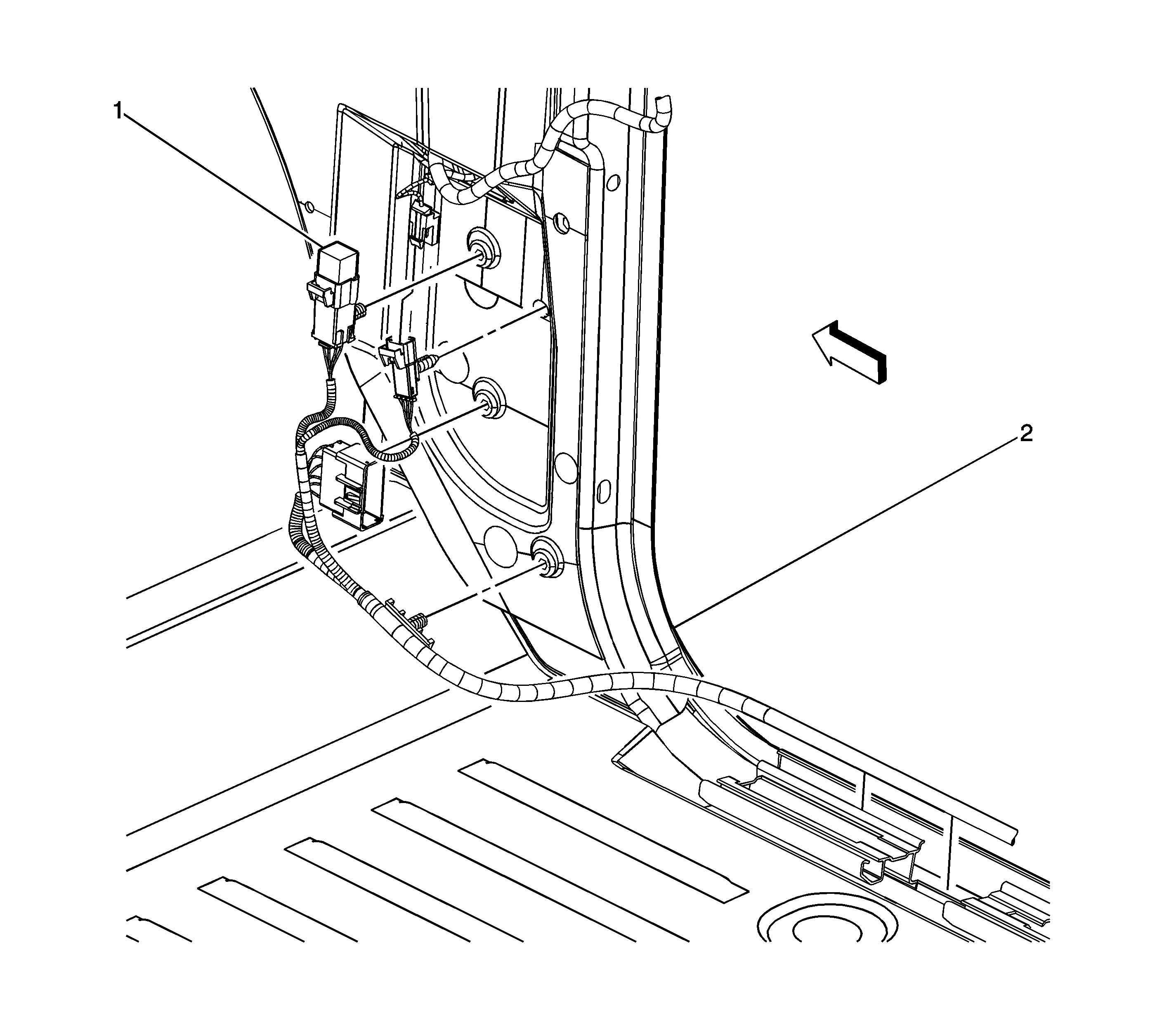

Figure 5:


(1)	Liftgate Lock Relay
(2)	Passenger B-Pillar

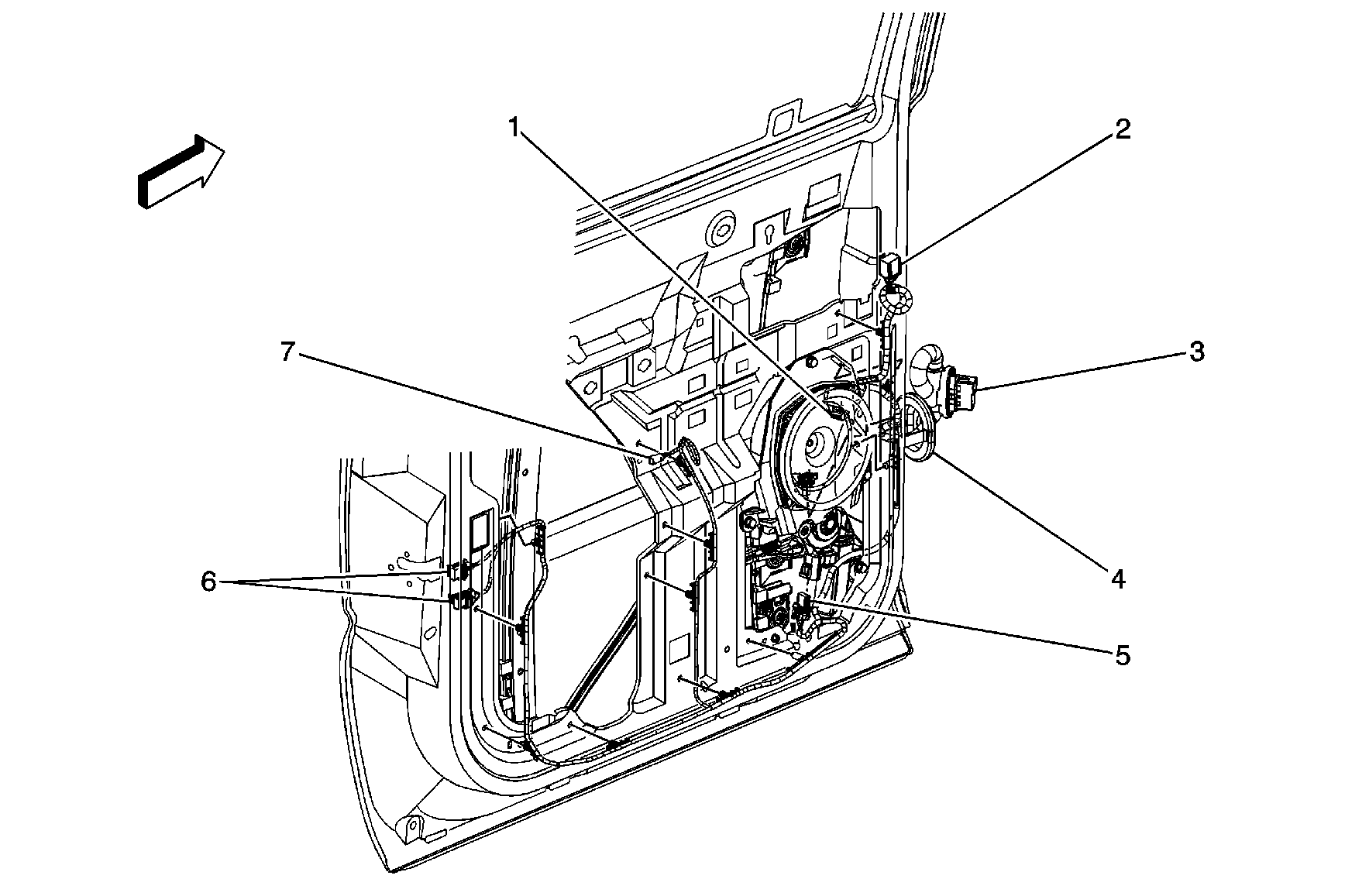

Figure 6:


(1)	Window Switch Connector - RR
(2)	Speaker - RR Door
(3)	Door Courtesy Lamp Connector - RR
(4)	Mini Wedge (Door Jamb Switch) Connectors - RR
(5)	Window Motor - RR
(6)	P800
(7)	C396

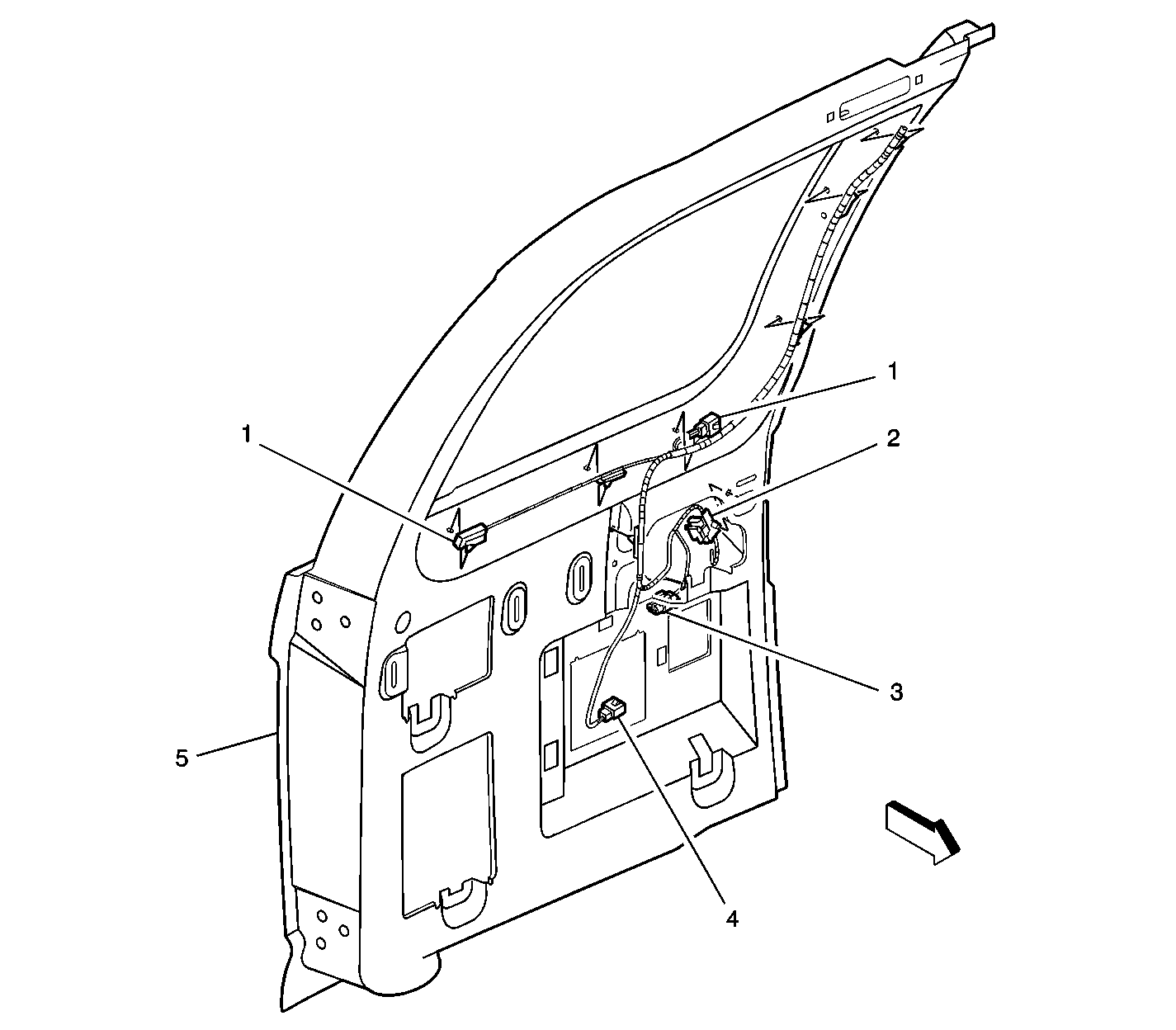

Figure 7:


(1)	Rear Defog Connector
(2)	Rear Door Upper Latch
(3)	Rear Door Lock Cylinder Connector
(4)	Rear Door Lock Actuator Connector
(5)	Rear Door Inner Panel

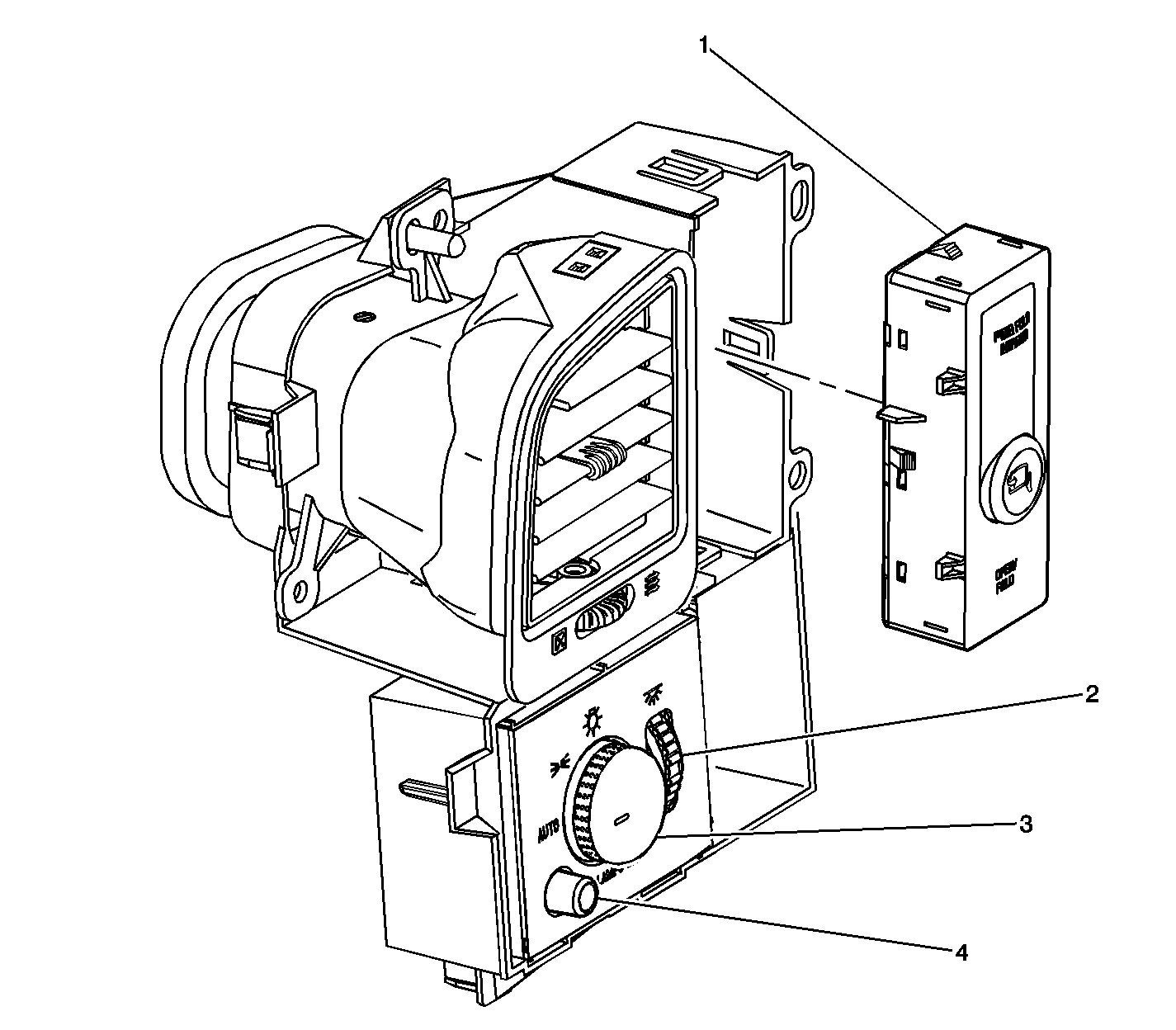

Figure 8:
