| Table 1: | Fog/Rear Wiper Switch |
| Table 2: | Rear Window Washer Fluid Pump |
| Table 3: | Rear Window Wiper Module |
| Table 4: | Turn Signal Multifunction Switch - C3 (Wiper Switch) |
| Table 5: | Washer Fluid Level Sensor |
| Table 6: | Windshield Washer Fluid Pump |
| Table 7: | Windshield Wiper Motor Module |
| |||||||
|---|---|---|---|---|---|---|---|

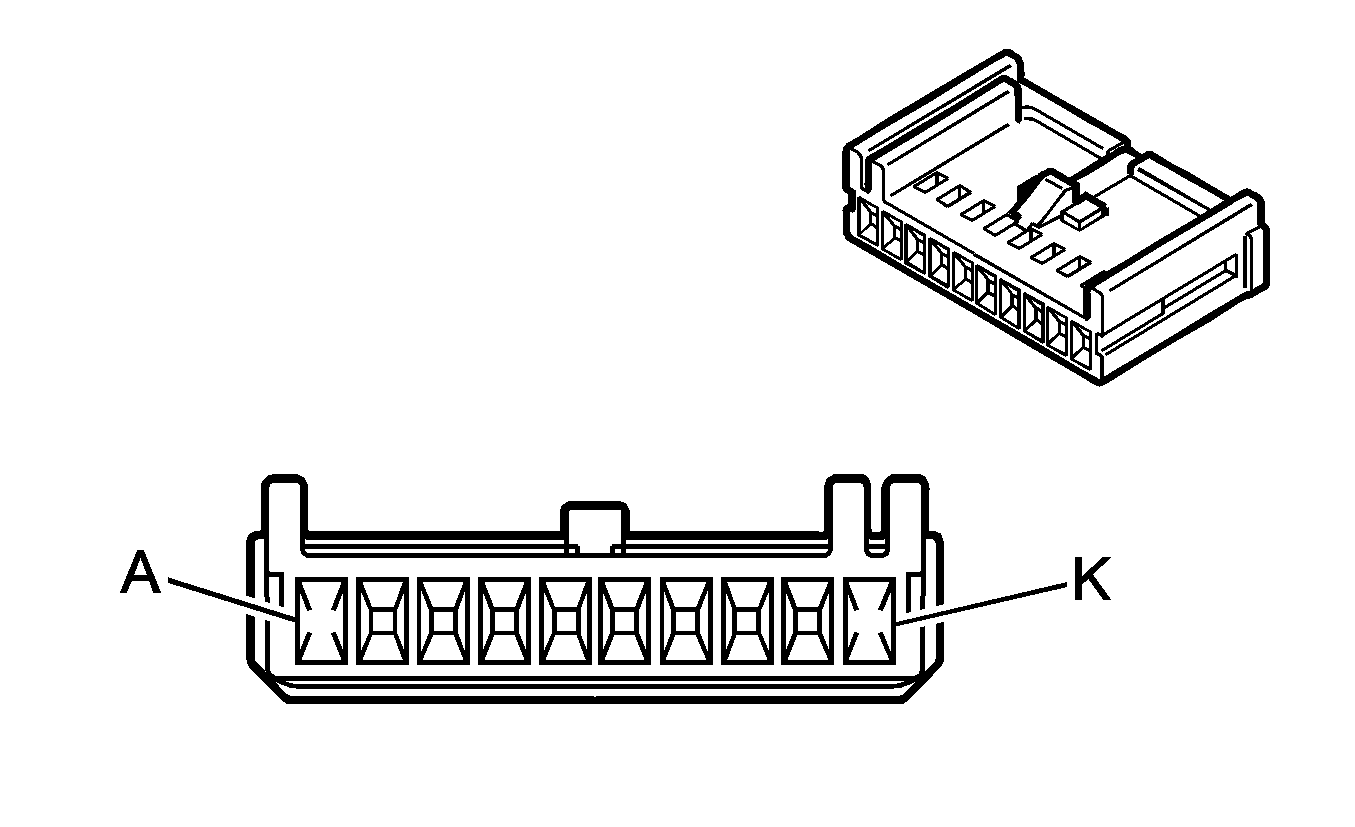

Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | PPL/WHT | 1382 | LED Dimming Supply | ||||
B | DK GRN/ WHT | 1317 | Fog Lamp Relay Control (w/T96) | ||||
C | ORN | 192 | Front Fog Lamp Switch Signal (w/T96) | ||||
D | BLK/WHT | 1851 | Ground (w/T96) | ||||
E | BRN/WHT | 230 | Instrument Panel Lamps Dimming Control (w/T96) | ||||
F | GRY | 391 | Rear Window Wiper Switch Signal | ||||
G | YEL | 343 | Accessory Voltage | ||||
H | DK GRN/ WHT | 266 | Rear Window Washer Pump Supply Voltage | ||||
J | DK GRN | 392 | Rear Window Washer Pump Control | ||||
K | -- | -- | Not Used | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | BLK | 150 | Ground | ||||
B | DK GRN/ WHT | 266 | Rear Window Washer Pump Supply Voltage | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | PNK/BLK | 1303 | Liftgate Ajar Switch Signal | ||||
B | ORN | 2040 | Battery Positive Voltage | ||||
C | GRY | 391 | Rear Window Wiper Switch Signal | ||||
D | DK GRN | 392 | Rear Window Washer Pump Control | ||||
E | BLK | 1450 | Ground | ||||
| |||||||
|---|---|---|---|---|---|---|---|

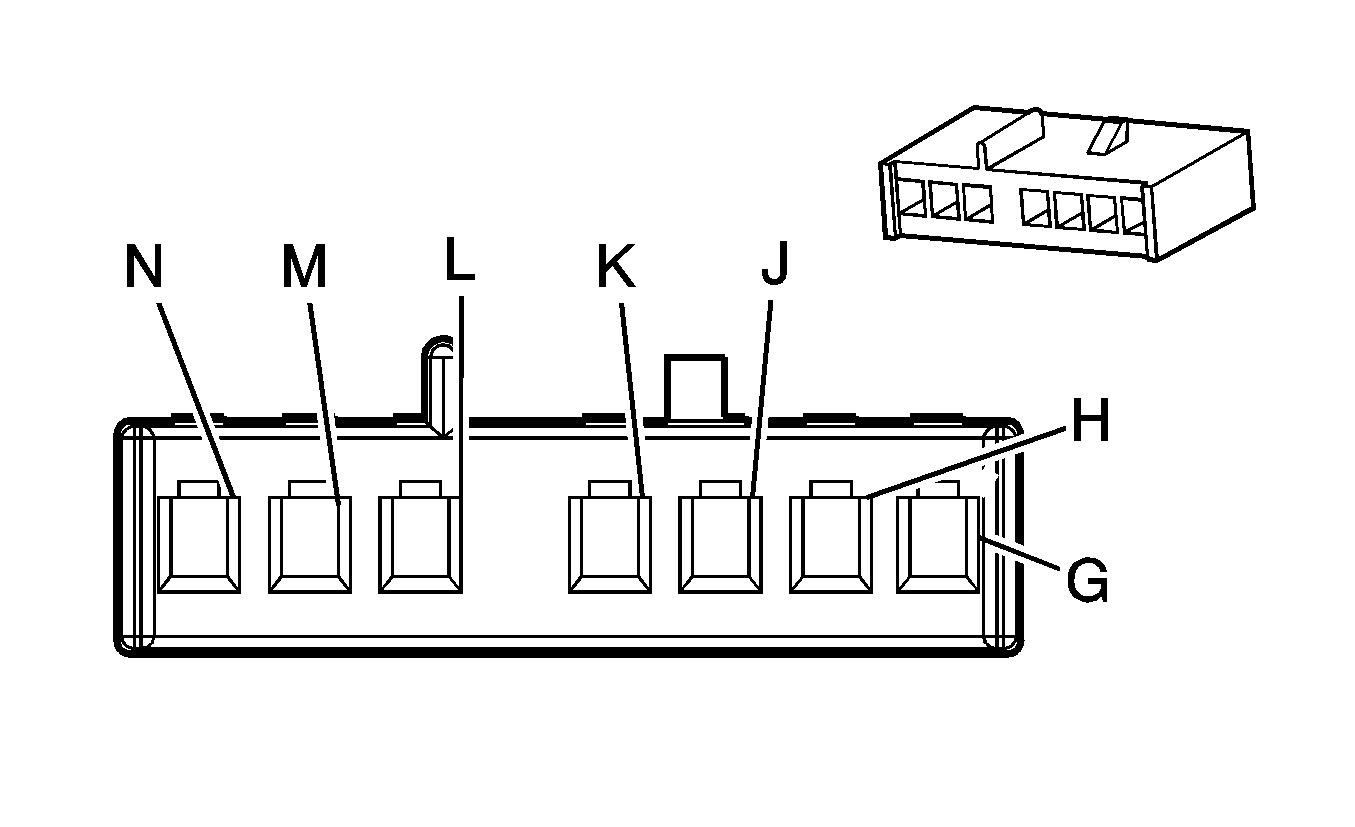

Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
G | -- | -- | Not Used | ||||
H | PNK | 94 | Windshield Wiper Switch Signal 1 | ||||
J | GRY | 478 | Windshield Wiper Switch Supply Voltage | ||||
K | DK BLU | 477 | Windshield Wiper Switch High Signal | ||||
L-N | -- | -- | Not Used | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | BLK/WHT | 174 | Low Washer Fluid Indicator Signal | ||||
B | BLK | 150 | Ground | ||||
|
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | RED | 228 | Windshield Washer Pump Control | ||||
B | BLK | 150 | Ground | ||||
| |||||||
|---|---|---|---|---|---|---|---|

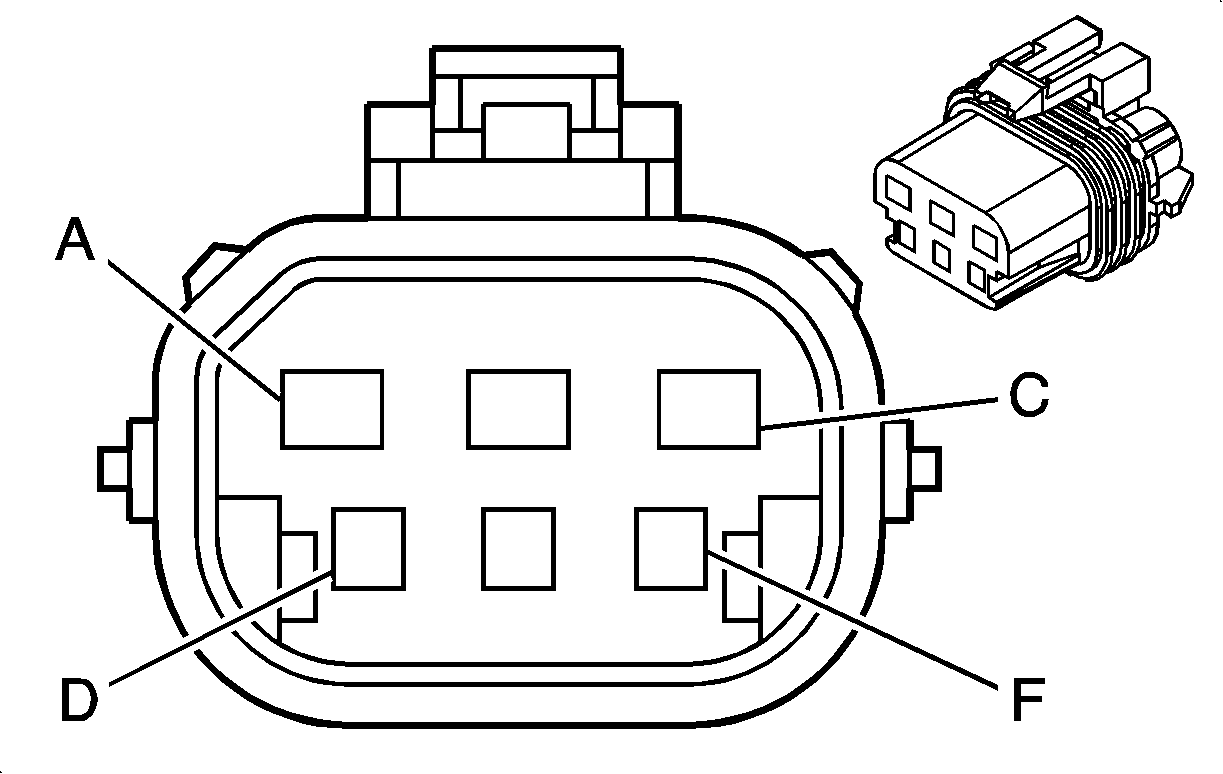

Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | BLK | 1050 | Ground | ||||
B | YEL | 143 | Accessory Voltage | ||||
C | DK BLU | 477 | Windshield Wiper Switch High Signal | ||||
D | PNK | 94 | Windshield Wiper Swtich Signal | ||||
E | ORN | 2268 | Windshield Washer Relay Control | ||||
F | GRY | 478 | Windshield Wiper Switch Supply Voltage | ||||
